Product Details
Product Description
Product Description
Features:

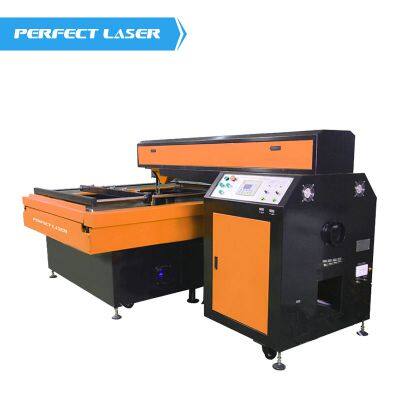

1. Adopt automatic following and focusing system,and it can automatically senses the distance from cutting head to die board surface and adjust the focus distance to keep a good cutting quality.
2. The die cutting machine also can be called plywood cutting machine.It is for die board install 2pcs Chinese Top Quality 150W CO2 laser tube, the watt is 1/10 of larger power cutting machine, low power consumption.
3. Advanced double laser heads coaxial cutting technology, which makes the plywood cutting machine can cut both sides of the die board in the same axle, enhance the whole process efficiency.
4. Germany Imported ball screw rod and Taiwan linear guide rail, matched 2D accurate working table insure the high stability of the cutting performance.
5. Tempering heat treated lathe bed, which isn’t easy to be deformed.
6. The thickness of 15MM, 18MM, 20MM, 25MM die-board can be cut arbitrary width by the plywood cutting machine, such as 0.45, 0.71, 1.05, 1.42 etc. Kerf uniform, consistent from top to bottom seam. Once turned on, the machine can work without waiting time.
7. The wooden die board laser cutting directly with compressed air, and the plywood cutting machine doesn't need to buy any other inactive gas, greatly lowered the users operation cost.
8. Adopt profession software, which is particularly designed for die cutting machine, with high compatibility, support any computer operating system.
9. Easy Operation, Stable performance and applicable for nonmetal processing industry.
Technical Data:
Model
| PEC-1215
|
|
|
Cutting Table Size
| 1200×1500mm
|
|
|
Laser Type
| CO2 Glass Laser Tube
|
Lifetime of Laser Tube
| W8:≥10000 Hours
W6:>15000 Hours
|
Cooling Mode
| Water Cooling and Protection System
|
Cutting Speed
| 0-6000mm/min
|
Repeated Position Precision
| ±0.01mm
|
Maximum Cutting Depth
| 22mm
|
Cutting Width
| 0.35mm - 0.75mm Adjustable
>0.75mm Adjustable
|
Support Format
| HPGI,PLT,AI,DXF etc.
|
Controlling Software
| Hangzhou Times
|
Fixture Type
| Pneumatic
|
Compatible Software
| Core Draw,Auto CAD,Photoshop
|
Driving System
| Standard:Domestic Motor
Optional:Japan Panasonic Servo Motor and Drive
|
Machine Power
| ≥7000W
|
Working Voltage
| AC 220V(+/10%)50-60Hz
|
Operating Temperature
| 0-45℃
|
Operating Humidity
| 5-95%
|
>>
