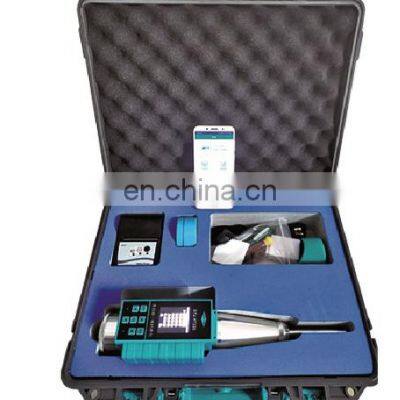

Product Usage and FeaturesHT225S Integrated Concrete test hammerUSAGE OVERVIEW GTJ-HT225S automatic integrated rebound hammer is used for non-destructive testing and evaluation of the compressive strength of hardened concrete in building structures.The parameters such as carbonization depth value, bounce angle, bounce test surface, and whether to pump or not can be set according to on-site inspection conditions. After the test is completed, the strength estimation result of the component can be given immediately.ParametersModelGTJ-HT225SensorMOS image sensorPhone APP languageEnglish/ChinesePhone5 inch Android system (optional)Print functionSupports micro bluetooth printer (optional)Data Acquisition TerminalInput modeAutomatically record rebound valueData processingAutomatic date vevision, calculation and analysisDisplay modeLCDSystem capacity200,000 Measuring pointsPower modeRechargeable large capacity lithium batteryWolume123*55*25mmWeight200gMechanical Rebound TesterRange of strength measurement10~60 MpaNominal kinetic energy2.207JStiffness of spring strike7.84N/cmHammer stroke75mmIndicative Consistency error＜0.5Calibrated rebound value of steel anvil80±2Volume55*55*270mmWeight1.1KGWorking environment requirementsTemperature: -10℃ ~ +40℃ Humidity： ＜90%RHPacking SpecificationMaterial: engineering plastic Volume:420*140*335mmWeight: 4.8KgsDetailed ImagesPRODUCT FEATURES:◎Mobile APP control;◎Instrument calibration can correct the deviation caused by temperature or environment;◎Special computer software for data analysis can quickly generate test reports;◎Portability: One-piece design, small size and easy to carry.◎Digitalization: The rebound value is displayed in two forms of numbers and pointers, and the displayed value is consistent.◎Convenience: Manage data according to components, estimate intensity, and record carbonization value on site.◎Automation: Parameters such as the number of test areas, test direction, pouring surface, and pumping can be set and modified. After a component is tested and calculated, it is automatically transferred to the next test area according to the same parameters, eliminating the need for on-site manual recording and improving Detection efficiency and timeliness.ApplicationContact USCangzhou Lovely Technology Co., Ltd.It is specialize in Nondestructive Test Instrument and Material Test Machine over 12 years. With advanced technologies and best customer service, our product has exported to over 100 countries and regions, which win favorable comments from customers worldwide.Our equipment is used throughout the world for testing soil, concrete, cement, asphalt and aggregate materials. This testing involves evaluations of materials, which are used in construction projects ranging from roads, bridges and tunnels to dams, earthworks, airports, railways, etc.We adhere to the high standards of product quality, strict requirements, adopting the world-class production equipment, advanced management and production experience, developing the high-quality testing equipment.We have has strong sales team and a comprehensive service process to serve end customers around the world.If you have any inquiry or concern,Sales and after service department will reply you within 24 hours.Our Customers and patent certificatePacking & DeliveryFAQQ1:Are you a factory or trading company?A:We are a factory specializing in testing equipment used for evaluating construction and civil engineering materials. We also deal with various related equipment based on customer's requirement.Q2:Where is the nearest loading port?A:Qingdao port or Tianjin port.Q3:What’s the MOQ of the product? A: One set.Q4:Did your factory pass the ISO 9001? A: YES.Q5:How long is the production cycle after ordering?A:Based on the order. Generally it is about 3-10 days.Q6:What is the payment method?A:T/T payment, West Union, L/C payment ect.Q7: Do you support customizing service?A: Yes, we could customize the out package, machine's color, Logo and Voltage as request. With more than 12 years' production experience. We would give you an excellent experience!
>>
