Expanded Polystyrene Insulation Block Machinery for Building Thermal Facade

Product Description

expanded polystyrene insulation block machinery for building thermal facade
Product Description

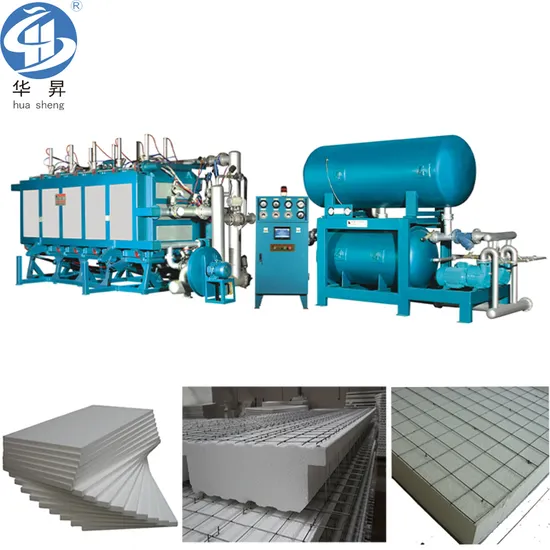

HS-ZB Series EPS block moulding machine main features:
The machine adopts PLC and touch screen for controlling the mould opening, mould closing, material feeding, steaming, temperature keeping, vacuum cooling, de-molding and ejecting; Adopts high-efficient vacuum system and condensate device to improve molding speed and reduce the moisture content. Vacuum supported machine is very efficient for making high-density and thick blocks; The machine is welded from high-quality profile steel, through heat treatment, ensuring high strength of the machine without deformation, and possibility of bearing the expansion force of the high-density product; Adopting advanced molding technical, the machine is applicable to produce high-density and low-density block and ensure same quality of inside and outside block; The mould cavity surface is coated with Teflon, ensuring easy de-mould and good finish of the block; Block conveying line and electronic weighing scale for machine is optional. HS-ZB Series EPS block moulding machine technical data:

Subjects		Unit	HS-ZB-2000	HS-ZB-3000	HS-ZB-4000	HS-ZB-6000
Mould size		mm	2040×1240×1040	3050×1240×1040	4070×1240×1040	6090×1240×1040
Product size		mm	2000×1200×1000	3000×1200×1000	4000×1200×1000	6000×1200×1000
Steam	Inlet size	mm	φ100	φ100	φ150	φ150
	Consumption	Kg/cycle	30-50	40-70	55-85	70-130
	Inlet pressure	Mpa	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8
Compressed air	Inlet size	mm	Φ50	Φ80	Φ80	Φ80
	Consumption	Kg/cycle	1-1.5	1.5-1.8	1.8-2	2-2.3
	Inlet pressure	Mpa	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8
Injector	Entry number	pc	6	8	10	14
	Entry size	mm	70	70	70	70
Drainage size		mm	φ100	φ125	φ150	φ150
Main drainage size		mm	φ150	φ150	φ200	φ200
Vacuum drainage		mm	φ120	φ125	φ125	φ125
Condensation drainage		mm	φ100	φ125	φ125	φ125
Power for vacuum pump		KW	5.5×2	5.5×2	11×2	11×2
Power	Capacity	KW	20.5	22	35.5	35.5
	Consumption	KW/h	14	16	18	18
Overall dimension			4700×3200×3500	5700×3200×3500	6700×3200×3500	8700×3200×3500
Weight		T	6	8	10	12

Detailed Photos
Company Profile
Zhejiang Huasheng Machinery Equipment Co., Ltd, located in Fuyang, Hangzhou City, China, is a manufacturer
for high-end EPS foam machinery and EPS moulds.
Huasheng has developed into a modern and standardized production base with an area of over 18, 000 square meters,
more than 100 employees and a team of highly qualified and educated researchers, and obtained 15 invention patents.
The main products include high-precision automatic pre-expander machine, fully automatic shape molding machine ,
EPS block moulding machine, EPS foam mold, EPS lost foam white area equipment etc.
We warmly welcome all customers and friends from both domestic and abroad.
Company show
Certifications
Packaging & Shipping
FAQ
Q: Are you a factory or trading company?
A: We are a factory of EPS machine and EPS mold.
Q: what is your payment term?
A: 30% down payment upon order confirmation, 70% balance payment before shipment.
Q:what is your delivery time?
A: It takes usually 45-60days for machines, and 25-30days for EPS mold.
Q: Do you send engineer to our local place to instruct installation?
A:Yes,if you need,we will arrange engineer for you,and we can provide turn-key job.
Q: Warranty?
A: One year warranty after installation is completed.During warranty period, for broken parts not by man-made and wear parts, factory seller will replace free of charge. the shipping cost will be borne by buyer, seller will equip standard spare wear parts to buyer.

---
