US$5,000.00-10,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Engraving Head Speed Adjustability
Wide Adjustable Range
Application
Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry
Max Moving Speed
8000mm/Min
Spindle Speed
6000-24000rpm
Software Compatability
Type3, Ucancam, Artcam Software
Flash Memory
128m(U Disk)
Transport Package
Wooden Box
Origin
Jinan Shandong China
Production Capacity
60s/M
Product Description

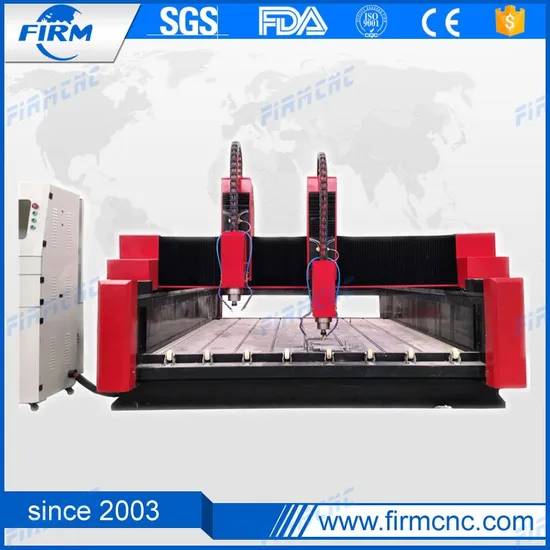

High Quality Stone Engraving Machine CNC Router for sale
This kind of machine is the main products of Jinan Firm CNC Equipment co, . Ltd which specialize in producing cnc machine. The material that the machine can process including tile, marble, granite, white marble, sandstone, glass, metals, 3D natural marble, artificial stone, tombstone, milestone, etc.
Description of the machine
1. Cast heavy-thickness square tube structure, solid without distortion.
2. Germany Ballscrew for Z axis, high-efficiency working. Rack gear for X Y axis, high-speed with best rigidity.
3. Taiwan HIWIN Square orbits, ensure the machine's movement stable and smooth and long-life using.
4. Water-cooling spindle, can be working for a long time.
5. Broken-point memory, ensures the continuity of work when inciddent happens.
6. DSP Controller system, conveniently to operate.
7. Spindle power 3KW/4.5KW/6KW/7.5KW/8KW/9KW, fasting-speed & working-efficiency.
8. U flash interface.
9. Auto-oiling system. Extra time can be saved.
10. Heavy-thickness water-tank device, guarantee the marble materials under water-cooled function. Meantime also improve the blades life-time.
Samples
Technical Data.:
| Discription | FM-1212 |
| Working Area (X*Y*Zmm) | 1200mm*1200mm*200mm |
| X, Y Structure | Rack gear |
| Z Structure | Ball Screw |
| Max Moving Speed | 8000mm/min |
| Max Engraving Speed | 6000mm/min |
| XYZ traveling positioning accuracy | ± 0.04/300mm |
| XYZ repositioning accuracy | ± 0.04mm |
| Spindle power | 2.2KW/3KW/4.5KW/5.5KW/6KW/7.5KW |
| Spindle Speed | 6000-24000rpm |
| Diamerer of cutter | 3.175, 6mm, 12.7mm, 2, 1, etc. |
| Voltage | AC220V, 50Hz/60Hz(option, AC380V, 50Hz/60Hz) |
| Drive type | Stepper/Servo(option) |
| Working Dictate | G Code*. u00*. mmg*. plt. 2D 3D |
| Operating system | Ncstudio control card/DSP system |
| Operating environment | Windows98/2000/xp |
| Interface | PCI, USB |
| Flash memory | 128M(U Disk) |
| Software Compatability | Type3, Ucancam, Artcam Software |
| Running Enviroment | Temperature: 0-45 |
| Relative humidity: 30%-75% |
| Machine necessary | Water-tank device |
Package
Water-proof plastic film package with foam protection in each corner.
Solid Seaworthy Wood Box Package with Steel Belt.
Save space as much as possible for container loading.
Service
# Two years warranty for the machine
# Replacing all parts for free during warranty
# If nessessary, provide door to door service to your country
# 24 hours on line service
# Replying your email and offer tecnical service within 24 hours
Company Info
Jinan Firm CNC Equipment Co., Ltd is situated in Jinan city, Shandong province. We are a professional and good reputation manufacturer of CNC router (router cnc, cnc wood router), laser engraving machine, CNC plasma cutter, laser cutting machine, laser marking machine in China to the new and existing customers that are spread throughout the South America, Middle East, Southeast Asia, Africa, Europe and other counties of the world and the machines has passed the EU CE certificate.
FAQ
How long is the delivery time?
For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.
Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
How is the packing?
Water-proof plastic film package with foam protection in each corner
Solid Seaworthy Wood Box Package with Steel Belt
Save space as much as possible for container loading
If some problems happened to this machine during warranty period,what should i do?
We will supply free parts in machine warranty period if machine have some problem.While we also supply free after-service forever,so any doubts,just us know,we will give you solutions in 30 minuts.
What is the MOQ?
MOQ for our products is 1 set machine,we could send it to your country port if you tell detail information about your country port. Contact information:
Cathy Yang Sales Manager)
Jinan Firm CNC Equipment Co., Ltd.
Add: Jingliu Road, Huaiyin District, Jinan City, Shandong Province, China.
Tel: 0086-0531-69986330
>>
