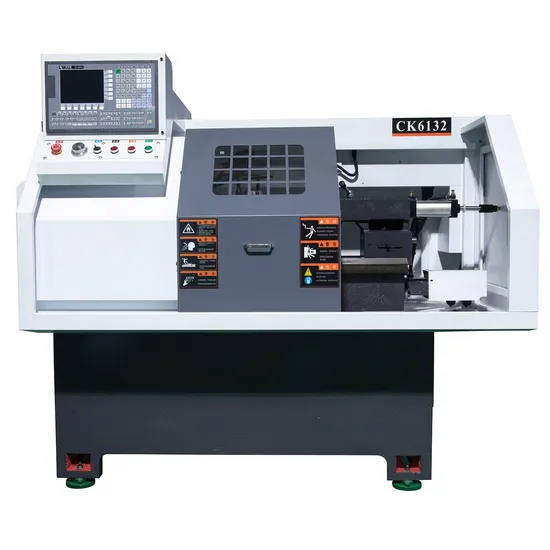

Ck6132 Hard Guide Rail CNC Machine Small CNC Turning Lathe

Product Description

Product Description

Detailed Photos

Product Parameters
Standard Configuration:
Machine model: CK6132
Specifications of bed: 300*1200 hard rail tailstock
Foot specification: 600*1500mm
Control system: Keyuan 980TB2 system
Clamping configuration: 1. Pneumatic chuck +160 manual chuck
Tailstock device: manual tailstock/pneumatic tailstock
Tool configuration: electric tool post + row tool post
Feed system:
1. X-axis lead screw: 2505*540 (Jiangsu Qidong Wanrun)
2. Z-axis lead screw: 3206*910 (Jiangsu Qidong Wanrun)
Bearing: 7215DBB*7213DBB (Renben bearing)
Other configurations: 1. Electric oil pump 2. Water pump
Machine bed: Bed 250 casting

Parameter	SPECIFICATIONS	Units	CK6132 hard guide rail with tailstock
Machining Capacity	Maximum turning diameter over bed	mm	Φ300
	Maximum turning diameter over turret	mm	Φ180
	Maximum machining length	mm	350
	Maximum machining bar diameter	mm	40
	Diameter of spindle bore	mm	Φ48
	Maximum stroke of X/Z	mm	560/700
Power System	Spindle maximum spindle speed	r/min	3000
	Spindle Motor	KW	4/5.5
	Spindle Transducer	KW	4/5.5
	X/Z drive motor	N/M	4/4(Keyuan original)
Tool Post	Height of rectangular tool shank section	mm	20
Precision	Repeat Positioning accuracy	mm	0.01
	Machining accuracy	mm	0.01
	Spindle beat	mm	0.01
Other	Hydraulic pump motor	kw	0.75
	Cutting fluid pump motor	kw	0.4
	Power supply power	KVA	7.5
	Machine weight	kg	1100
	Machine Size	mm	2000x1200x1600

Packaging & Shipping
Customer Receiving Goods
Company Profile

FAQ
1.What is the payment Terms?
A:30% initial payment when order,70% balance payment before shipment;lrrevocable LC at sight.When we receive theadvance payment,we will start to make production.when the machine is ready,we will take pictures to you.after we gotyour balance payment we will send the machine to you.
2. What is your trade terms? A:FOBCFRand CIF all acceptable.
3.When is the delivery time?
A: If the machine you will order is standard machinewe can ready the machine within 15days. if some special ma- chines will be some longer.You can place order accordingto delivery time and ship timewe willgive you the answer accordingly.
4. What is your trade terms?
A:FOB,CFRCIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MoQ is one set, lathe warranty is one year and system warranty is three vear
6. What is the package of the machines?
A:The machines standard will be packed in wood case.
(how to guarantee the precision)
In order to guarantee the high precision, we use integrate bed, and imported accessories, such as ball screw rod,
Linear guide rail, automatic lubrication system, during the effective machining range, our machine can guarantee the error 0.01mm.

---
