Professional Plastic Drums Scrap Recycling Machine

Product Description

Professional Plastic Drums Scrap Recycling Machine
1. Product Description
• This plastic recycling machine is designed and manufactured by MOOGE TECH, which is widely used for waste rigid plastic HDPE bottle, PP kettle, etc.
• It used to recycling the waste HDPE/ LDPE/ PP bottles and buckets, hollow containers and so on. The production line including the conveyor belt, metal detector, Plastic Wet crusher, floating washing tank, high speed frication washer, centrifuge dewatering machine drying system and label separating machine, material collecting packing system.
• We also supply plastic pelletizing line / plastic granulator to make the clean flakes into pellets (granules). The renewable pellets (granules) can be made into plastic barrel, plastic pipe, plastic frame, farm implement, machine components, and so on through extruding forming machine. They are widely used in agriculture, construction, industry and our daily life. In this way, we achieve the reuse of waste plastic recycling and the purpose of protecting our environment.
• This plastic recycling machine can be displayed "L" or "U" shape according to clients' workshop.
• We can also customize the washing line according to client's material and product requirement.
2. Features
(1) Automatically working, conveying material, crushing, washing, drying.
(2) Finished product size: <16mm
(3) Moisture content: <3%
(4) High efficiency, safety control, large capacity
3. Working Flow (500kg/h advanced system)

SN	Item Name	Function

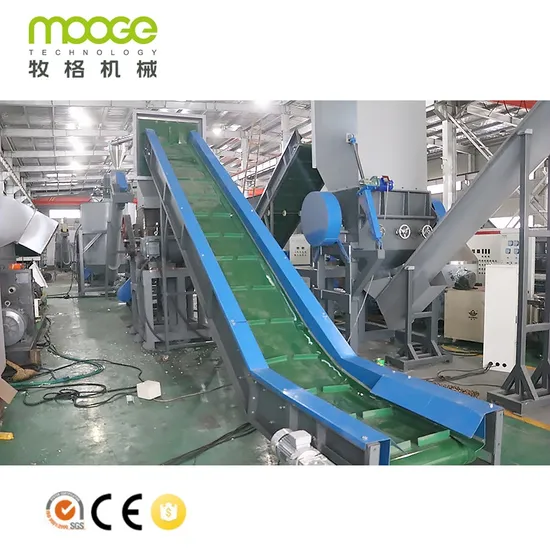

1	Belt conveyor	Conveying dirty plastic bottles into crusher. If too much scrap iron, metal detector may be needed.
2	S-series crusher	With water, cut plastic bottles into small size
3	Friction washing loader machine	Washing out the sand, soil and loading the material.
4	First Floating washing tank	Washing out the dirty from the material.
5	Screw loader	Load bottle flakes into the next step.
6	Horizontal friction dewatering machine	Washing out labels, dirty and remove dirty water.
7	Second Floating washer tank	Washing out the dirty from the material.
8	Screw loader	Load bottle flakes into the next step.
9	Dewatering machine	Remove the water from the material.
10	Hot air drying system	Drying the bottle flakes.
11	Storage hopper	Collect the flakes.
12	Control cabinet	Control the line on/off (famous brand such as Schneider, Siemens, etc.)

4. Technical Parameter

Model	Capacity	Installed Power	Hot Washing	Manpower	Area Required (L*W*H)
MEB-300	300kg/hr	90KW	Optional	1-2	22m*5m*3.5m
MEB-500	500kg/hr	115KW	Optional	2-3	25m*6m*5.5m
MEB-1000	1000kg/hr	215KW	Optional	4-5	35m*6m*5.5m

5. Detailed Images
a. Name: Crusher Machine
Function: Crushing the bottles into PET flakes
Blade material: SKD-11
Motor Brand: SIEMENS
Material: SUS304
b. Name: Floating Washing Tank
The roller is specially made can have more washing for lakes but less water take out
Bottom with Positive and negative screw to pushing the dirty into middle
With a side screw loader to loading out the sinking material
c. Name: Horizontal Centrifuge Dewatering Machine
Function: friction washing the material and its running with high speed can remove the dirty, dust, sand out with the dirty water
6. Packaging and Shipping
(1) For the loose cargo we will packing by wooden box.
(2) For the full container loading we are packing the machine by film and some on pallet accordingly.
(3) We can ship the goods by air or by sea.
(4) We will send pictures of cargo loading to our client to check and keep recording.
(5) We can send cargo to client's warehouse to loading.
7.Our services
A.Service before sale
(1) 24 hours online. Your inquiry will be quick reply by email.
Also can go through all questions with you by any online chatting tools ( Wechat, Whatsapp, Skype, Viber, QQ, TradeManager )
(2)Professionally and patiently introduction, details pictures and working video to show machine.
B.Service on sale
(1)Test every machine and inspect the machine seriously.
(2)Send the machine picture which you order, then packing it with standard export wooden box after you confirm the machine is ok.
(3)Delivery: If ship by sea after delivery to seaport. Will tell you the shipping time and arrival time. Finally, send all original documents to you by Express For Free.
If delivery it by Express to your door(DHL, TNT, Fedex, etc) or by air to your airport, or logistic to the warehouse which you request. We will tell you the tracking number after delivery.
C.Service after sale
(1) Free insurance for goods
(2) 24 hours online to solve any problem.Supply you English manual book and technical support, maintain and install video to help you solve the problem, or dispatch worker to your factory.

8. Company Information
JIANGSU MOOGE TECH MACHINERY CO.,LTD is a Professional Plastic Machinery manufacturer located in Zhangjiagang city, Jiangsu Province of China; We are dedicated to designing and developing the high technology Plastic Machinery.
Our main products is the Plastic Extrusion Machinery, Plastic Recycling Machinery, Plastic Shredding Machinery, Plastic Auxiliary Machinery; Our machinery successful passed many years working by our customers. We are always keeping improvement our products by the feedback and tracking service from our customers which makes our products better and better.
Looking forward to cooperating with you for a better tomorrow with our unremitting pursuit!
9. FAQ
(1) How to Choose proper Products you want?
a. Please tell us as detail as what you want?
b. What's your raw material?
c. What's the final products you want to produce?
d. What capacity you want it performance?
(2) How to Control the quality?
a. We have technical, engineer team design the sample machinery before enter into market
b. Production QC team ensure the machine manufacturing quality.
c. We will running every machine after finished before shipment.
d. Optional choose by client running the machinery by material.

If you are intererted in our recycling machines, please do not hesitate to contact me!
