Square Hay Baler of Tractor′s Farm Implements Packing Baling Machine Mini Small Large Square Round Baler.

Product Description

Overview

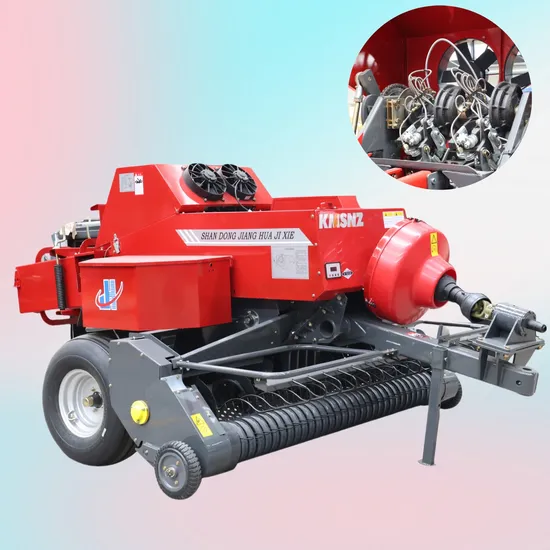

9YFQ-2.2A is a small rectangular baler with a wide pickup, producing bales size easy handling or feeding, and just the right density for efficient storage and transport.

Pickup wide width is 2.2m, the use of low body design structure, the forage into the pickup through the auger, pull fork into the pre-pressure chamber, after reaching a certain density by the feed fork push into the bundling room, bundling is completed from the back slide out. The whole process is completed in the same straight line and the pickup process is also completed at a low level.the nutrient leaves will not be lost due to the vibration and tearing of the pickup, the crop is directly pushed into the pre-pressure chamber and pre-pressed to form grass, ensures that the density of the bale remains uniform and that the size of the bale remains the same from bale to bale. In addition, nutrient-rich leaves can be evenly distributed throughout the bale, not concentrated on the sides or bottom of the bale. at last the form grass pushed into the baling chamber, This improves the quality of the bales, ensures that the bales are easy to store and easy to feed to livestock.
Product Description
There are 2.2 m pickup and four rows of elastic teeth,three-stage traction in the center,
so small turning radius and more flexible operation.The bundling machine is installed with German original knotting device,with reliable quality and extended service life, which can meet the operating requirements of different environments.
The Peel bearings is imported from United States.
The straw box extended to 1.5m, the rope box can hold 10 bundles of rope, which can meet one day's work, get the user's praise and trust.
Product feature
1. Double screw feeder,Feed in the middle of four fork feeding form.
2. Screw feeding device adopts double sprocket drive form, transmission is balance and reliable.
3.The feeding fork adopts the crank connecting rod mechanism in the connecting rod mechanism, which is simple, reliable and flexible.
4.The piston compression mechanism using the crank slider mechanism,which is simple, practical and reliable.
5.The rope knotter adopts imported D-type knotter with reliable structure and high bundling rate.
6.The straw bale length is adjusted between 310-1300mm to meet the needs of different markets.
7.Equipped with dual fans, effectively reduce the failure rate.
8.Increase the width of professional grade floating tires to reduce ground compaction.
9.Equipped with Peel bearings imported from the United States.
10.The straw box extended to 1.5 meters.
11.The rope box is large enough to hold 10 bundles of rope, enough for a day's work.
12.Electronic counter without manual calculation.
With pickup function to meet different market requirements
Product advantages
Product parameters

Serial number	Item	Unit	specification
1	Model	/	9YFQ-2.2A
2	Pickup attachment width	mm	2200
3	Pickup structure form	/	spring tine cultivator
4	Knotter form		D type
5	Number of knotters	pcs	2
6	Compression chamber section dimensions	mm	457*356
7	Matching power range	KW	≥37
First trouble-free average effort:>4000bundle Qty per feed:>2.5kg/time
