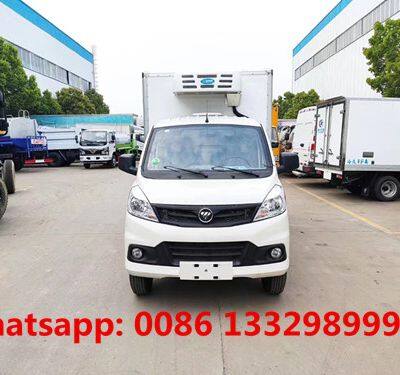

Cheapest price customized FOTON Xiangleng V1 gasoline mini refrigerated van truck for sale
Foton xiangleng gasoline engine refrigerated truck for sale,
Truck model: BJ1020V3JV5-02
wheelbase: 3070mm
overall dimension (L*W*H): 4960*1720*2515 (mm)
refrigerated van box dimension(L*W*H): 2795*1545*1535（mm）
Engine model: DAM15KR 115hp gasoline engine
gearbox: 5 speed gearbox
curb mass: 1560KG
front/rear axle102 rear axle
steel spring: -/5
Tire specification: 175R14LT 8PR*4
Main technical parameters of FOTON XIANGLENG V1 gasoline refrigerated minivan as below.
Items
| Descriptions
| Specifications and Types
|
General
| Truck Name
| Foton xiangleng V1 gasoline mini refrigerator truck for sale
|
Drive Type
| 4*2 LHD
|
Fact Loading Weight(kg)
| 0.5tons-1tons
|
Total mass(kgs)
| 2185
|
Curb Weight (kg)
| 1560 (Kg)
|
Overall Dimensions (mm)
| 4960*1720*2515 (mm)
|
Engine
| Engine Model
| DAM15KR 115hp gasoline engine
|
Engine Brand
| Dong’an
|
Fuel Type
| Petroleum
|
Power
| 115hp
|
Emission Standard
| Euro Ⅵ
|
Chassis
| Chassis model
| BJ1020V3JV5-02
|
Chassis Brand
| Foton
|
Tire Specification
| 175R14LT 8PR*4
|
Wheelbase (mm)
| 3070mm
|
Axle No.
| 2
|
Steering Wheel
| Left hand drive
|
Gear Box
| 5 speed forward with 1 reverse, manual
|
Air-conditioner
| No
|
Cold Room
| Box inner dimension(mm)
| 2795*1545*1535
|
Box Side
| Exterior and interior with FRP(Fiber Reinforced Plastic), and the middle with 80mm PU slices with vacuum negative pressure one-formed casting as the insulation layer, approved the related Ministry of Health of food grade requirements, etc. just like sandwich structure.
|
Box Floor
| Baseboard adopts aluminum alloy anti-skipping diamond board, which assuring the insulation ability and the compact resistance of the baseboard.
|
Doors
| Frame of standard rear double doors adopts the stainless steel structure frame with light mass and perfect corrosive resistance, etc.
The door edgings frames are sealed with the imported high quality epdm rubber, making sure the van insulation stability.
Aluminum alloy Door edgings,
Stainless steel material Door locks and accessories
|
Refrigerator Unit
| Refrigeration unit
| Choose high quality China-made vehicle-powered refrigerated unit, the temperature can be adjusted at 15 degree below zero to zero degree. And the cooling unit can be adjusted at the driver cab.
|
Refrigerated temperature
| -15° to 0°
|
If you're interested in our refrigerated truck,please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: 0086 13329899995.
Chengli Special Automobile Co., Ltd manufactures refrigerator trucks since 2004s in China. With so many years’ experience in manufacturing, we Chengli Special Automobile Co. Ltd could manufacture and sell vaccine delivery vehicle, meat hook refrigerated truck, fruit and vegetables refrigerated truck, milk food transport refrigerator truck, insulation van truck, van refrigerated truck, freezer minibus, small refrigerated truck, medium freezer van truck, big refrigerated truck, refrigerator semi-trailer, freezer refrigerated vehicles, dongfeng brand cold room truck, ISUZU brand refrigerated truck, FAW refrigerated truck, FOTON refrigerated truck, Chang’an freezer van truck, Yuejin refrigerated truck, JMC refrigerated truck, CMAC refrigerator truck, Aoling refrigerated truck, the smallest refrigerated truck, etc. More information, please feel free to contact with Ms. Anita.
We Chengli Special Automobile Co., Ltd. is a 12 years professional manufacturer of special trucks,supply different kinds of trucks,can be customized as customer requirements.
(1). Capacity: 0.5-30 ton refrigerator truck,31-50 ton refrigerated trailer.
(2). Steering wheel: both left and right hand drive,meet the needs of different countries.
(3). Emission standard: option Euro 1,Euro 2,Euro 3,Euro 4,Euro 5 refrigerator truck
(4). Truck chassis: option japan and china brand.
>>
