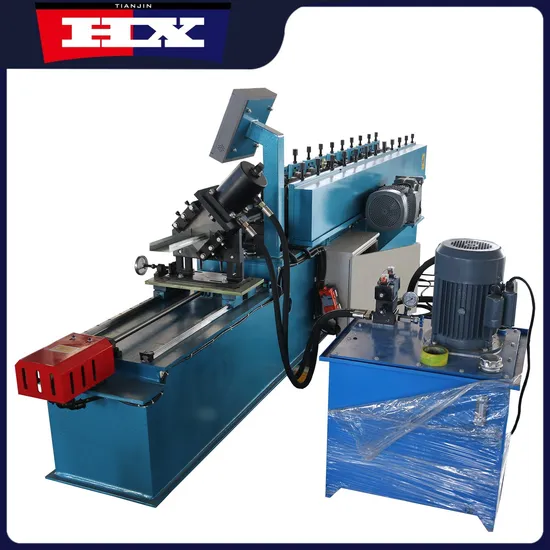

Maquina PARA Hacer Angulo Ceiling Keel Angle Making Machine

US$6,000.00-13,000.00 1 Set (MOQ)

Basic Info.

Model NO.
40*40
Certification
CE, ISO9001
Customized
Customized
Condition
New
Control Type
CNC
Automatic Grade
Automatic
Name
Maquina PARA Hacer Angulo
Processing Speed
30-35m/Min
Thickness of The Feeding Coil
0.18-0.4mm or as Requirement
Control System
PLC Automatic Control
Cutting Blade Material
Cr12 Quenched
Step of Rollers
9-20 Steps
Transport Package
Maquina PARA Hacer Angulo Is Nude
Specification
T grid
Trademark
Haixing
Origin
China
HS Code
84552210
Production Capacity
1000000set/Year

Packaging & Delivery

Package Size
750.00cm * 150.00cm * 180.00cm
Package Gross Weight
5000.000kg

Product Description

maquina para hacer angulo
ceiling keel angle making machine
Product Description
maquina para hacer angulo ceiling keel angle making machine parameter:
No. maquina para hacer angulo ceiling keel angle making machine
1 Suitable to process (Prepainted)galvanized steel strips
2 Rollers Angle :10Rows Roller Diameter :40mm
U shape :8Rows Roller Diameter :50mm
C shape :12Rows Roller Diameter :50mm
Omega :10Rows Roller Diameter :50mm
3 Main frame Square steel frame
4 Dimensions 5.6*0.8*1.5m
5 Wallboard size Memorial arch
6 Weight About 2.5T
7 Motor power 3Kw (Reducer 250Pm)
8 Pump Station Motor 3Kw
9 Thickness of the plate 0.35mm-1.0mm ,or as customer
10 Forming speed 15-25m/min
11 Cutting way Hydraulic tracking cutting
12 Voltage 380V 50Hz 3phases
13 Control system PLC control
14 Touch screen Sanjing or as customer's need
15 Rolling materials 45# forging steel with chromium plate
16 Length Tolerance ±2mm

maquina para hacer angulo ceiling keel angle making machine reference picture:
maquina para hacer angulo ceiling keel angle making machine sample panel size:
maquina para hacer angulo ceiling keel angle making machine working flow:
