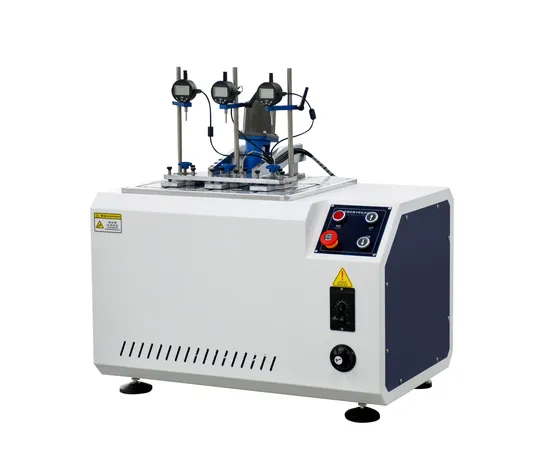

ASTM D 1525 Plastic Rubber and Non Metal Material Heat Deformation Tester

Product Description

HDT Vicat Softening Point Temperature Testing Machine Product Description Model: GC-WDK-3A
Product Introduction GC-WDK-3A thermal deformation Vicat softening point testing machine uses PLC programmable controller for temperature change and computer display operation. It is mainly used to test the heat distortion temperature and Vicat softening point temperature of non-metallic materials such as plastics, rubber, nylon, electrical insulating materials, etc.
Test Standards GB/T 1633 Thermoplastics - Determination of Vicat softening temperature (VST)
GB/T 1634 Determination of plastic load deformation temperature Part I: General test method
GB/T 8802 Determination of softening temperature of plastic pipe fittings
ISO75-2013 Determination of plastic load deformation temperature
ASTM D 648 Plastic thermal deformation temperature test method
ASTM D 1525 Plastic Vicat (VICAT) softening temperature test method
Specifications

Model	GC-WDK-3A
Temperature control range	Ambient temperature -300ºC
Heating rate	(120±10)ºC/h;(12±1)ºC/6min; (50±5)ºC/h; (5a±0.5)ºC/6min
Temperature indication error	0.1ºC
Temperature control accuracy	±0.5ºC
Maximum deformation indication error	±0.001mm
Deformation measurement range	0-10mm
Number of sample racks	3,4,6
Load rod and pallet quality	68g
Heating medium	Methyl silicone oil or transformer oil
Cooling method	Natural cooling above 150, water cooling or natural cooling below 150
Heating power	4KW
Control mode	Touch screen control
Power	220V 50Hz
