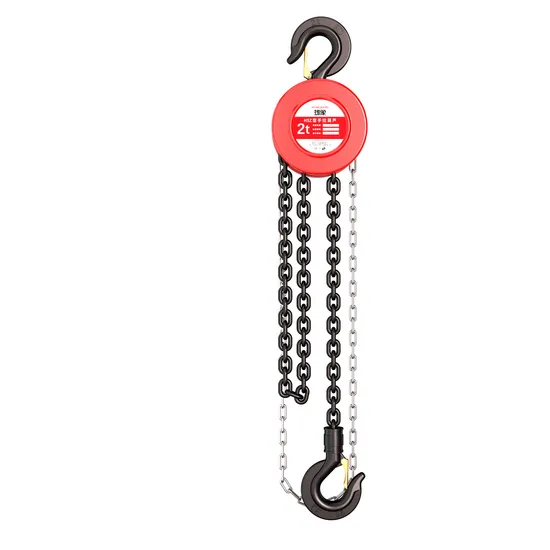

Hsz Type Chain Block Manual Chain Hoist Construction 0.5t 30t

Product Description

Product Description

Company Profile

It is suitable for the short distance lifting of small equipment and goods, the lifting weight is generally not more than 10T, the maximum can reach 20T, and the lifting height is generally not more than 6m. The shell material of the hand hoist is high quality alloy steel, strong and wear-resistant, and high safety performance. When the hand hoist lifts the weight, clockwise pull the manual chain, the hand sprocket rotation, counterclockwise pull the chain, the brake seat is separated from the brake pad, the ratchet is stationary under the action of the ratchet claw, and the five-tooth long shaft drives the lifting sprocket to run in the opposite direction, so as to smoothly drop the weight. The hand hoist generally adopts ratchet friction vane unidirectional brake, which can brake itself under load. The pawl engages with the ratchet under the action of the spring to make the brake work safely. It has the characteristics of safe and reliable, easy maintenance, high mechanical efficiency, small bracelet tension, light weight to carry, beautiful appearance, small size, durable, suitable for factories, mines, construction sites, docks, warehouses, etc., used as installation machines, lifting goods, especially for open air and no power operations, but also shows its advantages. The main parts of the hand hoist are made of alloy steel material, and the chain adopts 800Mpa high-strength lifting chain, the material is generally 20M2, and the chain is of medium frequency quenching heat treatment, low wear and anti-corrosion. High strength hook, generally made of alloy steel, calcined hook design ensures slow lifting to prevent overload; In line with the European CE safety standard.

---
