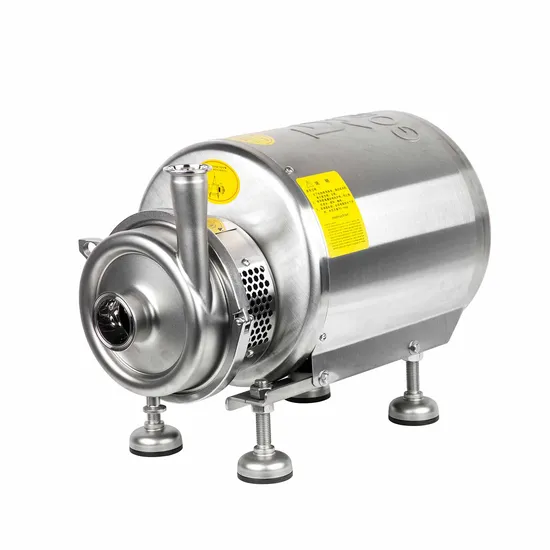

2.2kw Food Grade Stainless Sanitary Centrifugal Pump with Electric Motor

Product Description

Brief Introduction:
GKF centrifugal pump is one type of centrifugal pump which mainly used for pharmaceutical, food industry, dairy industry, winery project. The pumps are made of Stainless steel 316L or SS 304, which with a surface polished, can be used to the above industry for sanitary purpose.
BasicSpecification:

Model in Our Company	GKF sanitary centrifugal pump
Motor Power	0.75KW~7.5KW
Rated Flow	3~30T/H (50~500L/min)
Rated Head	18~36m
Working Temperature	-10ºC~140ºC
Inlet Diameter	Φ38~Φ63 (mm)
Outlet Diameter	Φ32~Φ51 (mm)
Voltage	AC220~240V, AC380~420V, 50/60Hz custom
Motor	ABB Motor
Connection	ISO ferrule joint, threaded union, flange
Inner Surface	Mirror polishing Ra0.4
Material	AISI 304, AISI 316L

Advantage:
1. The GKH series pumps are complete including the motor, and are made of stainless steel, not only with high clean exterior and interior design, but also could be with online high-pressure water rinse. 2. This pump with low noise, no dead angle, high efficiency and other technical characteristics. 3. The pump is very suitable for workplace of high cleanliness workshop and meet with high cleanliness requirements, such as bio-pharmacy, food and beverage, wine, fine chemical industry and other fields.
4.The GKHs equipped with the quick assembly clamp, easy to realize the free rotation of the pump head 360 degrees.

---
