V10SE-235711 Double needle digital lockstitch car seat compound feed heavy duty sewing-machine

Product Description

Walking foot leather industrial sewing machine, post bed sewing machine

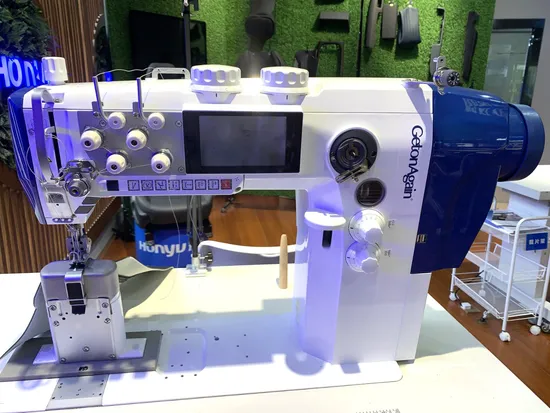

V10SE-235711 Double needle, post bed, direct drive, compound feed digital sewing machine

Model No.	V10SE-235711
Feeding system	Alternating presser foot, feed dog and needle feeding
Max sewing speed	2500 s.p.m
Shuttle diameter	Ф26mm
Applied needle	DP×17 #18-#23
Needle quantity	2
High of the post bed	172mm
Thread size	Maximum thread 12 strands nylon
Max stitch length	9mm
Max alternating presser foot	9mm
Max presser foot lifting height	20mm
Auto trimming	-
Auto back tacking	√
Presser foot lifting height by air	√
Auto oil system	√
HP function	√
Halving positioning device	√
Operation space	351X 297mm
Multi-grade adjustable LED light	√
Electronic handwheel	√
LED touchscreen	-
Function short-cut buttons	-
Function-related can be set	√
Double stitch length switch quickly	√
Pneumatic compensation thread clamp	√

Product Description
1.Post bed double needle compound feeding sewing machine without automatic trimming.
2.For decorative topstitch process on automotive interior sewing-achieve solid and even topstitch sewing by rear half presser foot,alternating presser foot with height compensation and intergrated center divider.
Product Advantages
Extra Larger operation space
Extra large operation space 351*297mm and slim post bed make the three dimension material sewing more easier.
Multi-function button group
Cancel back tacking, transform instantaneously internal and external presser foot alternating amount, stitch compensation, pneumatic halving device are satisfied with various usage scenes.
The needle gauge can be set
V10SE double needle series adopts metric needle gauge groups,6mm, 8mm, 10mm, and 12mm specifications are available.
HP function
(1)Transform the maximum presser foot alternating amount 9mm by one-click.
(2)When the sewing reaches the position between up and down step,pressing the DL switch cantransform instantaneously maximum walking foot and presser foot alternating amount,if will form a perfect stitch.
Typical Field of Application
It's applied in normal sewing for car seat interiors and soft furniture like sofas.
