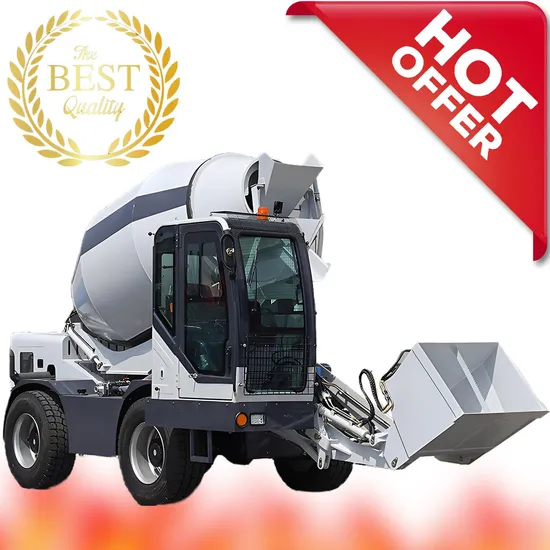

DJ901 Self-Loading Mixer Truck with 2X210L Water Tank, Electronic Weighing System, Steel Wire Tire, 290 Degree Rotating Mixer Tank Unloading

Product Description

Basic Parameters

	Drum capacity	5.5m³
	Concrete output	4m³
	Loading ratio	76%
	Rotary drum	Discharge mouth height 1.8 meters.Level turn 290 ° (options)
	Production capacity	4 batches in an hour.16 cubic meters per hour
	Engine	Yuchai4108 turbo charge, diesel, water cooling
	Transmission way	Full hydraulic drive.4 wheel drive and 2 turns.All the power comes from hydraulic oil, including walking 4X4
	Climbing ability	30%
	Speed	Low speed 0-25 km/h, high speed 0-45 km/h.
	CAB	Ultra wide deluxe cab . ROPS type.
	Joystick	A four-way hydraulic pilot with an electric control button controls the bucket.
	Bucket	650L, hydraulic gate.
	Chute	Equipped with two removable shaft pins to increase the discharge length.
	Water supply system	Self-priming hydraulic drive pump/electronic water flow monitor/high pressure washer (optional)
	Brake	inner wheel brake and the emergency brake operate on 4 wheels, enabling the small servo pump on the independent double-return road.Negative pressure type stop brake, the front bridge is equipped with inner hub
	Turn	Hydraulic steering, rear wheel steering.
	Tyre	385/65/22.5
	Tires :	405/70-20
	Oil tank/water tank	2 x210L water tank. Diesel tank: 125 L.Hydraulic tank: 130 L
	Weight	7600KG
	L*W*H	7500*2700*3380mm
	Wheelbase	2350mm
	Metering	Electronic weighing system (optional).

Our Concrete Mixer Truck is compact and convenient in design, easy to operate, with a batch output of 4 cubic meters,16 cubic meters per hour. It is a perfect combination of a mixing tank truck, a loader and a transport truck. It also has a 290-degree rotating mixing tank unloading function and a fully hydraulic drive, which is more efficient, more precise and more stable.
About Us
Our Advantages
1.Why choose us?
Choose our construction machinery because we provide efficient, reliable and safe construction solutions. Our products use advanced technology to ensure efficient construction, while focusing on energy conservation and environmental protection, in line with the concept of sustainable development. We have a strong brand strength and a complete after-sales service system, and can provide customers with all-round support. Whether it is a large-scale engineering project or a daily construction task, our construction machinery can meet your needs and help you successfully complete the construction task.
FAQ Q1: How long is the Warranty for DAOJ product? A1: DAOJ provides 12 months or 1000 hours for the whole machine from on board time. Q2: How about the delivery time?
A2: Usually DAOJ producing time is 15- 40 days after we receive the advanced payment. For some standard products, we may have stock and could delivery immediately.
Q3: What kind terms of payment can be accepted?
A3: :Normally we can work on T/T term or L/C term.
Q4: Can DAOJ provide customized products? OEM products or ODM products?
A4: Yes, DAOJcan provide customized products per your request, both OEM and ODM are acceptable. We do a lots of non-standard products, welcome your special request.
Q5: Could we request our own color for the products?
A5: Yes, of course

---
