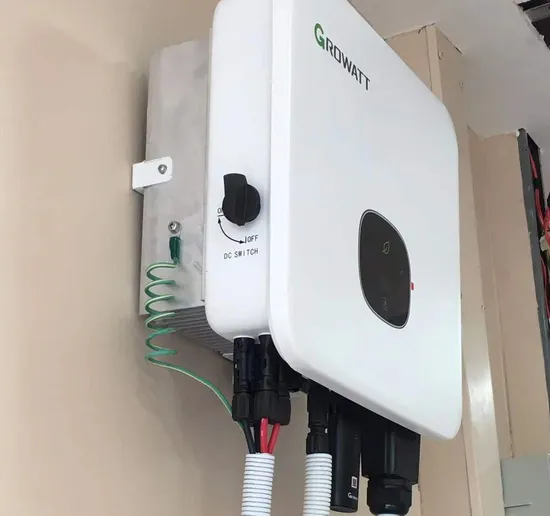

Growatt Dual MPPT Grid Tied Solar Inverter 3kw 4kw 5kw

Product Description

Product Description
MIC 750~3300TL-X >Maximum efficiency of 97.6%
>Compact design
>Touch key& OLED display
>Flexible monitoring options
>AFCI optionalProduct Details

Datasheet	MIC 750TL-X	MIC1000TL-X	MIC1500TL-X	MIC2000TL-X	MIC2500TL-X	MIC3000TL-X	MIC3300TL-X
Input data(DC)
Max recommended PV power	1050W	1400W	2100W	2800W	3500W	4200W	4290W
Max DC voltage	500V	500V	500V	500V	550V	550V	550V
Start voltage	50V	50V	50V	50V	80V	80V	80V
Nominal voltage	120V	180V	250V	360V	360V	360V	360V
MPP voltage range	50V-500V	50V-500V	50V-500V	50V-500V	65V-550V	65V-550V	65V-550V
No. of MPP trackers	1
No.of PV strings per MPP tracker	1
Max input current per MPP tracker	13A
Max short circuit current per MPP tracker	16A
Output data(AC)
AC nominal power	750W	1000W	1500W	2000W	2500W	3000W	3300W
Max AC apparent power	750VA	1000VA	1500VA	2000VA	2500VA	3000VA	3300VA
Nominal AC voltage(range)	230V(180-280V)
AC grid frequency(range)	50/60Hz
Max output current	3.6A	4.8A	7.1A	9.5A	11.9A	14.3A	14.3A
AC grid connection type	Single phase
General data
Dimensions (W / H / D)	274/254/138mm
Weight	6kg	6kg	6kg	6kg	6.2kg	6.2kg	6.2kg
Operating temperature range	-25°C ... +60°C
Noise emission (typical)	≤25 dB(A)
Nighttime power consumption	≤25 dB(A)
Nighttime power consumption	< 0.5W
Protection degree	IP65
Relative humidity	0-100%
Altitude	4000m
DC connection	H4/MC4(Optional)
AC connection	Connector
Display	OLED+LED/WIFI+APP
Interfaces: RS485 / USB/Wi-Fi/ GPRS/ RF/LAN	Yes/Yes/Optional/Optional/Optional /Optional
Warranty: 5 years / 10 years	Yes/Optional
CE,AS4777, AS/NZS 3100, CEI 0-21, VDE-AR-N 4105, VDE 0126-1-1, UTE C 15-712-1, EN50549, IEC 60068, IEC 61683, IEC 62116, IEC61727, INMETRO, G98, C10/C11, UNE217001, UNE206007, PO12.2

Project Show
Company Profile
Alicosolar is a manufacturer of solar power system with well-equipped testing facilities and strong technical force.It is located in Jingjiang. About two hours from Taizhou city to Shanghai city by car.
The location provides strong logistics chain to Alicosolar. Alicosolar, specialized in R&D.We are concentrated on on-grid system,off-grid system and intergrated solar system. The main products including Mono-crystalline PV panel,Poly-crystalline PV panel,Storage battery,solar charge controller,solar inverter and so on.We have our own factory to product solar mounting and PV modules. Alicosolar has introduced advanced automatic production equipment from Germany,Italy and Japan.Our products are global and trusted by users.
Alicosolar provide one-stop service for design, production, sales and installation.We are looking forward to cooperating with you sincerely.

---
