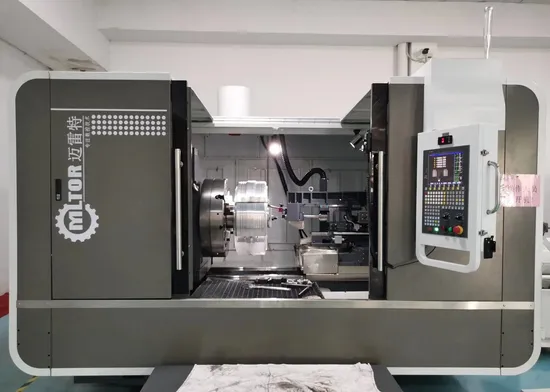

CNC Automatic 5-Axis Linkage Tyre Mold Vent Hole Drilling Machine for 0.8mm to 5.5mm (MLT-SK1H-1043)

Product Description

Intelligent with high-efficiency tyre mold vent hole drilling expert
Technical description
1.High accuracy&efficiency
High speed direct drive motorized spindle,rotating speed up to 30000r/min,combining with our flexible feed technology,makes efficiency of tyre mold drilling increased more than 4 times,and the qualified rate of drilling is more than 99.99%.The drill bit breakage rate is less than 0.001%,which greatly promotes the technical lecel and quality of vent hole manufacturing.
2.Expert system
MLT-Z228t CNC system,with many unique MLTOR deep hole drilling technology inside,such as expert process database,online vibration monitoring,drill-break protection,power-off memory,etc.
3.Easy operation
Friendly man-machine interaction interface,easy to operate,only a simple training can be skilled.Improve woke efficiency,reduce training costs and reduce human intervention.
4.High intelligence
It integrates the functions of hydraulic pressure,oil cooling,filtration,chip removal and oil mist purification.The processing process is highly automated and practical.At present,the whole process of unattended processing is achieved.
5.TBT gun drill bit
Using TBT gun drill bits that customized for MLTOR machines,makes our efficiency much higher and extend the tool life.
6.Strong capability
Can process vent hole of the two-piece molds,segmented molds,sidewall plate and bead ring,as well as the direct vent holes with very small aperture.The innovative L-shape bad design with back side drilling can realized the interference angle drilling which can note be processed by traditional internal drilling method.
Parameter description

	MLT-SK1H-1043
NC control system	MLT-Z228t gun drilling control system
Number of serve spindle	5-axis linkage
Number of main spindle	1 spindle
Main spindle rotating speed	0-20000r/min
Tyre of locking	ER20 spring chuck locking
Main motor power	4.6KW
Vent hole drilling diameter	Ф0.8mm-Ф5.0mm

Cooling system	High pressure internal cooling system
Tool type	Solid carbide gun drilling bit
Max.mold external diameter	1000mm
Max.mold hight	430mm
Min.diameter of orifice circle	400mm
Max.drilling depth	150mm
X-trip range	1250mm
Z-trip range	1200mm

U-trip range	300mm
sliding arm travel range	430mm
B-axis rotation angle	+100°~-45°
C-axis rotation angle	360°
Chuck type	Ф800
Max.work piece weight	1200kg
Tool chuck type	Four-claw single-motion chuck
Feeding speed range	≤1500mm/min

Fast forward speed	≤6000mm/min
Approach speed	120~1200mm/min
Hydraulic station volume	300L
Max.cold cut pressure	15MPa
Max.cold cut flow rate	25L/min
Rated power	20kw
Floor space	3800mm*3050mm*2700mm
Machine weight	12000kg

---
