Superior Feedback Slant Bed CNC Lathes That Are Equipped with Tool Turret (BL-H50T/TC/TY)

Product Description

- Adopt TAIWAN technology, designed by TAIWAN engineer, most parts adopt GERMANY/JAPAN/TAIWAN brand

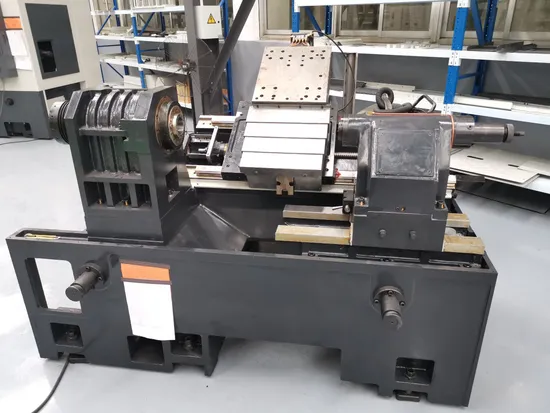

- Adopt 30°integral slant bed design
- X,Z axes adopt 45mm big width linear guideway,super high rigidity
- Adopt modularization design, easy for various especial configuration choice, such as tool setter etc
- Adopt MEEHANITE class cast iron, after aging treatment, small distortion, good torsional strength, good heat stability
- Base adopt multilayer strengthening rib, ensure bed's strength and stability
- Adopt high precision integral spindle unit, spindle motor adopt high performance servo motor, big output torque,high speed,wide adjustment range
- Spindle adopt double line ROLLER type bearing, high rigidity, suitable for heavy cutting
- Adopt high precision C3 class pre-stretched ball screw(double nuts), coupled with feeding motor directly by linkager, no gap,high transmission rigidity
- H50T mount 12T hydraulic-servo tool turret
- H50TC mount C axes and 12T Powered tool turret
- H50TY mount C axes and 12T Powered tool turret with 90°Y axes
Details:

Item	Specification	Unit	BL-H50T			BL-H50TC			BL-H50TY
Capacity	Chuck size	/	8''(10''*,12''*)
	Max. swing dia. over bed	mm	Φ560
	Max. swing dia. over saddle	mm	Φ300
	Max. turning length	mm	485(8'' chuck); 475(10'' chuck*); 440(12'' chuck*)			355(8'' chuck);			450(8'' chuck)
	Max. turning dia.	mm	Φ400			Φ290			Φ330
	Standard turning dia.	mm	Φ200(8'' chuck); Φ250(10'' chuck*); Φ300(12'' chuck*)			Φ200(8'' chuck)			Φ200(8'' chuck)
Spindle	Spindle bore	mm	Φ66(Φ86*)
	Spindle end type	/	A2-6(A2-8*)
	Spindle speed	rpm	4000(3500*)
	Max. bar through dia.	mm	51(74*)
	Spindle motor power	kw	11(15*)
X/Z axes	X/Y/Z axes linear guideway type	/	BALL type
	X/Y/Z axes linear guideway width	mm	45/30/45
	X/Y/Z axes ball screw O.D.	mm	Φ32/Φ32/Φ40
	X/Y/Z axes ball screw pitch	mm	10
	X axes travel	mm	230		250			220
	Y axes travel	mm	/		/			90
	Z axes travel	mm	610		500			500
	X/Z axes rapid moving speed	m/min	24/24
	Y axes rapid moving speed	m/min	/		/			8
Tool turret	Tool turret type	/	12T Hydraulic-servo tool turret		12T BMT55 Powered tool turret			12T BMT55 Powered tool turret with Y axes
	Toolshank size	mm	25×25, Φ40		25×25, Φ32(ER32)			25×25, Φ32(ER32)
Tailstock	Tailstock quill taper	/	MT4#
	Tailstock quill dia./travel	mm	Φ80/80
Accuracy	Positioning accuracy(X/Z)	mm	0.008/1000
	Repeat positioning accuracy(X/Z)	mm	≤0.005
Others	Overall size	mm	2600×1800×1900
	N.W.	kg	4000	4100			4200

*As option
Main parts list:

Item	Brand
Spindle unit	TAIWAN-ROYAL
Tool turret	GERMANY-SAUTER/TAIWAN-YULIN/SWIFT
Ball screw	JAPAN-THK
Ball screw bearing	JAPAN-NSK
Linear guideway	JAPAN-THK
Lubrication system	TAIWAN-ISHAN
Rotary oil cylinder&chuck	TAIWAN-AUTOGRIP
Hydraulic parts	TAIWAN/JAPAN
Heat exchanger	Joint-venture
Main electricity parts	FRANCE-SCHNEIDER

Standard configuration:
-SIEMENS 808D ADVANCED CNC controller
-Hydraulic chuck
-Hydraulic tool turret
-Hydraulic tailstock
Optional configuration:
-SYNTEC/SIEMENS 828D/FANUC 0i TF CNC controller
-C axes& powered tool turret
-Y axes
-Automatic chip conveyor
-Tool setting probe
