Product Description
Product Description

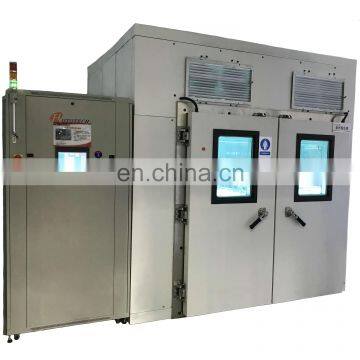

Company logo UV aging Climatic Chamber/ UV age environment testing chamber/Solar panel testing machine with IEC61215 testing Testing standardIt's conform IEC61215-2:2016 & IEC61730-2:2016 testing standard requirement Purposeto precondition the module with ultra-violet (UV) radiation before the thermal cycle/humidity freeze tests to identify those materials and adhesive bonds that are susceptible to UV degradation The Main Technical Specifications The Chamber material completely obstruct ultraviolet rays,tightness,good thermal insulation’s high quality materials Machine UV total irradiation area 2000mm×2000mm (2 pcs ) , can customized Light source life Approx 2000 hours Lamp brand Honle(Germany import) Single lamp UVA and UVA relative energy rate UVB approx occupy total energy 3%~10% Irradiance uniformity be better than ±15% Monitor data Real-time monitor and show UVA and UVB strength UVA wavelength 320nm~400nm UVB wavelength 280~320nm Module surface temperature 60℃±5℃ Temperature resolution 0.1℃ Ozone almost no ozone is produced Light ways upper light, module test plane vertical light source Control ways Touch screen control Electricity 3 phase 380V 60HZ Customer Site requirement NOItemRequirement1Placed dimensionApprox 3000mm×4000mm×2000mm (D×W×H)2WeightApprox 1.5 ton3Compressor air requirementwithout4Power requirement3 phase 380V 60HZ 5Gruond requirementGround line connect to the ground6Area requirement Flat7Envirnoment requirement20℃±2%,humidity 50%~70%, no noise , Shockproof, non-magnetic interference8Power35KW Testing procedrue1,Using the calibrated radiameter measure the irradiance at the proposed module test plane and ensure that at wavelength between 280nm and 400nm it does not exceed 250W/M2 (i.e. about five times the natural sunlight level) and that it has a uniformity of ±15% over the test plane 2,Short-circuit or attach the resistive load to the module and mount it in the test plane at the location selected , normal to the UV irradiance beam. Make sure that the module temperature sensors read 65±5℃ 3,Subject the modules front side to a total UV irradiation of at least 15 KW/m2 in the wavelength range between 280nm and 400nm with at least 3%, but not more than 10% in the wavelength band between 280nm and 320nm , while maintaining the module temperature within the prescribed range Products images show The Relative product PV exhibition Certificate Business Card
>>
