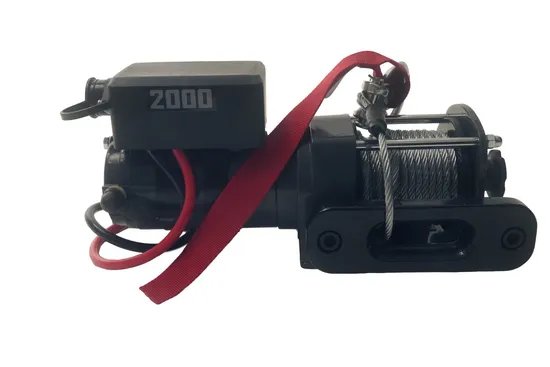

12V Electric Winch with 2000lbs

Product Description

The compact yet powerful 2000 DC utility winch is great for a varity of tasks,whether it's loading a vehicle onto a trailer or
simply moving a heavy load at the jobsite.With 2,000 lbs of pulling capacity,a new easy-to-use clutch lever,and a corded remote,
this light-duty winch is big on features and value.
Specifications
Rated line pulls:2000 lbs.(907 kg)
Motor: Permanent magnet motor(Input Power) 0.67 hp / 0.5kW (DC 12V)
Brake: Self-locking gear train(Rated load holding)
Switch Type:Remote Control
Gear Train:Split Ring Gear
Clutch:Knob,pull and turn
Drum diameter/length: Ø 1.25"x 2.85"(Ø 31.5 mm x 72mm)
Fairlead:Hawse
Hole Pattern:2 holes on 3.1"(7.87cm)center
Gear reduction ratio: 153:1
Overall dimensions: 13.3"x 5.16" x 6.4" (338 mm X 131 mm X162 mm)
Rope: Ø 3/16"x35'Ø (4.8mm x 10.7 m)
Mounting bolt pattern:3.1" x5/16"(78.74mm XΦ9.1 mm)
12 DC Performance specs (First layer of drum)

Line pull	Line speed	Motor	Pull by layer
lbs. (kg)	ft/min (m/min)	Current	Layer/Lbs.(kg)
0	6.6 (2.0)	12 amps	1/2000 (907)
500 (227)	5.2 (1.6)	30 amps	2/1504 (682)
1000 (454)	4.6 (1.4)	45 amps	3/1348 (612)
1500 (680)	3.3 (1.0)	70 amps	4/1222 (554)
2000 (907)	2.3 (0.7)	100 amps	5/1117 (507)

Multiple order qty:40
Winch weight :18 lbs(8.2kg)
Gross Weight : 9.1kg
Box Dimension : 400*220*205mm
Mounting plate Hawse fairlead Wired remote control 1/4 Hook FAQ
1.What's your product range?
Electric winch
2.When Can I get the quotation?
We usually quote within 24 hours after we get your inquiry .
3.How can I get a sample to check your quality?
After price confirmation, If you need the samples, you need pay the express fee and the sample cost
4.What about the lead time for mass production?
We can sure within 30-35 days delivery time, but depends on the quantity !

---
