Basic Info.
Signal Type
Baseband Modem
Installation
Rack-Mounted
Transmission Rate
300Mbps
Application
Industrial, Enterprise, Household
Transmission Mode
Data Transfer
SIM Card Slot
Dual SIM Card Slots
Interface Ports
1wan/5LAN or 6LAN Ports, One Console Port,USB,RS23
WiFi
WiFi High Quality Performance Without Congestion
Lte EU Frequency Bands
Lte FDD. B2,4,5,17
Network Mode
Lte ,WCDMA,EVDO,GPRS,GSM,CDMA 1X
Embeddedsystem
Linux or Openwrt
Working Temperature
-40~+75
Antenna
2*2 4G/WiFi MIMO Antenna
Highlight
1gbit LAN Port.Vlan
Transport Package
Carton Packing
Specification
Aluminum alloy
Production Capacity
100000set/ Month
Product Description

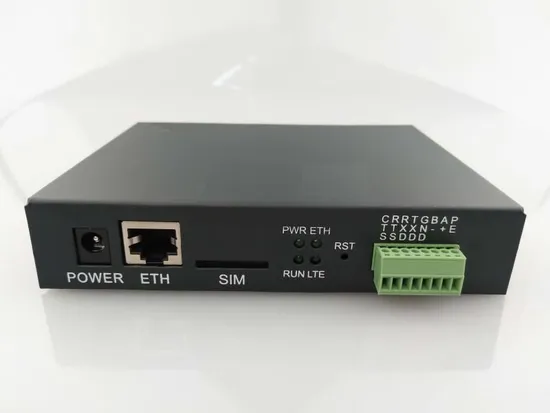

Industrial LTE multi LAN ports router with watchdog and auto recovery features
• 3G/4G LTE data transmission;
• Support Wi-Fi 802.11 AC
• Active auto connect;
• Embedded watchdog , Auto recovery;
• Support protocols like DHCP,VPN(IPSEC,L2TP,PPTP, GRE,Open VPN),TR-069,SSH,DDNS.
• 2*2 4G/WIFI MIMO antennas, GPS high gain antenna;
• Integrate 3G/4G LTE,Wi-Fi,GPS feature;
• Support SD card storage.
• Wi-Fi High quality performance without congestion;
• 1WAN/5LAN or 6LAN ports, One console port,USB,RS232,GPIOs; • Provide one 1Gbit LAN port.
• Support VLAN feature.
• With dual SIM card slots;
• Wide power supply: +5V~+48V/1A
• Remote management platform;
• Firmware version: Linux or Openwrt;
| Frequency bands |
| 2G Version | GSM/GPRS 850/900/1800/1900MHz | |
| 3G Version | WCDMA. 850/1900MHz, 850/2100MHz & 900/2100MHz | EVDO 800MHz & 800/1900MHz |
| GSM. 850/900/1800/1900MHz |
| 4G Version | Version A | LTE FDD. B2,4,5,17 |
| UMTS. 850/1900MHz |
| | LTE FDD. B1,3,7,8 |
| Version C | LTE TDD B38, B39, B40, B41 |
| | UMTS. 900/2100MHz |
| | TD-SCDMA. 1880~1920MHz & 2010~2025MHz |
| | GSM. 900/1800MHz |
| Version E | LTE FDD. B1,3,7,8,20 |
| LTE TDD B38, B40 |
| UMTS. 900/2100MHz |
| GSM. 900/1800MHz |
| | LTE FDD. B1,B3,B8,B18,B19 |
| Version JC | LTE TDD. B41 |
| | UMTS. B1,B6,B8 |
| | GSM. 900/1800MHz |
| Version JE | LTE FDD. B1,B8 |
| UMTS. B1,B8 |
| GSM. 900/1800MHz |
| | Seven-Band LTE-FDD B1/B3/B4/B5/B7/B8/B28 |
| Version SA | Tri-Band LTE-TDD B38/B40/B41 |
| | Qual-Band UMTS/HSDPA/HSPA+ B1/B2/B5/B8 |
| | Qual-Band GSM/GPRS/EDGE B2/B3/B5/B8 |
| Data rates |
| 3G LTE router | WCDMA. DL 14.4Mbps, UL 5.76Mbps | EVDO. DL 3.1Mbps, UL 1.8Mbps |
| 4G LTE router | FDD LTE. DL,100Mbps UL,50Mbps | Or |
| TDD LTE. DL,50Mbps UL,25Mbps | LTE Category 4 - 150 Mbps (DL) |
| WCDMA. DL 42Mbps UL5.76Mbps | LTE Category 4 - 50 Mbps (UL) |
| TD-SCDMA. DL 2.8Mbps UL 2.2Mbps | |
>>
