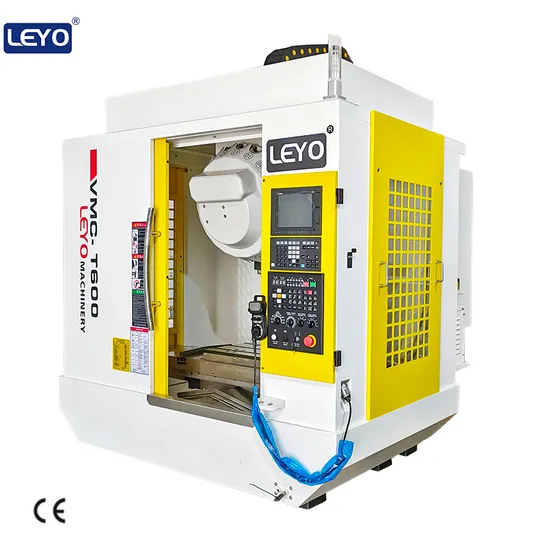

Leyo T600 Xyz Travel 600/400/350 mm 3/4/5 Axis Compact Machining Center

Product Description

Items	Parameter	Unit
X/Y/Z axis travel	600/400/350	mm
X/Y/Z axis fast moving speed	48	mm/min
X/Y/Z axis Cutting feed speed	20	mm/min
Worktable size (L×W)	700*420	mm
Maximum load	300	kg
Spindle Speed	20000	rpm
Spindle motor power	5.5	KW
Spindle taper hole&Installation diameter	BT30	mm
T-slot	3*14*125	mm
Distance between spindle end face and worktable	135-480	mm
Distance from spindle centert to the column	420	mm
Controller	LNC/SYNTEC/Mitsubishi/Fanuc/Siemens	mm
Tool magazine	21	T
Maximum tool diameter(Adjacent vacancy)	50(120)	mm
Maximum tool length	250	mm
Maximum tool weight	3	kg
Tool change time (adjacent tool)	1.2	Sec
Positioning accuracy	± 0.005	mm
Repeat positioning accuracy	± 0.003	mm
Machine dimension (L×W×H)	1900*2070*2300	mm
Machine weight	3500	kg
Power requirement	10	KVA
Required air pressure	6	kgf/cm²
Required gas flow	0.15	m²/min

Main configuration
Items	Specification and model	Place of Origin	Remarks
Machine frame	HT300	China	LEYO
Sheet metal type	Full cover sheet metal	China	LEYO
Controller	SYNTEC 22MA	Taiwan,China	SYNTEC
Ballscrews	φ32*16 C3-level Precision	Taiwan,China/Germany	PMI/HIWIN/Rexroth
Linear guideway	XY:30mm/2 Z:35mm/2 P-level Precision	Taiwan,China/Germany	PMI/HIWIN/Rexroth
Three axis servo motor and drive	SYNTEC	Taiwan,China	SYNTEC
Spindle servo motor and drive	SYNTEC	Taiwan,China	SYNTEC
Spindle	BT30-20000 rpm	Taiwan,China	SIPINDER/Kenturn/WAY LONG
Tool magazine	21T	Taiwan,China	SANJET
Screw rod bearing	BSB2562	Switzerland
Customized Handwheel	Separated hand wheel	Taiwan,China	LEYO
Centralized automatic lubrication system	3.5L	Taiwan,China	HERG
Work lighting	LED 24V8W	China	LEYO
Alarm device	Led 24V three color + buzzer	China	LEYO
Cutting cooling system	Cooling pump and oil tank	Taiwan,China	STAIRS PUMPS
Spindle cooling system	Oil cooler	Taiwan,China	REID
Electric box cooling system	Convection heat exchanger	Taiwan,China	REID
Process blowing system	LEYO	Taiwan,China	LEYO
Automatic power off system	LEYO	Taiwan,China	LEYO
Three axis slide rail telescopic shield	LEYO	China	LEYO
Front chip punching system	LEYO customized	China	LEYO
High grade high pressure water gun	LEYO customized	China	LEYO

Dongguan Liyang Intelligent Technology Co., Ltd.,
located in Houjie Town, Dongguan City, Guangdong Province, China, is a manufacturer of CNC machine integrating industry and trade. Its main products are high-end 3-5 axis CNC milling machines like high-speed cnc milling machines, gantry milling machines, etc; cnc machining center like vertical machining center, horizontal machining center, vertical horizontal dual-use machining center, compact machining center, etc; and cnc lathe, etc. These machines are mainly used in the producing and machining of parts and molds in 3c electronics, automobiles, instruments and meters, electronic appliances, medical devices, aerospace, machinery manufacturing, new energy vehicles, 5G communication industries and other industries. Our company has obtained several utility model patents and invention patents, CE certificates, ISO9001 quality management system certificates, and factory strength certification from SGS, TUV and other international testing and certification institutions. Our machinery and equipment are sold to the domestic and foreign markets. The main domestic markets are Guangdong, Zhejiang, Fujian, Sichuan and many other provinces. The international market is mainly exported to Europe, Central Asia, Southeast Asia and other countries. Our goal is to provide the world with high-quality CNC machine.
About LEYO service
1. Customized service
1.Design logo for free or remove logo services.
2. Free design of sheet metal. If you want the color of the machine appearance to be consistent with the color of your company's brand or factory decoration, we also provide free custom sheet metal design services.
3. Customized machine configuration for free. Customized according to customer configuration requirements, such as the brand and model of screw rod and linear guide rail, the brand power and speed of spindle, the brand and model of controller, and the type of tool magazine.
4. Customized special machines for free. If you have special requirements on the material, process, precision and efficiency of the products you are processing, we can customize the models based on the products you are processing.
5. Free design of automatic production line.
The customization quantity and price will vary according to the complexity of customization.
2. One stop procurement service
Provide accessories, four five axis turntable, tailstock, tool setting instrument, measuring head, chain chip conveyor, etc. Consumables like tools, tool handles, tool carts, tool boxes, etc.
3. Free online and offline after-sales service
The warranty period of all models is one year, and spare parts and online and offline after-sales services are provided free of charge within one year. However, the travel expenses of after-sales personnel need to be paid by the customer, such as transportation, board and lodging.Lifetime free online after-sales technical guidance service.
4. Fast delivery service
If you need it urgently, please tell me the expected delivery date, and we can arrange it according to customer needs. The fastest production time is 7 working days.

---
