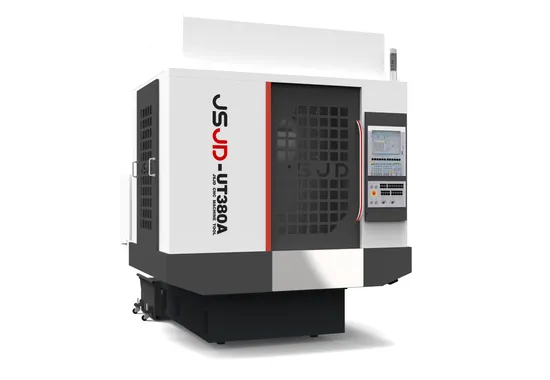

Precision 5 Axis CNC Machining Center Ut-380A for Affordable Milling

Product Description

Product Description
Machine characteristics:
- High Precision: The DD rotary table, driven directly by the motor, eliminates the backlash and errors of intermediate transmission mechanisms, thereby improving positioning accuracy and repeatability.
- Fast Response: Direct drive motors have high-speed response capabilities, allowing for faster rotational movements and acceleration, thereby increasing machining efficiency.
- High Rigidity and Stability: Since the DD rotary table lacks mechanical transmission components, it reduces vibrations and errors during movement, resulting in higher overall rigidity and stability, which helps improve machining quality and surface finish.
- Maintenance-Free: The direct drive system does not require traditional transmission components such as gears and belts, reducing wear and maintenance needs, and lowering maintenance costs and downtime.
- Flexibility: A CNC machine with a DD five-axis rotary table can perform more complex machining tasks, such as intricate surface machining and multi-angle hole drilling, making it suitable for industries like aerospace, automotive, and mold making that require efficient machining of complex parts.
- Versatility: The DD five-axis rotary table allows a single machine to perform various machining operations, such as milling, drilling, and tapping, reducing the number of workpiece setups and machining cycles, thus increasing production efficiency.
- High Dynamic Performance: DD motors have high dynamic performance, enabling high dynamic response characteristics of the rotary table, which improves dynamic accuracy during the machining process, making it suitable for high dynamic performance requirements.
Product Parameters

Specification		Unit	UT-380A
Travel	X axis	mm	600
	Y axis	mm	400
	Z axis	mm	330
	A axis	°	-30~+110
	C axis	°	360
Controller	System	-	Syntec/Lynuc
	Total axes	-	5
Accuracy(VDI 3441)	X/Y/Z axis positioning accuracy	mm	±0.005/300
	X/Y/Z axis repositioning accuracy	mm	±0.003/300
	A/C axis positioning accuracy	"	±10
	A/C axis repositioning accuracy	"	±5
Spindle	Spindle taper	-	BT30
	Spindle speed	rpm	20000
	Spindle drive type	-	direct
	Spindle end face to table surface	mm	90-420
	Spindle center to Z axis guide rail	mm	467
Table	Rotary table diameter	mm	Φ260
	Maximum processing diameter	mm	Φ380
	Maximum processing height	mm	300
	Table load	kg	60
	T-slots	mm	4-12H7×90°
Guide rail	X/Y/Z axis ball screw	mm	2816/2816/3216
	X/Y/Z axis guide rail type	-	linear
Tool magazine	Number of tools	T	21
	Tool length/weight	-	250mm/3kg
	Tool diameter (full/adjacent empty)	mm	ø60-ø80
Motor power	Spindle motor	kw	5.5
	X/Y/Z axis servo motor	kw	1.5/1.5/3
	Coolant pump motor	w	450
Feed	X/Y/Z axis rapid feed	m/min	48
	A/C axis rapid feed	rpm	189/386
	Cutting feed	m/min	10
Others	Power	kva	15
	Air pressure	kg/cm2	6~8
	Dimensions	mm	2000×2620×2450
	Weight	T	4.4

Standard configuration: -Direct drive motor 5 axis rotary table -BT-30 direct spindle 20000rpm -Umbrella type servo tool magazine(BT30-21T) -Fully Enclosed Shield -Spindle oil cooler -Industrial refrigeration and air conditioning -Rigid Tapping -Tool checking instrument -Foundation pads and adjusting bolts -Separate electronic handwheel -LED work light -LED three-color warning light -Automatic lubrication system -Tool Cutting Cooling System -Automatic chip flushing function -Ethernet, CF card and USB interfaces -Cleaning water gun -High pressure air gun -Tool box -User manuals -Control circuit information Optional configuration: -BT-30 direct spindle 15000/24000rpm
-Grating ruler
-High pressure spindle center outlet system
-Workpiece measuring system
-Oil mist recovery system
-Oil-water separator More products

	Item	Unit	UT-200A	UT-380A	U200A	U-380A	U-400A	U-500A	UM-500B	WZ-650
Travel	X/Y/Z axis travel	mm	600/400/330		600/400/430		820/560/570	1100/700/700	1100/750/500	820/520/500
	Spindle end face to table surface	mm	120-450	90-400	40-470		70-630	60-760	170-670	150-650
	Spindle center to Z axis guide rail	mm	467				630	717	290	187
Rotary Table	Table size	mm	Φ200	Φ260	Φ200	Φ260	Φ320	Φ400	Φ400	Φ650
	Table load	kg	20	60	20	60	70	200	150	300
	Maximum machining height	mm	200	300	200	300	260	380	480	370
	Mmaximum rotating diameter	mm	Φ240	Φ380	Φ240	Φ380	Φ450	Φ500	Φ620	Φ650
	T-slots	mm	4-12H7×90°					8-14H7×45°		5-14H7×100°
Controller	System	-	Syntec/Lynuc
Spindle	Speed	rpm	20000		12000/15000
	Taper	-	BT30		BT40		BBT40
	Motor Power	kw	5.5		7.5		11
Feed	X/Y/Z axis rapid feed	m/min	48/48/48				36/36/36		30/30/30	24/24/24
	X/Y/Z axis cutting feed	m/min	10/10/10
Accuracy	X/Y/Z axis positioning accuracy	mm	±0.005/300
	X/Y/Z axis repositioning accuracy	mm	±0.003/300
	A/C axis positioning accuracy	"	±10					±15	±10
	A/C axis repositioning accuracy	"	±5					±10	±5
Others	Air pressure	kg/cm²	6~8
	Capacity	kva	15		20		25	30	25
	Dimension	mm	2000×2620×2450		2030×2475×2640		2880×2850×3110	3380×3290×3300	3170×4250×3400	3630×3890×3230
	Weight	T	4.2	4.4	4.5	4.7	6.5	8	6.5	12.5

Company Profile
Dongguan Jieshang Jiangde CNC Machine Tool Co., Ltd. is a professional committed to CNC machine tool research and development, design, manufacturing, sales and service of high-tech company. Our products have passed the CE safety certification, ISO9001 quality system certification and ISO environmental management system certification, and in the hardware, mold, automobile, electronic communications, IT, aerospace, new energy and other fields to achieve good results.
Adhering to the spirit of craftsman, customer first business philosophy, focus on every link of production, improve the overall performance, provide reasonable price, good quality products, sustainable operation, continue to create value for customers.
Always pursuing the principle of service first, we continue to improve the service system and service quality, and through the establishment of service network and complete parts supply system, to provide excellent pre-sale, sale, after-sales service, for customer equipment escort.
Efforts to innovate, the accumulation of CNC machining center machine research and development and manufacturing technology experience, actively expand the business territory, dedicated to provide customers with professional technical support services, permanent management.
FAQ
Q1:What's your main products of your company?A1:We manufacture all kinds of CNC machine tools ,such as Vertical Machine Center, Horizontal Machine Center, 5 axis Machine Center, Gantry Machine Center, Engraving Machine Center.Q2:How can I choose the most suitable machines ?A2:If you are the factory, please tell us your specification request or workpiece drawing, we will suggest the suitable model for you.
If you are the trading company, please tell us your customer's request or we can introduce various models of our company.Q3:Where is our factory located? Can I visit there?A3:Our factory is located in Dongguan City, Guangdong Province, China. You are warmly welcome to visit us.Q4:How is the warranty?A4:One year.We will do our best to serviced.Q5:How long is the delivery time for our products?A5:Twenty days to one month.Q6:How about your quality?A6:We have approved the ISO9001:2015 Quality management system and CE European safety standards. Our products are exported to Russia, Vietnam and other countries.Q7:What is the package?A7:The machine is by waterproof cloth to covered. And a packed by standard exported wooden case. It is very safety for oversea transportation.Q8:What's the Payment Terms ?A8:T/T,30% initial payment when order,70% balance payment before shipment; Irrevocable LC. Other way can discuss according to different situation.

---
