PP/PE/LDPE/LLDPE/HDPE Agricultural Film Woven Bags Shopping Bags Crushing Dewatering Recycling Pelletizing Machine

Product Description

Retech PP PE HDPE LDPE Agriculture Film Woven Bags Shopping bags Crushing Dewatering Recycling Pelletizing Machine
Product Description
The design is mainly to processing following:* LDPE agriculture films washing line
* LLDPE warpping stretch packing films recycling machine
* PP woven bags washing plant
* PP jumbo bags washing machine
* HDPE bottle recycling line
Retech plastic PP PE LDPE film washing recycling line is designed to processing kinds of post consumer LDPE agriculture film, LLDPE stretch film, PP woven bags.etc. By high efficiency crushing system, continuous washing and strong drying system, the plastic film will be fully clean. We provide customized recycling solutions basis on customer's conditions.With more than 15 years experience to keep reserching and development, we can achieve to offer 300kg/h-2000kg/h capacity PE film washing and recycling solutions according to your special requirements.Regardless of what kind of plastics you process and what output qualities and production volumes you're striving for, RETECH Machinery will develop a recycling plant solution that is customized exactly to your requirements.

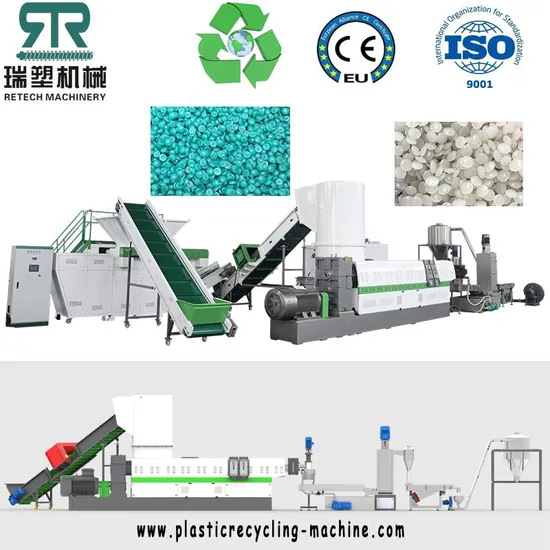

The complete process of this waste plastic recycling machine is belt conveyer - wet crusher - screw loader - friction washer - float washer - squeezing pelletizer - pelletizing line. The output could be 300~800kg/h. For dirty material, the clients will need more washing machine for cleaning the material. According to clients workshop, this plastic recycling machine could be arranged as "L" or "U" shape to save space.
Specifications:

Model Name	RSDJ series
Recycling Material	HDPE, LDPE, LLDPE, PP, BOPP, CPP, OPP, PA, PC, PS, PU, EPS, ABS, PET
Final Product Shape	Pellets/ Granules
System Composition	Belt conveyor, cutting compactor, single screw extruder, pelletizing device, water cooling unit, dewatering section, conveying blower and production silo
Capcity	80kg/h-1200kg/h
Feeding Device	Belt conveyor (standard), Rolls hauling off device (Optional)
Compactor Volume	300 Liters-1400 Liters
Screw Diameter	85mm-200mm (standard)
Screw material	38CrMoAlA nitride steel( SACM-645), bimetallic ( Optional)
Screw L/D	31/1, 32/1, 33/1, 34/1, 36/1 (depending on features of recycles)
Barrel's Heating	Ceramic heater or Casting Aluminum heater
Barrel's Cooling	Air cooling through fan blowers
Vacuum Degassing	Double vented degassing (Standard)
Pelletizing Type	Water ring die-face hot pelletizing
Voltage Standard	Depending on project's location
Optional Devices	Metal detector, rolls hauling off device, micro feeder for masterbatch, additives, chiller, etc.
Delivery Time	60 days after order takes effect.
Warranty	13 months since date of bill of lading
Technical Service	Project design, suggestion on factory construction, installation and commissioning

Applications of Retech PP PE HDPE PVC Barrels Pipes Shredding Washing Drying Recycling Production Line: The design of Retech PP PE HDPE PVC Barrels Pipes Shredding Washing Drying Recycling Production Line is specially for crushing&cleaning&drying the HDPE flakes, the mainly design is customized according to customer's different requirements.
By efficient crushing unit, the bottles/barrels will be cutted into small flakes, then it will be convey to constantly washing and friction system. Usually we will make some hot washing units if the flakes is too dirty.
After fully washed and cleaned, the dryer machine with high RPM will make flakes dry. The final flakes moisture will be within 1%. It can be put to pelletizing directly by our pelletizing line.
With PLC controller system, it will running very automatically.
PP/PE washing machine Product Description
New type waste film washing machine / PE film washing machine with high out and low consumption
Features:
1) Environmentally friendly composite plastic-cellulose fiber materials
2) The knievs can be shaped using carpentry and construction tools
3) Applications: Indoor decoration film, packing film, pallet making production, agricultural film etc.
4) Capacity: 300-1000kg/h
5) Use: Clean PE PP film, dirty PP PE film, PP PE film with oil.


Main Fetures

Feature of our recycling system:1.Compared with the traditional design, the output of our new generation pelletizing machine has been increased around 20%. 2.Lower power consumptionThe power consumption reduced around 15%3.Higher automation degreeOnly 2 workers r required for operating the whole production line.4.Compared with other extruder,two stage waste plastic pelletizing line achieves better degassing and filtration performance, by thus, we can get more excellent final pellets.5.Extruder body safty cover: the safty cover will keep the operators away from potential danger.

Detailed Photos

Belt conveyor with metal detector
Function:To conveying film to crusher,metal detector is to find metals and protect blades in crusher.

Crusher
Function:To crush the big film into small flakes,crushing with water is much more efficiently.


Screw conveyor
Function:To rub material and send material to next step.

Floating washer
Function:To fully wash the film flakes, the rollers will make films more unfolded and push them to the end of tank.

Dewatering machine
Function:It is special to process PP/LDPE/LLDPE soft plastics by fast moving force.

Drying system
Function:Heating by electric will dry the flying flakes in pipes.

Storage hopper
Function:To storage the dried film and packaging.

Electric panel
Function:To control the whole production line
Certifications



Product Parameters

Models of Retech PP PE HDPE PVC Barrels Pipes Shredding Washing Drying Recycling Production Line:

Model	Man power	Electric power	Water needec
RSW300	2	Customized	Customized
RSW500	2	Customized	Customized
RSW1000	3	Customized	Customized
RSW2000	4	Customized	Customized
