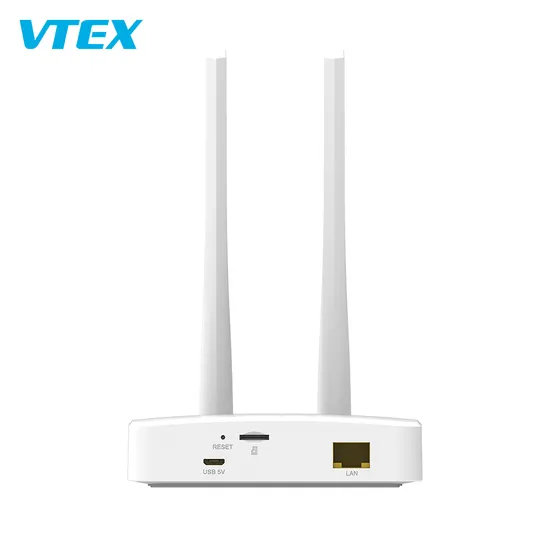

Wholesale Pocket Hotspot Wired 2g 3G 4G Bonding Router 1 SIM 4G Mobile WiFi Router

Product Description

Wholesale Pocket Hotspot Wired 2G 3G 4G Bonding Router 1 Sim 4G Mobile WIFI Router
Product Description

Item	Specification
Power	Input: 5V-16V; typical value:12V
USIM card	1.8V/3.0V Nano (U)SIM card*1
Network Port	Lan RJ45 port
Ethernet Interface	Support 10M/100M
4G Antenna	Main Antenna*1/Diversity Antenna*1
LED signal light	Power signal light×1 Mobile data connection light×1
Wi Fi Antenna	Main Antenna*2
Reset button	Reset button*1
Product Size	100mm(D) ×70mm(W) ×25mm(H)
Weight	About 50g

FEATURE
Support Multi-interface and 4G LTE full frequency bands; Based on LTE CAT4 standard, inner WI FI and Ethernet, three kinds network standards convergence and intercommunication; It could realize plug-and-play broadband access and internet access and wireless conveniently and fastly; Support to use mobile phones, laptops, tablets, and other smart devices, can access the CPE simultaneously.
Hardware Specifications
Item	Specification
Power	Input: 5V-16V; typical value:12V
USIM card	1.8V/3.0V Nano (U)SIM card*1
Ethernet Interface	Support 10M/100M
LED signal light	Power signal light×1 Mobile data connection light×1
WIFI Antenna (optional)	Main Antenna*1
Reset button	Reset button*1
Product Size	100mm(D) ×70mm(W) ×25mm(H)
Weight	About 50g
Operating Temperature	-20ºC ~ 60ºC
Storage Temperature	-25ºC ~ 70ºC
Operating Humidity	5% ~ 95%
Wireless Access Technology	TD-LTE/FDD/WCDMA/TD-SCDMA/GSM/GPRS/EDGE/EGPRS
Bands(Max)	FDD:B1/B2/B3/B4/B5/B7/B8/B20/B28A/B28B/B66 TDD:B34/B38/B39/B40/B41 TDS:B34/B39 WCDMA:B1/B2/B4/B5/B8 GSM:850/900/1800/1900 (Optional)
Data Rate	LTE FDD:Max 150Mbps(DL)/ Max 50Mbps(UL) LTE TDD:Max 130Mbps(DL)/ Min 35Mbps(UL) WCDMA:Max 21Mbps(DL)/ Max 5.76Mbps(UL) TD-SCDMA:Max 4.2Mbps(DL)/ Max 2.2Mbps(UL) EDGE: Max 236.8kbps(DL)/ Max 118kbps(UL) GPRS: Max 85.6kbps(DL)/ Max 85.6kbps(UL) GSM: Max 9.6kbps (DL)/ Max 2.7kbps (UL)
Receive Sensitivity	Compliance with 3GPP standard
MAX Output Power	LTE FDD:23dBm±2dB; LTE TDD:23dBm±2dB; WCDMA:24dBm+1dB/-3dB; TD-SCDMA:24dBm+1dB/-3dB; GSM B5/8: +33 ±2dBm(Power class 4); GSM B2/3: +30 ±2dBm(Power class 1);
Antenna Type	Internal Antenna/External Antenna
Antenna Gain	2~3dBi
2G/3G/4G Technical Specification
Item	Description
Standard	IEEE 802.11b/g/n
Channel Bandwidth	20MHz,40MHz
Frequency	2.4G
TXRX	2T2R
MIMO	DL: 2X2
Peak Rate	802.11b:11Mbps 802.11g:54Mbps 802.11n:300Mbps
Modulation	DSSS/CCK,OFDM
Receive Sensitivity	-85dBm in 802.11b -70dBm in 802.11g -66dBm in 802.11n
MAX Output Power	17dBm in 802.11b 14dBm in 802.11g 13dBm in 802.11n
Antenna Type	Internal Antenna
Antenna Gain	3dBi
Active User	32
WIFI Specifications:
Item	Description
Language Support	English
IP Protocol	IPv4/IPv6
Voice	VOLTE/CSFB
SIM Management	PIN Management, SIM Lock
Network Connection Management	Auto/Manual
LTE Scan Mode	Full band scan , Frequency Lock ,PCI Lock
WLAN	WPS
VPN	L2TP, PPTP
NAT	Port forwarding VDMZ
Firewall	IP/MAC/URL Filter Access Control SYN Flood TCP port scan Death of Ping
Network Management	TR069
Diagnostics	TCP Dump Ping Trace route
Statistics	LTE Status Connection Time System Up Time Device Status DHCP Client List WiFi Station List LTE Status Firewall Status
Maintenance	Date & Time setting Reboot Restore factory settings Restore / Back up configuration file Firmware upgrade locally/OTA (over the air)
System Log	Operating Log Run-time Log Filter/Select/Display/Export Log

Company Information
Our Services
Our Services 24 hours on line service Quick response within 3 hours Products with international certificate Products 100% QC checking before shipping One year warranty OEM, ODM service welcomed
Why Choose Us? 5th year gold supplier of ****** group 11 years experience in exporting business, good reputation in industry Own design house and R&D center to ensure reliablity from very beginning Individual QC team to ensure 100% good quality before shipping Individual after sales service team to answer question from end user



FAQ
Frequently Asked Questions
Q. Is sample order available?
A: Yes, it's available upon request.

Q. How long do you need to prepare sample ?
A: Depending on different products, it may take 3-7 days.

Q. What's your Order MOQ?
For standard model, usually MOQ is 1k per model. For some promotion model, it will be 3K or 5K, Pls. enquiry our sales people for more detail.

Q. What payment terms do you accept?
A: For samples, we accept WESTERN UNION, MoneyGram or BANK T/T in advance. For MP order, accept Bank TT.

Q. How much will the express delivery cost for the sample?
A: The express delivery cost depends on the sample quantity, weight, carton measurement and which country you would like to send. You can enquiry our sales person for exactly information.

Q. How to ship the goods to us?
A: For samples order, usually delivery by carrier like DHL, TNT, FEDEX etc; for MP order, usually ship by air or sea.

Q. Can we have our logo to be printed on the units or packaging?
A: Testing samples for functional valuation, Only Neutral packing and no any Logo printing. For MP order, we can print on product & packaging with your authorized logo.

Q. What can I do if I have more questions need be answered.
A: Pls send us your detailed enquiry. We will reply you within 12 hours.





We are ready and expecting new challenges to cooperate with you ! We sincerely hope to establish a long-term relationship with you. Welcome for your inquiry.

---
