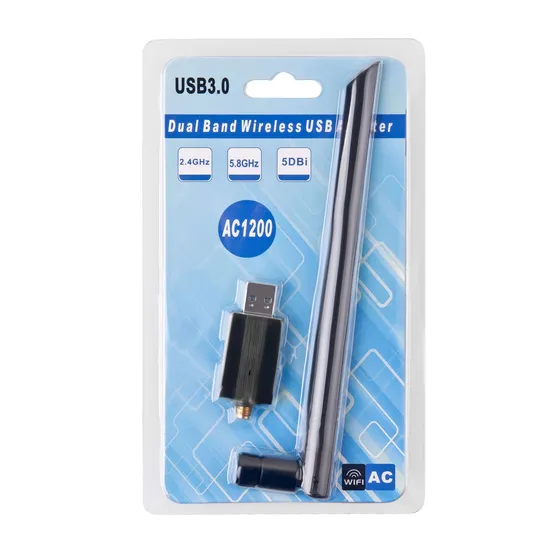

Dual Band 2.4G/5.8g USB WiFi Adapter 1200Mbps USB 3.0 Wireless Network WiFi Dongle

US$3.00 100 Pieces (MOQ)

Basic Info.

Model NO.
XHT-WB6B12
Interface
USB
Transmission Rate
150Mbps
Application
Desktop, Laptop, Server
Connecting Medium
Thin Cable Card
Motherboard Integrated
Integrated Network Card
Frequency Range
Dual Frequency
Type of Network
Gigabit Ethernet
Field
Internet and on-Line Gaming
Chipset
Realtek 8812bu
Standard
IEEE 802.11b/G/N
Transmission
150Mbps
Frequency
2.4GHz 5.8GHz
Speed
1200Mbps B/G/N
Antenna Gain
2dBi/5dBi/6dBi
Adapter Socket
USB2.0 USB3.0
Dimension
4.7*1.2*17.3mm
APP System
Android/Ios
Network
WiFi
Transport Package
Clamshell Packing, Printing Polybag, Gift Box
Specification
UL, CE. RoHS, Inmetro, NCC
Trademark
Fulsan
Origin
China
HS Code
854442
Production Capacity
10, 000, 000PCS Per Month

Product Description

Wireless Dual Band USB Adapter
Features:
• Supports 802.11ac standard
• Compatible with 802.11b / g / n wireless devices
• Transmission rate, 2.4GHZ/300Mbps, 5GHZ/866Mbps
• Supports WPA / WPA2 / WEP / 802.1X / WMM encryption
• Operation system: Windows ME/98SE/2000/XP/Vista;Linux;MAC , Windows 10
• Strong anti-interference ability
• Supports WPS button
HARDWARE FEATURES
Interface USB 3.0
Chipset Realtek 8812BU
Antenna Type Dual band 5DBI Antenna
WIRELESS FEATURES
Wireless Standards IEEE 802.11ac, IEEE 802.11a,
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency 2.412~2484GHz/5.15~5.825GHz
Signal Rate 5GHz
11ac: Up to 867Mbps(dynamic)
11a: Up to 867Mbps(dynamic)
2.4GHz
11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Reception Sensitivity 11a 6Mbps:-88dBm
11a 54Mbps:-71dBm
11ac HT20:-65dBm
11ac HT40: -60dBm
11ac HT80:-56dBm
11b 11Mbps:-90dBm
11g 54Mbps: -73dBm
11n HT20:-71dBm
11n HT40:-68dBm
Transmit Power <20dBm (EIRP)
Wireless Modes Ad-Hoc / Infrastructure mode
Wireless Security Support 64/128 bit WEP, WPA-PSK/WPA2-PSK, 802.1x
Modulation Technology DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM
System Requirements Windows XP/Vista/7/8/10, Linx2.6X;Mac OS X
Environment Operating Temperature: 0ºC~40ºC (32ºF~104ºF)
Storage Temperature: -40ºC~70ºC (-40ºF~158ºF)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
