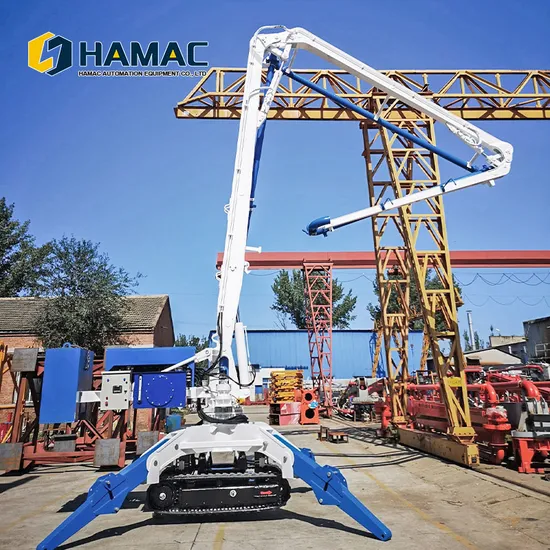

Hgy13 Affordable Small Spider Mobile Concrete Distributor Concrete Placing Boom for Sale

US$6,000.00-59,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
HGY13
Type
Spider Placing Booms
Machining Process
Hydraulic
Certification
ISO9001: 2000, CE
Condition
New
Color
Customizable
Max. Placing Radius (M)
13
Big Arm Length (M)
3.7
Medium Arm Length (M)
4.52
Medium Arm Elevation (°)
0-180
Small Arm Length (M)
4.78
Hose Length (M)
3
Tail Rotary Radius (M)
2.72
Total Power (Kw)
4
System Pressure (MPa)
24
Rotary Range (°)
0-360
Transport Package
Nude Packed in Container
Trademark
HAMAC
Origin
China
HS Code
84134000
Production Capacity
20 Pieces/Month

Packaging & Delivery

Package Size
760.00cm * 168.00cm * 110.00cm
Package Gross Weight
1200.000kg

Product Description

Item HGY13 HGY15 HGY17 HGY21
Max. Placing Radius (M) 13 15 17 21
Big Arm Length (M) 3.7 6 6.66 6.496
Big Arm Elevation (°) -2~84.4 0~70 0~65 0~65
Medium Arm Length (M) 4.52 5 5.73 4.585
4.59
Medium Arm Elevation (°) 0~180 0~180 0~180 0~180
0~180
Small Arm Length (M) 4.78 4 4.61 5.029
Small Arm Elevation (°) 0~180 0~180 0~180 0~180
Hose Length (M) 3 3 3 3
Concrete Delivery Pipe (Mm) Ø125×6 Ø125×6 Ø125×6 Ø125×6
Tail Rotary Radius (M) 2.72 2.81 3.51 3.51
Total Power (Kw) 4 4 5.5/7.5 11
System Pressure (MPa) 24 24 24 24
Rotary Speed (R/Min) 0.3-0.8 0.3-0.8 0.3-0.8 0.3-0.8
Rotary Range (°) 0~360 0~360 0~360 0~360
Supporting Legs Span (M) 3.15×3.15 4×4 4.6×4.6 4.6×4.6
Overall Height (M) 2.9 2.6 3.2 3.2
Bare Machine Weight (Kg) 2700 3230 5000 10000
Balance Weight (Kg) 2×900 2×1100 2200 2×2500
Control Mode Panel/ Wireless Remote Control Panel/ Wireless Remote Control Panel/ Wireless Remote Control Panel/ Wireless Remote Control

★ Why should you buy from us not from other suppliers?
Over decades experience in construction & mining machinery,
Professional sales team and technical support;
Abundant export service & logistic service;
Several professional production bases to provide you with goodquality machine in short time.
★ What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,DAF;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Western Union;
Language Spoken:English,Chinese,Spanish,French,Russian
