1bjx Series Middle Duty Disc Harrow/Disc Harrow for 30-80HP Tractor/Tractor Trailed Disc Harrow

Product Description

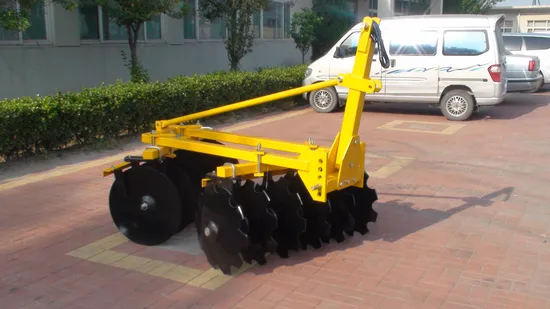

1BJX series of Middle duty disc harrow
Disk harrow is mainly applicable to clean the crop residue before tillage, break the hardened a break the hardened soil and return the chopped straw to the soil, and also can crash the soil after tillage and level the land.
It can be used as tillage machine instead of plow on the cultivated land. With the efficient productivity, reasonable utilization of the power, great ability of cutting and shattering the soil, the soil surface is smooth and loosening after harrowing, it is well suitable for heavy clay soil, waste land and weedy field as well.
It is a mounted medium disc harrow for 30-80hp tractor.
Notched disc blade of this tractor offset disc harrow in front, and flat plough disc in rear.
Fit the scraper for each disc blade to clean the objects.
The working depth can be adjusted freely.
65Mn spring steel disc blade, HRC: 38-44.

Model	Unit	1BJX-1.6	1BJX-1.8	1BJX-2.0	1BJX-2.2	1BJX-2.4	1BJX-2.5
Working width	mm	1600	1800	2000	2200	2400	2500
Working depth	mm	140
Q'ty of disc		14	16	18	20	22	24
Total weight	kg	350	380	420	470	540	650
Matched power	hp	30	40	50	60	70	80
Linkage		Three-point suspension II type

a
RFQ:
Q:Are you trading company or manufacturer ?
A:We are factory.
Q:How long is your delivery time?
A:Generally it is 1-3 days if the goods are in stock.Or it is 7-15 days if the goods are not in stock, it is according to quantity.
Q:Do you provide samples ?Is it free or extra ?
A:Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q:What is your terms of payment ?
A:Payment<=3000USD, 100% in advance.Payment>=3000USD, 30% T/T in advance
,balance before shippment.
