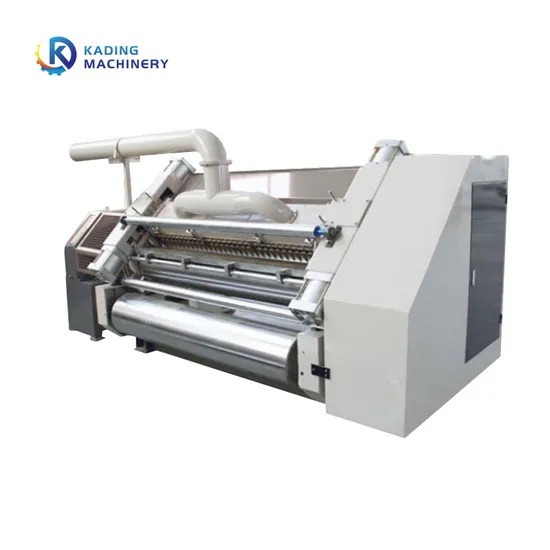

Vacuum Suction Fingerless Model Single Facer Corrugated Machine for Corrugated Paper Making

Product Description

Product Description
Vacuum Suction Fingerless Model Single Facer Corrugated Machine For Corrugated Paper Making
The corrugated 48CRMO alloy steel is used, and the surface hardness of the heat treatment is above HV1200.
The corrugated roller module is separated from the entire machine, which can be replaced by the overall lifting and replace the ascent type at any time.
The adhesive and fixed paste are designed as a group guide track and disassembling to shorten the maintenance time.
The main transmission of the frequency conversion motor, the independent driver box, and the three -axis transmission, which controls the acceleration of the corrugated machine by the inverter, and achieves a communication interface to achieve energy -saving effects in the future.
Both the corrugation roller and pressure roller bearing are high -temperature lubricating fat to ensure long bearings and smooth operation.
The closed gear transmission oil is soaked, the noise is small, the operation is stable, and the life of the gear is long.
The host is suspended, and the glue area is rotated to avoid drying the roller surface.
Configure the spray device to adjust the humidity of the original paper at will. The corrugated roller is made of special alloy steel of 48CRMO alloy steel, and the hardness is HRC58 ° -60 °
Oil oil lubricating gear box, low noise and universal transmission, and also separate power. Main motor conversion control (optional).
The vacuum suction system can provide a perfect flute shape even at high speeds, and the explosive volume controller is equipped.
The bearings of corrugated rollers and pressure rollers are lubricated by high temperature lubricating oil
The surface of the bonding roller is carved and chrome -plated by special mesh patterns. Automatic and periodic glue of glue unit. Product Parameters
Vacuum Suction Fingerless Model Single Facer Corrugated Machine For Corrugated Paper Making

Effective Width	1400mm-2500mm
Designed Speed	100m/min, 150m/min, 180m/min, 200m/min, 220m/min, 250m/min
Corrugated Roller Diameter	φ280mm, φ320mm, φ360mm, φ380mm, φ405mm
More details, please ask send us inquiry to get further discussion~!

Good Quality KD-CR Model Modular Single Facer for Corrugated Paperboard Production Line Cangzhou Kading Carton Machinery Manufacturing Co.,Ltd was founded in 2004 and is located in Dongguang County, Cangzhou City, Hebei Province. We are a manufacturing enterprise that produces carton making machinery.
Our company's self-produced product lines include carton printing machines, carton die-cutting machines, and carton slotting machines; our advantageous products include Carton stitching machines, Folder gluer machines, Flute laminating machines, Single facer machines, etc.
After nearly twenty years of sales and production experience, our product supply chain is already very mature, so we can help customers one-stop purchasing.
In addition to our own foreign trade business, our factory also cooperates with many trading companies, so our products are exported to dozens of countries such as the Middle East, Africa, Southeast Asia, and the European Union, and are well received by the majority. There are also many brand&branded manufacturers among our customers. You are welcome to cooperate with us~! Q: Are you a factory or a trading company?
A: We are a direct manufacturer that is located in Dongguang county, Cangzhou city. Welcome to visit our factory! We can also have video call if you'd like an online factory tour.
Q: How do you ensure your quality?
A: 1. Trustworthy and long-term cooperative raw material suppliers;
2. Skilled&experienced engineer&workers;
3. Mature QC system;
4. Specially-assigned merchandiser;
5. Advanced production workshop.
Q: How about your after-sale service?
A: 1. Special after-sale team will be 24/7 online;
2. Can guide the installation door-to-door;
3. One-year warranty for spare parts.

---
