Professional Manufacturer Rubber Kneader Dispersion Mixer Machine Hot Sale

Product Description

Professional Manufacturer Rubber Kneader Dispersion Mixer Machine
Usage
The rubber kneader is mainly used for plasticating and mixing rubber and plastics, and also applicable for mixing or kneading sticky materials.


Features

1. Sealing Device
The sealing system will keep the machine never leak powder.
2. Energy Consumption
Our machine can save the electricity about 15%
3. Mixing chamber
The inner working plane of the mixing chamber is in chrome treatment; and the bottom is equipped with the thermocouple for temperature detection.
4. Rotors
The overall surfacing of the rotor is made from the highly wear-resisting hard alloy; the end plate is specially designed with the anti-backflow rubber tank.
5. Rolling Mechanism
Adopting the spiral bevel double-geared reducer, the worm gear case will be almost unbroken in normal use.
6. Main Reducer
Us the hardened-gear reducer which specialized for roll-over mixer, it ensures the abrasion resistance.
7. Lubrication System
The rotor bearings and composite bearing bush are lubricated based on microcomputer automatic lubrication system.

Technical Parameters
Working volume of mixing chamber 75L
Batch feeding type rear feed
Main motor power AC110kw
Rotor type 2-wing tangential
Rotor speed(front/rear) 30/24.5 RPM
Chamber tilting angle 130°
Tilting motor power 4.0kw
Compress air pressure 0.6-0.8Mpa
Cooling water pressure 0.3-0.4Mpa
Overall dimensions (L×W×H) 3700×2300×3400mm
Approx. weight 10000kg

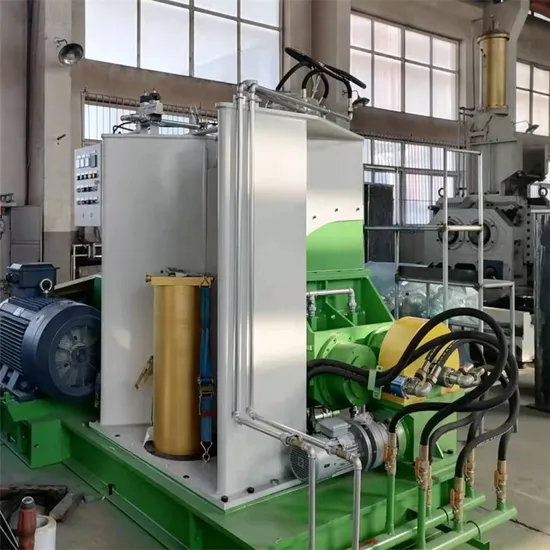

Products picture
FAQ
1 Are you manufacturer?
Yes,we are manufacturer with 15 years rich experience in China.
2 Can you design new machinery for us?
Yes,we have a professional technology engineers that we can make new machinery according to your requirements.
3 What's your payment term?
40% deposit by T/T,the balance 60% paid off by T/T before delivery.
4 Are you near to Qingdao airport?
Yes,only 1.5 hours to our factory.
5 Do you have any certificate of your products?
Yes, we have CE, SGS etc.
Contact:
Our Rubber kneader / Dispersion mixer machines have been exported to many countries, such as America, Portugal, Chile, Peru, Argentina, Indonesia, etc . and our customers gave us high comments.
If you are interested in our products, please send us inquires or send email to us, we will provide detailed information with good quotations to you.
Thank you very much for your attention!

---
