Newest Aquatic Plant Harvesters with Storage Cabin for Cut Vegetation in Waterways

Product Description

AQUATIC WEED HARVESTER&TRASH SKIMMER

AMPHIBIOUS HARVESTER

MULTIFUNCTIONAL DREDGER

REMOTE CONTROLLED LIFEBUOY

Newest aquatic plant harvesters with storage cabin for cut vegetation in waterways

RELONG AQUATIC WEED HARVESTER MANUFACTURER
Aquatic weed harvester is 10 times more efficient than manpower

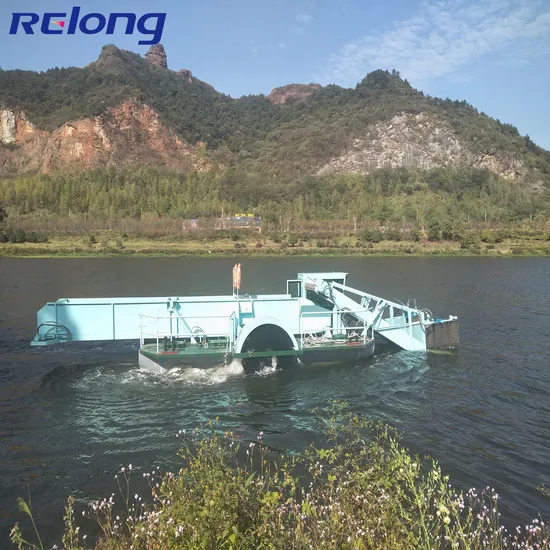

Relong-tech aquatic weed harvester offer an environmentally sound method of controlling excessive aquatic plant growth and nuisance vegetation in waterways of all sizes. These heavy duty work boats are highly efficient in the management of submerged, emergent and free floating aquatic vegetation. All the gathering,collecting,draining,and discharge work are fully automatic.

Model	RL-AWH700	RL-AWH900	RL-AWH1300	RL-AWH1600	RL-AWH2100
Overal Size(LxWxH)m	7.3x2.4x2.7	9.5x3.6x2.8	13.5x4x2.8	16x4.5x4.2	21x6x5.3
Hull Size(LxWxH)m	4.3x1.9x0.9	6x2.8x1	8x3x1	9x3x1	11.6x1.8x1.5
Draft Empty(m)	0.2/0.55	0.3 / 0.6	0.3 / 0.7	0.3 /0.7	0.5/1.1
Weight(kg)	1590	5000	8080	9500	20200
Cutting Width	1.5m	2m	2.5m	2.5m	3.0/1.8
Cutting Depth	1.2m	1.5m	1.5m	1.5m
Engine	Weichai(Yanmar optional)	Weichai(Cummins optional)	Weichai(Cummins optional)	Weichai(Cummins optional)	Weichai(Cummins optional)
Engine Power	25kw	35kw	75kw	90kw
Loading Capacity	2.8m3	5m3	9m3	15m3
Sailing Speed	6-8km/hr				10km/hr
Hull Material and Structure	Carbon steel/ stainless steel/aluminum(optional)		Carbon steel/ stainless steel/aluminum(optional) Split Barge
Conveyor Belt Material	stainless steel mesh&galvanized steel mesh belting

PRODUCT FEATURE

1. Easy operation,high degree of automation
2. Wide collection range,smaller corner of garbage salvage
3. Safe operation, wide seaworthiness area
4. Sailing speed is fast

PRODUCT DETAILS

The ship plates, ribs, longitudinal and transverse beams, bulkheads and other materials used are all made of CCSB marine special steel plates, and the deck is welded with anti-skid plates and coated with wear-resistant paint.
The ship is designed as a frame structure. The center bottom keel, reinforced keel, starboard and starboard side keels, reinforced ribs and bulkheads, etc., all meet the size requirements of the inland waterway design code.
Model: Weichai (Cummins can optional)
Engine power: 25kw / 35kw / 75kw / 90 kw /179kw
Cooling way: Water Cooled
Fuel tank: 150L/500L/650L/800L/1000L
Fuel consumption: 6-12L/hr
Emission class: Euro II /stage IIIB/tier4
Hydraulic pump: 1 set/3 sets gear pump
Cooling way: single cooler
Hydraulic System Protection:
Relief valves, low oil & clogged filter sensors shall be provided for better working of the hydraulic system.
The paddle wheels control the forward, backward, U-turn and turn of the equipment, and is infinitely variable speed.
The front collection compartment mainly includes longitudinal rotating swing arms, bottom side cutting scissors, stainless steel conveyor belts, etc.
RODUCTION PROCESS
WORKING AREAS
CUSTOMER CASES&VISITS
WELCOME TO OUR FACTORY
We were established in 1993, the earliest manufacturer of weed harvester in China.
We have 4 production bases and 1 experimental center.
PACKING&DELIVERY
OUR CERTIFICATION
RELATED PRODUCTS
FAQ
1. Are we manufacturer or trading company?
We are the manufacturer of these heavy duty work boats, our factories are located in Qingzhou and Lianyungang city.
2. What services can we provide?
We are committed to providing you the environment sound method of controlling excessive aquatic plant growth and harmful vegetation in waterways of all sizes. It's turnkey total solution,include product research and development,ship design,production,installation and after-sales services etc.
3. How many years it can use?
About 10 years long service life
4. How can we guarantee quality?
★ 30 + Years Experience Professional Manufacturer
★ 30+ People Professional R&D Dept + 5 PHD team
★ 20+ International Approvals
5. How often should we harvest weeds in our lake?
For optimal weed control,2 harvesting a year approximately 6 weeks apart.
6. How does harvesting affect fishing?
Fishermen on the lakes tell us that fishing improves in areas that we have harvested.
