New Design Automatic Hard and Soft Biscuit Production Line Cookies Making Machine

Product Description

New design Factory Price Automatic Hard and Soft Biscuit Production Line cookies Making Machine
Application of hard&soft biscuit cookie making machine
This machine is available for all kinds of biscuits( Hard and Soft biscuit, Soda Cracker, Cookies, also Stick biscuit, Print biscuit and Chocolate filling biscuit), different shape biscuit just require to change the mould ,we also can design the mould for you as per your details.
Features of hard&soft biscuit cookie making machine

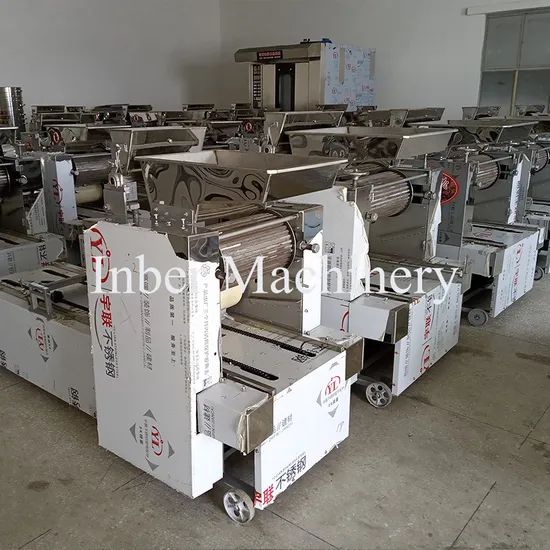

1. This line include the dough mixing machine, biscuit making machine and the hot-wind rotary oven. This new type biscuit making machine is used for roller printing forming for walnut cake, which makes semi-finished biscuits of various shape and weight through roller printing.

2. This machine adopt stainless steel as the material, which fit for the food standard class to make sure the food safe. It can change the different moulds to produce different shapes. Simple structure and have the wheels on the bottom of the device, easy to move.

3. The split had the adjustment mechanism, through which, the blade can be adjusted to optimized position. The printing roller has a special design to eradicate the problem of unevenness during splitting due to blade wearing out. The embossed roller is located in approximately vertical position for the convenience for replacement.
Different moulds to get different shapes&sizes
Parameters of hard&soft biscuit cookie making machine

Model	IB 200	IB 400	IB 600	IB 1000
Capacity	200 KG/H	300 KG/H	500KG/H	900KG/H
Roller size	180 mm	248 mm	248 mm	268 mm
Power	2.5 kw	3.8 kw	5.5 KW	8.4 kw
Dimension	1850*780*1300mm	2300*780*1300mm	2400*980*1320mm	2600*1200*1400mm

We also can provide a whole production line for biscuit making machine
Consist of a biscuit line
1.Horizontal dough mixer
2.Automatic dough tipper and feeding system
3.Three-roll combination sheeter for feeding and sheeting the dough
4.Laminator for overlapping dough to sheeting on gauge rolls, included cream spreading machine.
5.Gauge rolls
6.Rotary cutting machine for hard biscuit forming
7.Scrap collection and return system
8.Rotary moulder for soft biscuit forming
9.Salt/sugar spreading machine
10.Tunnel oven.Three kinds of heating source: Electric, Natural Gas, Liquefied Petroleum Gas.
11.Oil spraying machine
12.Turning machine 180degree or 90degree design as per the plant length
13.Cooling conveyor
14.Biscuit stacking machine
15.Packing table
