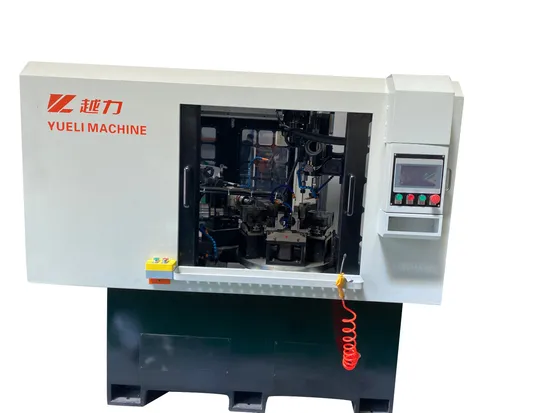

Faucet/Plumbing Fittings Hardware for Processing Drilling Compound Machine

Product Description

Faucet/Plumbing Fittings Hardware For Processing Drilling Compound Machine
I.Main advantages of equipment configuration
1.Steel tapping:go-on go gauge(After many trials, the domestic system can not stably realize the general rules and regulations. The Taiwan Hust CNC system is used with the Beijing CTB spindle servo motor).
2.The dia of the spindle sleeve is 105, and the spndle taper is BT40, which can be used for heavy-duty cutting.
3.Chip removal method:Automatic chip removal system can effectively collect copper chipes.
II.Technical Parameter

No.	Main configuration		Technical parameter	Qty	Brand	Remark
	Item	Name
01	X axis	X axis servo motor	1.5KW	1		Max route of X axis is 550m Max speed is 20m/min
		X axis ball screw	R3210	1
		X axis rail line	RGH30HA	2
02	Y axis	Y axis servo motor	Power 1.5KW	1		Max route of Y axis is 300mm. Max speed is 20m/min
		Y axis ball screw	R3210	1
		Y axis rail line	RGH30HA	2
03	Z axis	Z axis servo motor	Power 2KW	1		Max route of Z axis is 300mm. Max speed is 20m/min.
		Z axis ball screw	R3210	1
		Z axis rail line	RGH35 HA	2
04	Bedside box		Spindle power:5.5KW Spindle rotate speed:10-3000r/min Qty:10 axis Dia of spindle sleeve:105 Taper:BT40 Spindle barrel extension stroke:100mm	1	Yueli	Beijing CTB
05	CNC rotating table		Dia of disc:φ160mm Segmentation accuracy:±15″ Reproducibility:±4″	1 set	Yueli

III.Production workshop
IV.Package and Loading
V.Certificate:
Quanzhou Yueli Automation Equipment Co.,Ltd was founded in 2013,which covers an area of 3000 square meters. The company is located at the China Plumb Town--Nanan, Fujian. It is a production enterprise lead by drilling tapping compound machine, drilling tapping centers and drilling tapping milling process center. The company is committed to serving various of industries such as sanitary ware, fire protection valves, hardware, electrical hardware, aerospace, machine manufacturing and so on.
If you have any interest, pls feel free to contact at any time.

---
