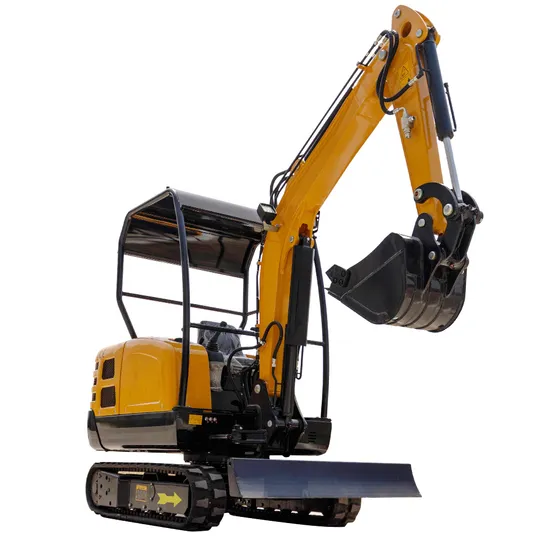

High Configuration Version CE EPA 2.2 Ton Chinese Mini Excavator Digger

Product Description

2.2 ton Excavator (22)
Product Parameters

Machine Size		Track System
Overall dimension (L*W*H)	3865*1050*2270mm	Maximum Travel speed	3.5 km/h
Axle base (Track length on ground)	1230 mm	Width of track shoe	230 mm
Track gauge	820 mm	Number of track shoe per side	38 pcs
Min.Ground clearance	210 mm	Number of upper roller per side	0
Swing radius at tail	1125 mm	Number of bottom roller per side	4
Performance Parameter		Working Range
Standard bucket capacity	0.06 m³	Max. Digging height	3365 mm
Swing speed	10-12 rpm	Max. Dumping height	2385 mm
Max. Grade ability	35°	Max. Digging depth	2050 mm
Max. Bucket digging force	14 KN	Max. Vertical digging depth	1725 mm
Max. Arm digging force	10 KN	Max. Digging radius	3860 mm
Hydraulic system pressure	18 Mpa	Min .swing radius	1720 mm
Machine weight	2200 kg	Max. Lifting height of blade	230 mm
Arm length	1000 mm	Max. Cutting depth of blade	275 mm
		Boom swing angle(Left)	75°
		Boom swing angle(Right)	45°
Engine
Engine Model	Laidong / Kubota	Emission Standard	Euro 5
Engine Power	18.4 KW / 14.2 KW	Number of cylinder	3

Product Description



The 2.2 ton agricultural mini excavator in the excavator is simple in operation and reliable in quality.
It is also designed by itself.

The surface is sprayed, the appearance is beautiful, the working radius is small, and it can work in a small area.

A wide range of operations, such as rotary drilling, breakers, loading buckets, grippers and other accessories.
Mini excavator suitable for agricultural orchards, greenhouses, etc.
It is also suitable for indoor damage, basement and other places. It has the characteristics of easy operation, low maintenance cost and good equipment stability.
Company Profile

Packaging & Shipping
FAQ
1.What kind terms of payment can be accepted?For terms of payment, L/C, T/T, Western Union (can be) could accepted.2. What certificates are availble in Machinery?For the certificate, we have ISO,EPA,SGS and CE.3.What about the delivery time?7-20 days after receiving the deposit.4.What about the warranty time?12 months after shipment or 2000 working hours, whichever occurs first.5.What about the Minum Order Quantity?The MOQ is 1 pcs.
6.How to show your manufacture to customers?It depends on you,if you have time,you can come to visit our manufacture. If you do not have time,then we can have vedio call,then show you around our workshop. Our workshop is working from 8:00 am to 5:00pm in Beijing Time!

---
