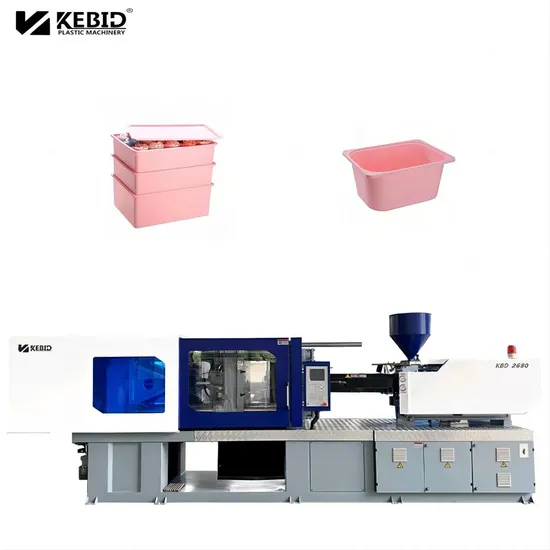

Automatic Stretch Molding Machine 238ton Kebida

Product Description

Product Description
Product Parameters

SPECIFICATION ITEM		KBD2380
Injection unit	Unit	A	B	C
SCREW DIA	mm	50	55	60
SHOT VOLUME (THEORETICAL)	cm3	471	569	678
INJECTION WEIGHT(PS)	g	433	523	623
INJECTION PRESSURE	Mpa	186	154	120
SCREW SPEED	rpm	0-170
CLAMPING UNIT
CLAMPING FORCE	KN	2380
TOGGLE STROKE	mm	475
SPACE BETWEEN TIE BARS	mm	520*520
MAX.MOLD HEIGHT	mm	550
Min.MOLD HEIGHT	mm	230
EJECTOR STROKE	mm	140
EJECTOR TONNAGE	KN	62
OTHERS
PUMP MOTER POWER	Kw	22
HEATING POWER	Kw	16.2
MACHINE DIMENSION(L*W*H)	m	5.6*1.5*2.2
MACHINE WEIGHT	T	6.5

Our Advantages

KEBIDA broned popular mini small plastic injection molding machine price
Kebidplas machinery has independently developed and made the KBD series plastic injection molding machine,having the characteristics and advantages with beautiful appearance,strong calming force,high precision,low noise ,energy saving and low consumption.KBD series energy-saving servo injection molding machine.
Plastic injection molding machine can apply the following materials: PP/PE/PET/ABS/PPR/PA/PC/PS/PVC/PPR/TPR/TPE/PU/POM/PLA/PMMA and other plastic materials. But the structure of the machine is different for different materials. The price is also different. Need to contact us to confirm the price.
Give us the drawings or photos and dimensions of your products, and we can recommend suitable machines to you.
Please check the details of the machine:
QUESTIONS:
Q1:How can I talk to you?
A:Please send the inquiry on the platform.
Q2:Can the price a little lower?
A:If you need,talk with me.
Q3:How is the after-sales service like?
A:We have perfect after-sales service.

---
