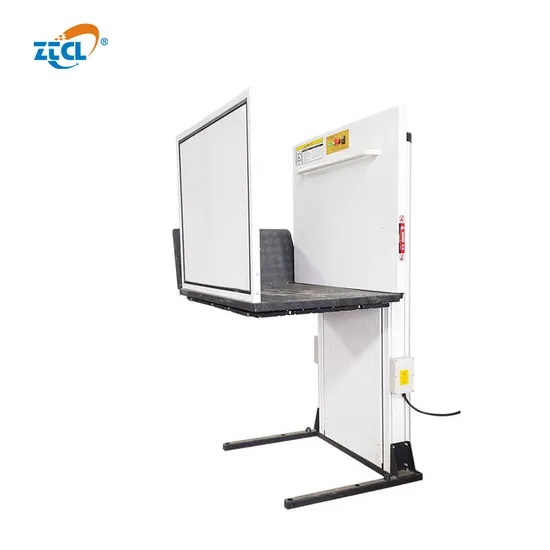

Ztcl Cheap Residential Lift Wheelchair Hydraulic 350kg Passenger Elevator with CE

Product Description

Product Description
Aluminum Wheelchair Lifts are made with aluminum alloy guiderails which is lighter and more stable. No welding working, all parts can be assembled easily. Can be used indoors or outdoors and never rust because of its specical material. Looks more beautiful then traditional steel plate. Vertical wheelchair platform lift is custom built lifts for the disabled and mobility impaired. These can range from one lower floor to another, also can delivery heavy goods. Our lifts are designed to suit the application and are custom built for home, indoor and outdoor of public building.

Product Parameters

Model	ZTVL Vertical home wheelchair lift table
Lift height (H)	0.8--1.2m	1.3-1.8 m	1.9-2.4m	2.5 -3.2m
Total height:	H+1.05	H+1.05	H+1.05	H+1.05
Ground distance	80MM	80MM	80MM	80MM
Dimension	1300*1400mm
Platform size (Customized)	1000 X1200 mm
Load capacity (kg)	350	350	350	350
Color	white	white	white	white
Voltage AC 50HZ	220V	220V	220V	220V
Power	1.1KW	1.1KW	1.1KW	1.5KW
Additional Note: Second floor door; Silent motor:platform door; Auto ramp;
Max Lift Height:10 m

Detailed Photos
Our Advantages
1. Aluminum Alloy material with great anti corrossion function.
2. High quality pump station make the wheelchair lifts and falls very stably.
3. Automatic Safety sensor at bottom stop lowering when come accorss barrier.
4. Electric magnetic lock works during lifting and lowering to guarantee safety.
5. Heavy duty cylinders with drainage system and check valve to stop the scissor lift table lowering in the case of hose burst.
6. Pressure relief valve prevent overload operation; Flow control valve make descent speed adjustable.
7. Brief structure make it much easier to operate and maintain.
Product show
Certifications
Company Profile

FAQ
Q1. What about the delivery time?
Answer: It usually takes about 10 working days after we receive the deposit.
Q2. What kind of payment do you support?
Answer: T/T, L/C, West Union, T/T is usually.
Q3. How to proceed an order for the lift?
Answer: Firstly, tell us your requirements, if you can send a photo where you will use the lift, it will be better.
Secondly, we send you our suggestions and quote according to the practical.
Q4. How to transfer the lift machine?
Answer: It is usually shipped by sea. Plywood package and LCL in a 20' container.
Q5. Is it OK to print my LOGO on the lift?
Answer: Yes. Please inform us formally before our production and send us your high pixel LOGO.
Q6. How can I get the after-sales service?
Answer: Contact with us if you have any question or need professional support. We will try to solve your problem in 24 hours, and arrange the delivery of spare parts in 48 hours.

---
