Pre-Accelerated Sheet Polyester Vinyl Ester Resin for Vacuum Infusion Boat Hull Application, Anti Corrosion, General Purpose

Product Description

Product Description
Brief introduction:
Epoxy vinyl ester resin is prepared by the chemical reaction of epoxy resin and methacrylic acid through ring-opening addition. It retains the basic segment of epoxy resin, and has the good process performance of unsaturated polyester resin. After curing under suitable conditions, it shows some special excellent properties.
Features:
The standard bisphenol A epoxy vinyl resin is a vinyl resin synthesized by the reaction of methacrylic acid and bisphenol A epoxy resin. It has been dissolved in styrene solution. The specific molecular structure is shown in the figure below.Properties:

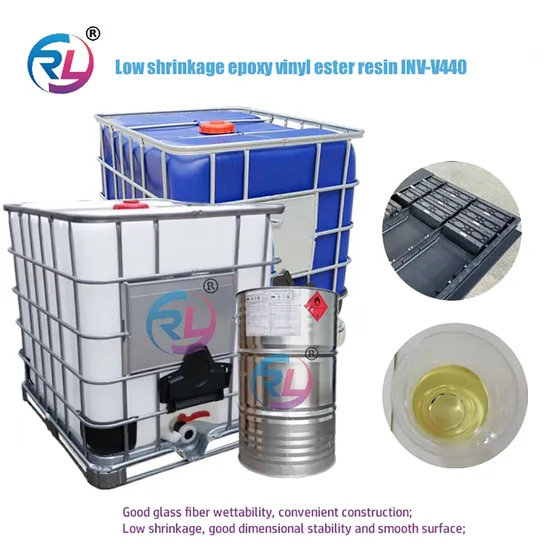

INV-V440 is a pre-accelerated, pre-thixotropic, low shrinkage vinyl resin with the following characteristics:
1. Good glass fiber wettability, convenient construction;
2. Low shrinkage, good dimensional stability and smooth surface;
3. High toughness, crack resistance, high heat resistance temperature, and excellent strength retention rate at high temperature.
Matters needing attention:
1. The transportation shall comply with the regulations on the transportation and handling of hazardous chemicals in Chapter V of the State Council's "Regulations on the Safety Management of Chemical Hazardous Substances".
2. The product should be stored in a cool place below 25ºC, avoid fire and isolate the heat source.
3. The shelf life is 3 months under the specified storage conditions.Product Parameters
Liquid resin properties (25ºC):

Project	INV-V440	Testing method
Appearance (visual inspection)	purple cloudy liquid	GB/T 8237
Viscosity (mPa.s)	250-350	GB/T 7193
25ºC gel time (min)*	15-55	GB/T 7193

*The curing agent uses AKZO M-50, and the dosage is 2%.
Physical properties of resin castings:

Project	Test value	Testing method
Tensile strength (MPa)	80	GB/T 2567
Tensile Modulus (GPa)	2.9	GB/T 2567
Elongation at break (%)	4.5	GB/T 2567
Bending strength (MPa)	125	GB/T 2567
Flexural Modulus (GPa)	3.0	GB/T 2567
Impact toughness (KJ/m2)	15.5	GB/T 2567
Barco hardness	38	DSC 10ºC/min
Heat distortion temperature (ºC)	105	GB/T 1634

Note: 1) the casting system sample method is implemented according to GB/T 8237;the casting body curing system: curing agent M-50 1.5%; 2) Post-curing treatment of the casting body: room temperature × 24 hours + 60 ° C × 3 hours + 120 ° C × 2 hours.Our AdvantagesRecommended Products

Item No.	Gel Time(25ºC)Min	Chemical Category	Features	Application
INV-V411	10-17	Bisphenol A	Excellent construction technology; excellent corrosion resistance, good corrosion resistance to general acids, alkalis, salts and organic solvents; high solid content, excellent mechanical and mechanical properties	Chemical anti-corrosion equipment, engineering, sporting goods, transportation.
INV-V411M	8-18	Bisphenol A	Standard bisphenol A type epoxy vinyl ester resin. Excellent construction technology, excellent corrosion resistance	Widely used in chemical engineering of many chemical media such as acid, alkali, salt, organic solvent and pipes, tanks, towers, tanks, pools in industry.
INV-V411W	20-30	Bisphenol A	Excellent corrosion resistance, combined with performance and cost advantages, with better price/performance ratio	Anticorrosion equipment and engineering in conventional chemical industry.
INV-V411L- GXX	30-120( can be customized)	Bisphenol A	Has lower viscosity, adjustable gel time, lower exothermic peak	Vacuum infusion molding process to prepare composite products, such as boats, wind power fields
INV-V416	8-14		High reactivity, heat resistance, excellent toughness	Rapid pultrusion to prepare rods, cores, pipes and other products
INV-V440	15-55		Low cure shrinkage, pre-acceleration, anti-sag	Preparation of composite molds, or composite products with low shrinkage requirements
INV-V480	----	Mgo Thickening	High reactivity, thickening with magnesium oxide	SMC molding process to prepare battery shells, fan impellers, etc.
INV-V495	----	Mgo Thickening	High toughness, magnesia thickener	Used together with low shrinkage agent, it can prepare products with low shrinkage, high strength, high toughness, high heat resistance and heat aging resistance, etc. It is suitable for BMC, SMC, prepreg and other molded products. e.g. composite toe caps, helmets.
INV-V650	30-60(can be adjusted based on the accelerator content)	Halogen Free Flame Retardant	Halogen-free, in addition to the corrosion resistance of conventional epoxy vinyl ester resins, it also has good flame retardancy. It is an integrated solution product with anti-corrosion and flame retardant properties.	Mainly used in corrosion-resistant equipment with flame retardant requirements, such as wet electrostatic precipitators in thermal power plants, chimneys, etc.
INV-V470	10-30	Phenolic Aldehyde	Phenolic modified epoxy vinyl ester resin, high crosslinking density, HDT=145 ºC, has more excellent heat resistance and corrosion resistance; especially in acid oxidizing environment, it has long-term resistance.	Heavy-duty anti-corrosion fields with strong corrosiveness and high temperature in chemical engineering and industry.

Company ProfileFounded in 2002, Changzhou Rule Composite Material Co., Ltd, is a enterprise engaged in in manufacturing high-performance unsaturated polyester resin, gel coat, glass fiber reinforced composite materials and other related products, also professional in research, development as well as technical consulting and services of composite materials.
Rule Composite Material covers an area of 50, 000 square meters, with a modern office building, an independent R& D center and a high-standard production workshop, equipped with the leading DCS automatic control production device. We also have a strong and advanced quality control department and technical support laboratory.
RULE focuses on the production of excellent-quality and creative-design resin products, so it is trustworthy. Our sweat and wisdom witness the footprints of yesterday's struggle, passion and dream fulfill today's victory. Forging ahead to make innovation in market economy, pursuing value of "innovation, creativity, sharing" in practice, it harvests a stream of praises and honors.
Packaging & Shipping
FAQ1. How can I get a sample?
Small quality of sample in stock will be free, but the freight will be charged.
2. Are you able to adjust the formula to meet our requirement?
We have our own technical department, after you test the sample, please tell us your detailed requests, we are able to adjust the resin according to your requests, and bring better properties to your finished products.
3. What is the lead time for mass production?
Honestly, it depends on the quantity. We will try our best to make the production plan according to your ETA.
4. What is your terms of payment?
100% full payment for the 1st trial order; from next order, 30% payment in advance, 70% payment after buyer get the B/L copy. We also accept L/C if you need.

---
