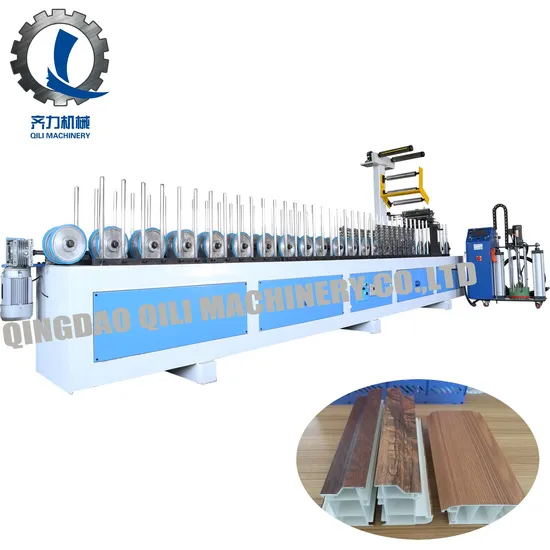

PUR Profile Wrapping Machine for PVC/WPC Wall Panel

Product Description

Product Description
aluminum/Plywood/MDF panel PVC film sticking laminating machine
This machine is special for Wrapping PVC / high glossy PVC / leather / paper /veneer /aluminum foil / Leather / CPL on MDF, particle board, plywood ,PVC ,WPC ,aluminum, plastic steel.And it is mainly for different angles, ARC, roughness and the edges to get excellent performance. What's more, PUR glue has the features of anti-aging, anti-UV which makes it to be the top choice for outdoor.
Technical parameters
aluminum/Plywood/MDF panel PVC film sticking laminating machine

Maximum film covering width			300mm
Maximum process thickness			90mm
Conveying power			1.5kw
Power of the heating gun			800W*8
Conveying roller			23group*4
Pressing roller			104pcs
Conveying speed			0-28 meter/min
Single hole			100pcs
Double hole			100pcs
compression bar			100PCS
Machine size			7000*1350*2250mm
Machine weight			2000KGS
The Hot melt Glue barrel ( can be customized according to different requirement)
The specification of glue barrel			200kg /barrel (55 gallon)
Heating power			16kw
The max speed of motor			125rmp
Control system			PLC + Touched screen
The working temperature			10-250 degree
Max working pressure			10Mpa
Machine weight			500kg
Temp Accuracy			1 degree
Dimension			1600*1000*1900mm

Detail Information
aluminum/Plywood/MDF panel PVC film sticking laminating machine
1. This machine uses high quality steel and complete whole machine body, adopting high precision of the gear transmission.
2. All wheels are silicone rubber and aluminum featuring light weight and high strength, the silicone are good wear-resistance and proof of glue sticky, promise long use life.
3 .PUR system is in exact heating control and proof, dispense PUR hot melt material from one automatic slot nozzle gun for Profile Wrapping application.
4. Adopting high accuracy gear transmission instead of chain transmission.
Final Product
aluminum/Plywood/MDF panel PVC film sticking laminating machine
This photo shows wrap pvc film on PVC profile
Our factory
Qingdao Qili Machinery CO.,LTD has more than 12 years experience for produce Woodworking Machine (Paper and PVC laminating Machine, PUR Laminating Machine, Profile Wrapping Machine, CNC router and vacuum membrane press machine.)Our company makes great efforts in the design, development and manufacture of cover adorn machines for many years, and we have accumulated rich experience in products' research and development. We never stop to advance and pursuit best.The convenient economical design and durable subassemblies help customers use facility easily. We are ready to introduce advanced technology into our new products. For each machine, we really concern about its function and practicability. We believe a good reputation roots from strong quality guarantee. Only with best durable, reliable and credible quality merchandise could win customers' heart, and our present leading position in cover adorn machine field results from it.
After sale service:
One-year warrant for factory defeat,6 months warranty for electric components,we will change new parts under warranty free of charge,hower we don't take responsibilities for parts due to natural wear-out and operation by mistic or any misuses.We promise a whole-life after-sale maintenance and support,call us any time.
Note:Oversea customer may need to undertake the roundway tickets,provide acommodation and food for our after-sale stuff if need our stuff flies over,if not need we can only support you by email,videos,camera,ect.

---
