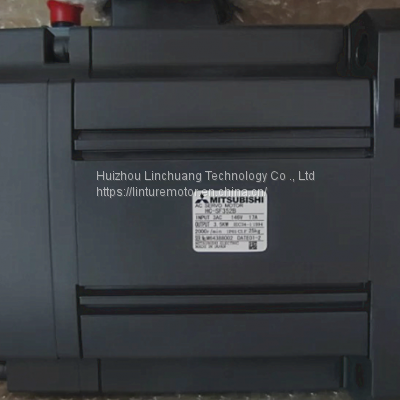

| Industiral Servo Motor | Model 1.:HC-SF352B | |
| 1Kw | Rated Current (A):6.1 | |
| 3000rpm | Brand:Mitsubishi | |
| ac servo motor,electric servo motor | ||
| Servo motor model | HC-MFS053 (B) | HC-MFS13 (B) | HC-MFS23 (B) | HC-MFS43 (B) | HC-MFS73 (B) | |
| Servo amplifier model | MR-J2S-10A/B | MR-J2S-10A/B | MR-J2S-20A/B | MR-J2S-40A/B | MR-J2S-70A/B | |
| Power facility capacity [kVA] | 0.3 | 0.3 | 0.5 | 0.9 | 1.3 | |
| Continuous characteristics | Rated output | 50[W] | 100[W] | 200[W] | 400[W] | 750[W] |
| Rated torque | 0.16[Nm] | 0.32[Nm] | 0.64[Nm] | 1.3[Nm] | 2.4[Nm] | |
| Maximum torque | 0.48[Nm] | 0.95[Nm] | 1.9[Nm] | 3.8[Nm] | 7.2[Nm] | |
| Rated rotation speed [rpm] | 3000 | 3000 | 3000 | 3000 | 3000 | |
| Maximum rotation speed | 4500 | 4500 | 4500 | 4500 | 4500 | |
| Permissible instantaneous rotation speed | 5175 [rpm] | 5175 [rpm] | 5175 [rpm] | 5175 [rpm] | 5175 [rpm] | |
| Rated current | 0.85 [A] | 0.85 [A] | 1.5 [A] | 2.8 [A] | 5.1 [A] | |
| Maximum current | 2.6 [A] | 2.6 [A] | 5.0 [A] | 9.0 [A] | 18 [A] | |
| Weight [kg] | 0.4 | 0.53 | 0.99 | 1.45 | 3 | |
| Common specifications MR-J2S-A/B | 10A 10B | 20A 20B | 40A 40B | 60A 60B | 70A 70B | 100A 100B | 200A 200B | 350A 350B | 500A 500B | 700A 700B | ||
| Power supply | Voltage / frequency | 3-phase 200~230 V AC, 50/60 Hz; 1-phase 230 V AC, 50/60 Hz | 3-phase 200 ~ 230 V AC, 50/60 Hz | |||||||||
| Permissible voltage fluctuation | 3-phase 200~230 VAC: 170~253 VAC, 1-phase 230 V AC: 207 ~ 253 V AC | 3-phase 170 ~ 253 V AC | ||||||||||
| Permissible frequency fluctuation | ±5% | |||||||||||
| Control system | Sinusoidal PWM control / current control system | |||||||||||
| Dynamic brake | Built-in | |||||||||||
| Speed frequency response | 550 Hz or more | |||||||||||
| Protective functions | Overcurrent shutdown, regeneration overvoltage shutdown, overload shutdown (electronic thermal), servomotor overheat protection, encoder fault protection, regeneration fault protection, undervoltage / sudden power outage protection, overspeed protection, excess error protection. | |||||||||||
| Structure | Self-cooling, open (IP00) | Fan-cooling, open (IP00) | ||||||||||
| Environment | Ambient temperature | Operation: 0 ~ 55 centigrade degree (no freezing), storage: -20~65 centigrade degree (no freezing) | ||||||||||
| Ambient humidity | Operation: 90%RHmax. (no condensation), storage: 90%RHmax. (no condensation) | |||||||||||
| Atmosphere | Inside control panel; no corrossive gas, no flammable gas, no oil mist, no dust | |||||||||||
| Elevation | 1000mor less above sea level | |||||||||||
| Oscillation | 5.9m/s2 (0.6 G)max. | |||||||||||
| Weight [kg] | 0.7 | 0.7 | 1.1 | 1.1 | 1.7 | 1.7 | 2.0 | 2.0 | 4.9 | 7.2 | ||
| Model | Variable dimensions | |
| L | KL | |
| HC-KFS053(B) HC-MFS053(B) | 81.5 (3.21) | 29.5 (1.16) |
| HC-KFS13(B) HC-MFS13(B) | 96.5 (3.80) | 44.5 (1.75) |
