Vad-2322 Portable Folding Walk Through Metal Detector

Product Description

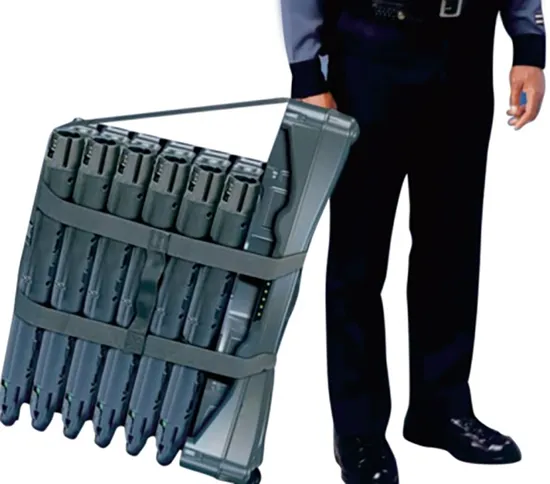

VAD-2322 Portable Folding Walk Through Metal Detector Product IntroductionThe VAD-2322 Portable Folding Walk Through Metal Detector is a versatile and efficient security solution designed for both indoor and outdoor use. Our company has earned multiple certifications, including ISO9001, ISO14001, OHSAS18001, and is recognized as a contract-honoring and credit-worthy enterprise. The VAD-2322 has also received various certifications such as CE, ROHS, FCC, and holds utility model and invention patents, ensuring its reliability and compliance with international standards.
This metal detector is widely utilized in critical sectors such as central government offices, national scientific research institutions, airports, judicial buildings, correctional facilities, public security departments, educational institutions, large-scale events, museums, transportation hubs, customs, diplomatic missions, scenic spots, and entertainment venues. It is also suitable for industrial applications, particularly in factories where the detection of electronics, hardware, precision components, precious metals, and jewelry is essential.
Key Features Three Separate Detection Areas: Each area can be adjusted to 300 sensitivity levels, ensuring precise and customizable detection. Self-Checking at Boot: The system performs an automatic fault diagnosis upon startup to ensure optimal performance. Automatic Settings Storage: Final settings are automatically stored at shutdown, and the system remembers the last environment and provides a sound prompt at shutdown. High Efficiency: The VAD-2322 offers efficient detection from head to toe, covering all critical areas. Quick Assembly and Disassembly: Can be assembled and disassembled within 5 minutes, making it highly portable and easy to deploy. Secure Control and Display: Equipped with a digital I/O keyboard, secure channel control, LED light bar display, and an LCD touch screen for easy operation. Automatic Counting: Features an automatic counting function with adjustable volume levels for sound and light alarms. Durable Construction: Made from ABS polycarbonate alloy, providing strong impact resistance and durability. Battery Operated: Includes a battery (with AC adapter and charging device) that can continuously work for 40 hours. Environmental Memory: Remembers the last environment and provides a sound prompt at shutdown. Compact Design: Disassemble size is approximately 90 x 58 x 66 cm, similar to the size of a suitcase, making it highly portable.
Technical parameters

Power Supply	AC 12V, 45.5Hz ~ 52.5Hz
Working Temperature	-20°C to 55°C
IP Grade	IP55, UV protection
Gross Weight	About 41kg
Humidity	95%
Standard	GB15210-2003
Inner Frame Size	2102(H) x 795(W) x 570(D) mm
Outer Frame Size	2250(H) x 970(W) x 580(D) mm
Package Size	1065(H) x 675(W) x 705(D) mm

---
