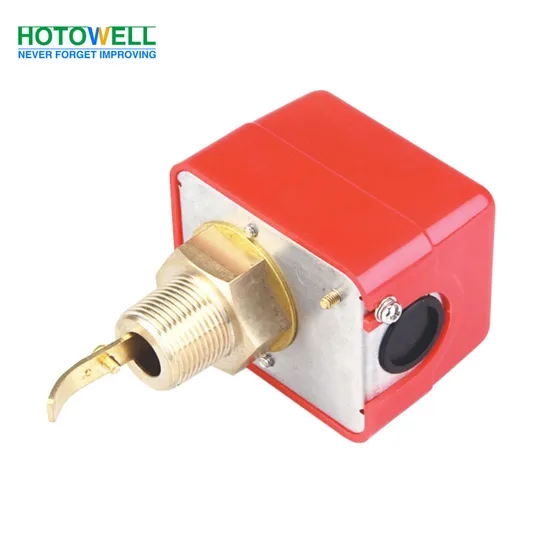

Hfs25 Honeywell Size 1/2~1 Inch Paddle Water Pump Flow Switch

Product Description

Banner

Product Description Hfs Honeywell Size 1/2~1 inch Paddle Water Pump Flow Switch
>> General
The paddle type SPDT HFS series are designed to provide excellent performance where accuracy, reliability, and rugged construction (IP54)are required used in liquid flow lines carrying water or any fluid neither harmful to brass and prosphor bronze nor classified as a hazardous fluids.
They can be wired to close one circuit and open a second circuit when liquid flow either exceeds or drops below the adjusted flow rate.
The series are recommended for liquid pressure and temperature as mentioned below and must not be used on lines carrying liquids below 0 degree C.
These series may be used on liquids with high salt or chlorine content but is not for use in hazardous atmospheres.
They may be also used outdoors but must be protected from weather or splashing water.
All series flow switches are designed for use only as operating controls.
Where an operating control failure would result in personal injury and/or loss of property, it is the responsibility of user to add safety devices that protect against, or supervisory systems that warn of control failure.
>> Specifications

Operating Pressure	10kgf/cm² (1MPa)
Withstand Pressure	17.5Kgf/cm² (1.75MPa)
Insulation Resistence	Over 100Ω, DC500VM
Withstand Voltage	AC1500V/1minute
Contact Point Life	1000K Cycle
Bellows Life	500K Cycle
Temperature of Fluid	Max 100°C (212°F)
Body Size	1"(HTW-WS-25), 3/4"(HTW-WS-20),1/2"(HTW-WS-15)

>> Dimension

Related Products

Packing
Packing details Unit Weight: 0.55KG/PC; 50 PCS/CTN; Gross Weight: 27.5KG; Paper box packing; Box dimension: 48*37.5*33.5 Delivery time : Shipped in 15-20 days after payment certifiates
