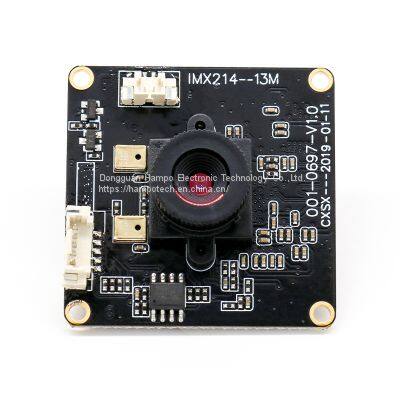

13MP Camera Module for Document Scanner 4K USB Camera Module USB Camera Module Manufacturers
Description:
13MP resolution,support 4192X3104 and YUV video streaming. Mini fixed focus lens USB camera ,true and no distortion color image. Widely used in document scanner, beauty equipment, education products, etc. During scanning, all the corners of the document is clear as the center part.
Key Features of 13MP Camera Module：
13MP Ultra HD Sony IMX214 USB Webcam:
13MP USB webcam with microphone，ultra HD advanced 1/3 Sony IMX214 sensor USB camera for high quality image. Max resolution is 4192X3104 USB camera module.
Plug-&-Play:
(UVC compliant),USB2.0 camera module with 1 meter USB2.0 cable(cable can be optioned). Embedded with 1/3” CMOS Imx214 image sensor for better picture performance. Supported OS:Win7/8/10,Linux,Mac,Wince and Android with UVC.Size:38x38mm.
SPECS:
Camera
Sensor: IMX214
Sensor Size: 1/3”
Resolution: 4192X3104
Output: MJPC/YUV
Frame Rate: 30fps/7fps
Lens
FOV: D=69°
TTL: 6.3mm
Construction: 5P
Mount: M12*P0.5mm
Power
Power Supply: DC 5V
Working Current: MAX 500mA
Physical
Operating Temp.: -4°F~158°F (-20°C~+70°C).
Dimension: 38*38mm
4K USB Camera Module Applications
Document Scanner;
Beauty Detector;
Education Products etc.
4K USB camera module ultra HD webcam module Widely use for high levels video system of education or administration like document scanning, smart e-blackboard, and big screen display etc. Support OEM&ODM.
