Introduction:

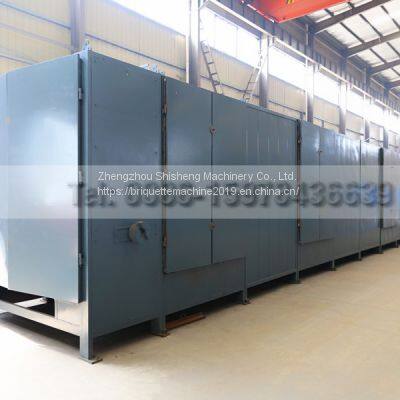

The mesh belt dryer is conceptually very simple. Product is carried through the dryer on conveyors and hot air is forced through the bed of product. It is often described as simply a conveyor in a box with hot air. The reality, however, is that the belt dryer is one of the most versatile dryers available. Few drying technologies can match the belt dryer’s ability to handle such a wide range of products. Products as varied in composition, shape, and size as coated breakfast cereals, nuts, animal feed, charcoal briquettes, and rubber can be dried in a conveyor dryer.
Advantage:
Themesh belt dryer is common continuous dryer equipment, it is widely applied in chemical, foodstuff, pharmacy, construction material, and electronic industry, and particularly it is adapt to dry the raw materials which have good air permeability and shaped in sheet, strip or granule. For ointment stuff, the wisest way to dry it is: shaped that stuff first, and then drying it.
how to dry charcoal briquettes
When operation, air will be entered into the dryer and heated through heat exchanger. Being adapted scientific and reasonable cycle method, the hot air will pas through raw materials to be dried on the bed and carry out uniform heat exchange. Under the action of cycle fan, the hot air stream inside each unit of the dryer will carry out hot air cycle. Final air with Iow temperature and high damp will be out. The whole drying process with stably and high effect will be finished.
Technical Parameter:
Model
| 1001
| 1503
| 2203
| 2205
| 2208
|
Single Effective Working Length
| 22.5m
| 30.5m
| 36.5m
| 36.5m
| 36.5m
|
Floors
| 1
| 3
| 3
| 5
| 8
|
Effective Working Width
| 50m
| 105m
| 180m
| 180m
| 108m
|
Accumulation thickness of materials
| 100-200mm
| 100-200mm
| 100-200mm
| 100-200mm
| 100-200mm
|
Dry Capacity
| 1-2t/h
| 2-3t/h
| 8-10t/h
| 10-15t/h
| 20-25t/h
|
Moisture Content Before Drying
| 8-12%
| 8-12%
| 8-12%
| 8-12%
| 8-12%
|
Moisture Content After Drying
| 1.5-3%
| 1.5-3%
| 1.5-3%
| 1.5-3%
| 1.5-3%
|
Transfer Power
| 2 kw
| 2 kw
| 3 kw *3
| 5.5 kw *5
| 5.5 kw *4
|
Air Temperature requirements
| 180-250°C
| 180-250°C
| 180-250°C
| 180-250°C
| 180-250°C
|
Hot Air Temperature and Content Requirements
| ≤0.01kg/kg dry air
|
