Vertical Knee-Type Milling Machine, Universal Rotary Head Milling Machine

Product Description

Vertical Knee-Type Milling Machine

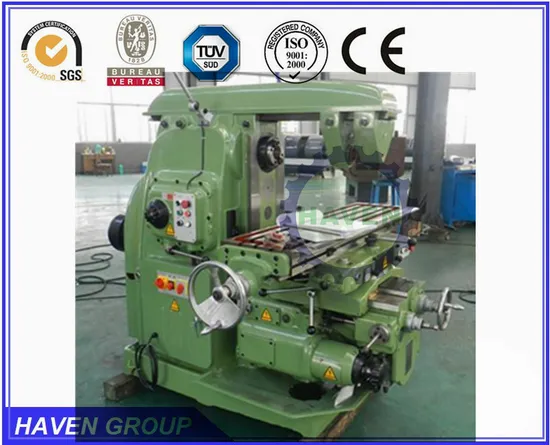

(Picture for reference)
The Vertical Knee-type milling machine is widely used in the machining workshop, with optional accessories as dividing head, rotary table, machine vice, milling chuck, Digital readout (2 dimensional or 3 dimensional).
Standard Accessories
Milling-cutter Mandrel
Milling-Milling machine with the middle set of taper
Milling machine mandrel(3sets)32#, 27#, 22#
Milling cutter Mandrel wrench,
Milling drawbars(2), Oil gun, wrench
Nut, Foundation screw
Optional
Vertical milling head
Dividing head
Milling chuck
Machine vice
Rotary table
Digital readout(2 dimensional or 3 dimensional)

Item	Parameter
worktable area(width*length):	320*1320mm
Max. longitudinal travel(manual)/(power)	700/680mm
Max. transversal travel(manual)/(power)	255/240mm
Max. vertical travel(manual)/(power)	370/350mm
T-slots(number of slot-width*pitch):	3-18*70mm
Distance between spindle to table surface	45-415mm
Spindle taper	7: 24/ISO50
Tool bar diameter	32-50mm
Spindle bore	29mm
vertical milling head max. swivel angle	± 45
Spindle axial travel	70mm
Spindle speed range	18steps: 30-1500rpm
Milling head motor	7.5KW
Feed motor	2.2kw
coolant motor	0.125kw
Package size(L× W× H)	2290× 1800× 2094mm
Machine Weight	2600/2900kg

WHY CHOOSE HAVEN BRAND MACHINE:
1) Hihg quality with competitive price
2) 15 years export experience
3) CE,SGS, ISO Certificated
4) OEM SERVICE AVAILABLE
5) 24 HOURS' ONLINE SERVICE (MSN,SKYPE)
6) 14 months quality warranty (after B/L date)
7) Over sea engineers available for problem shooting

Our Target: BRAND HAVEN
High quality;
Assured Delivery;
Vigorous innovation;
Efficient Cooperation;
Noblesse Oblige

---
