PM30 FINCM Heat Exchanger Tubesheet CNC High Speed Drilling Machine (3000*3000*150mm)

Product Description

Product Description

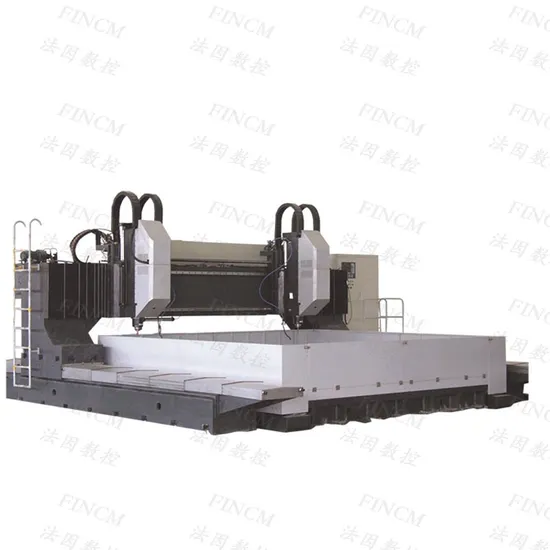

PM30 FINCM Heat Exchanger Tubesheet CNC High Speed Drilling Machine (3000*3000*150mm)
This machine tool is a rotary table CNC high-speed drilling machine, which is mainly used for the processing of flange parts. It is especially suitable for drilling on the flange end face of long shafts and for rigid tapping of holes; it can realize automation, high precision and multiple Variety, small and medium batch production.
This equipment is mainly composed of base, column, headstock, rotary table, fixture, chip removal system, cooling system, pneumatic system, centralized lubrication system, hydraulic system, electrical system and other parts.
Equipment advantages:
1. The spindle structure is a rigid and precise spindle type. It adopts an internally cooled spindle made in Taiwan. It is driven by a high-power spindle servo motor through a two-speed gearbox, which can achieve high-speed drilling with carbide drills and a wide range of speed adjustments.
2. The worktable is made of high-quality cast iron. The T-slot of the worktable is used to clamp the workpiece, and the center has a precision hole, which is coaxial with the center line of rotation. It can be used for the rotation angle and positioning of the workpiece.
3. This machine tool provides two cooling methods: internal cooling and external cooling, which provide sufficient lubrication and cooling for the tool and workpiece during chip cutting.
4. This machine tool is equipped with an automatic lubrication system, which automatically fully lubricates the guide rails, lead screws, bearings and other parts of the machine tool that need to be lubricated.
5. This machine tool is equipped with Siemens 828D numerical control system, CNC, PLC, operation panel and 6-axis drive control (standard configuration) are all integrated in one unit. This structure can save the hardware interface between the CNC circuit board and the operation panel, thereby greatly improving the durability of the system and making the operation more conveniet.
Main technical specifications:

Maximum workpiece size	Processing range	φ1300~φ3000mm
	Maximum plate thickness	300 mm
Rotary table (c-axis) static pressure	Diameter of rotary table	Ф3000 mm
	T-slot width	36 mm
	load-bearing	40T
	Set minimum indexing unit	0.001°
	C-axis rotation speed	0-1r/min
	C-axis positioning accuracy	8"(Special customization)
	C-axis repeat positioning accuracy	4"(Special customization)
	weight	19T
Headstock	Maximum borehole diameter	Φ70 mm(Carbide drill)
	Maximum tapping diameter	M56
	Maximum speed of spindle	2000r/min
	Spindle taper	BT50
	Spindle motor power	30/45kW
	Maximum torque of spindle ≤ 250r / min	1140/1560Nm
	Variable box	1:1.2/1:4.8
	Distance between spindle end face and rotary table	400-1050mm
	Distance from spindle axis to rotary table center	650-1850mm
Gantry longitudinal movement (x-axis)	Maximum stroke	1200 mm
	X-axis moving speed	0-8m/min
Feed motion of power head (Z axis)	Z-axis stroke	650 mm
	Z-axis fast forward speed	0-8m/min
positioning accuracy	X-axis	0.025mm/ Full stroke
Repeat positioning accuracy	X-axis	0.015mm/ Full stroke
Hydraulic system	Hydraulic pump pressure / flow	6.5MPa /22L/min
	Motor power of hydraulic pump	3kW
Pneumatic system	Air supply pressure	0.5MPa
Cooling system	Cooling mode	Internal cooling + external cooling
	External cooling pump pressure / flow / motor power	0.5MPa/40L/min/1.5 kW
	Internal cooling pump pressure / flow / motor power	3MPa/60L/min/2*4 kW
electrical system	Numerical control system	Siemens 828D
	Number ofC NC axes	3+1
	Total power of motor	about 70kW
Machine tool dimensions	L*W*H	about 6.3×4.7×5m
Machine weight	Host: 20T Hydrostatic turret:19T

Key outsourced components list:

NO	Name	Specifications	Quantity
1	Submersible pump		1
2	Photoelectric edge finder		1
3	inner hexagon spanner		1set
4	Knife handle and broach	Φ20-BT50	1set
5	Paint (for touch up)		2kegs

Note: The above is our fixed supplier. It's subject to be replaced by same quality components of other brand if the above supplier can't supply the components due to any special matter.
Free Accessories list:

NO	Name	Brand	Country
1	Roller linear guide	HIWIN	Taiwan, China
2	Ball screw	NEFF/IF	Germany
3	Ф 2500 rotary table (static pressure)	JIER Tool Machine Group	China
4	Numerical control system	Siemens 828D	Germany
5	Feed servo motor and driver	Siemens	Germany
6	Main motor	Siemens	Germany
7	Grating ruler	FAGOR	Spain
8	Spindle	Kenturn	Taiwan, China
9	Hydraulic valve	ATOS	Italy
10	Oil pump	Justmark	Taiwan, China
11	Automatic lubrication system	BIJUR	USA
12	Cooling pump	Fengchao Pumps	China
13	Button, indicator light and other main electrical components	Schneider	France
14	transmission case	GTP	Taiwan, China

Work Environment:
1).Power supply: 3 phase 5 lines 380±10%V 50±1HZ
2).Compressed air pressure: ≥0.5MPa
3).Temperature: 0-40°C
4).Humidity: ≤75%
Company Profile
Shandong FIN CNC MACHINE CO., LTD. is always focusing on our ultimate goal - to secure and increase our customer's productivity - has made us the leader in China market in the manufacture of machines for processing angle bar, beam channel profiles, steel plates, tubesheet and flanges, mainly serving for fabricating iron towers, steel structure, heat exchangers, boilers, bridges, and trucks.Strong R & D center with 30 engineers team, 24 years of experience from year 1997, 280 staff, plant area about 270,000 sqm., very harsh quality control of every component and the whole machine, about 40 million US dollars sales turnover per year.
FIN CNC machines' market share in China is around 70% and exported to 50+ countries across globe market. All top ranked tower manufacturers, steel structure fabricators and power station makers, bridge/railway manufacturers, truck makers are our clients.
Main products: CNC Angle Line, CNC Beam Drilling Sawing Machine, CNC Plate Drilling Machine, CNC Rail Processing Machine, CNC Tubesheet Flange Drilling Machine, Truck beam plate punching machine, etc..One measure of the outstanding quality of our machines is their longevity: many FIN machines have been in operation for more than 17 years! Many clients are continually placing repeated orders which verified well our machines' perfect quality and reliable performance.

Cooprative Supplier
Product Process Control
Customer Feedback

Sales Network
Our Service
FAQ
1. When can you arrange shipment?
For machines available in stock, the shipment can be arranged within 15 days after getting advance payment or L/C;
For machines non available in stock, the shipment can be arranged with 60 days after getting advance payment or L/C.
2. What can you do if my machines have problems?
1) We can send you free components if machines are in warranty period;
2) 24 hours service on line;
3) We can assign our engineers to serve you if you want.
3. Do you provide machine operation training?
Yes. We can send professional engineers to the working site for machine's installation, commissioning and operation training.
4. Which machine model shall I choose when I purchase from you?
Please share us your material size and your processing request, then we will recommend our machine most suitable and most cost effective for your work demand.
5. What's your machine's market share in China?
Our market share in China is about 70%+, and we've exported to 50+ countries across the globe market, since year 1998.

---
