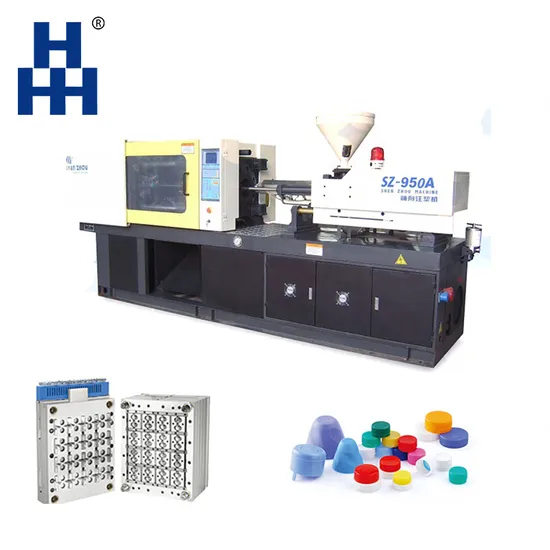

Small Benchtop Plastic Pet Preform and Cap Injection Molding Machine

Product Description

SZ-Series Injection Molding Machine Component List

Name	Brand	Origin
Reversal Hydraulic Valve	YUKEN	JAPAN
Hydraulic Oil Pump	ECKERLE	GERMANY
Hydraulic Motor	ZY	Italy-China
Hydraulic Hose	KIMBERLEY	GERMANY
Sealing Rings	VALQUA	JAPAN
Computer Control System	TECHMATION	TAIWAN
Display Screen	TECHMATION	TAIWAN
Linear Transducer	GEFRAN	ITALY
Limit Switch	OMRON	JAPAN
Proximity Switch	FORTEK	TAIWAN
Solid State Relay	FORTEK	TAIWAN
Contactor	SCHNEIDER	FRANCE
Air-break Switch	SCHNEIDER	FRANCE
Automatic Lubrication	SANLIANG	CHINA
SERVO Driver	HUNTER	TAIWAN
SERVO Motor	PHASE	ITALY

Standard Features of SZ-Series Injection Molding Machine

1	LCD computer control with big display screen
2	Pressure-flow proportional valve.
3	Hard chrome plated high tensile strength steel tie bars
4	Generous space for fitting large moulds
5	Large opening stroke.
6	Two transducers to control Clamping and Injection
7	Four stages of injecting, independent velocity and pressure control.
8	Hydraulic mould height adjustment device.
9	Screw cold-start prevention device.
10	Melt decompression control.
11	Screw back pressure control
12	Multiple hydraulic ejections.
13	Differential area high speed clamping.
14	Centralized lubrication system.
15	Low pressure mould protection device
16	Mechanical safety interlock
17	Double electrical safety interlock
18	Oil return filter

Parameter of Plastic Injection Molding Machine

INJECTION UNIT
ITEM	UNIT	VALUE
SCREW DIAMETER	mm	30	35	40
SCREW L/D RATIO	L/D	24.5	21	18.4
Theoretical Shot Volume	cm^3	113	154	201
SHOW WEIGHT(PS)	g	103	140	183
INJECTION PRESSURE	Mpa	249	183	140
THEORETICAL INJECTION RATE(PS)	g/s	67.5	91.8	120
PLASTICISING CAPACITY	g/s	8.3	12.5	18
SCREW TORQUE	N.m	510
MAX.SCREW ROTATE SPEED	r/min	260
INJECTION STROKE	mm	160
CLAMPING UNIT
ITEM	UNIT	VALUE
MAX.CLAMPING FORCE	KN	950
MAX.OPENING STROKER	mm	340
SPACE BETWEEN TIE BARS	mm	360×360
MOULD HEIGHT	mm	135~380
MAX.DAYLIGHT	mm	720
EJECTOR FORCE	kn	25.4
EJECTOR STROKE	mm	85
EJECTOR QUANTITY	pc	5
OTHER
ITEM	UNIT	VALUE
PUMP MOTOR POWER	KW	11
PUMP PRESSURE	Mpa	16
HEATING POWER	KW	7.3
HEATING ZONE		4
SIZE	m	4.25×1.2×1.8
NET WEIGHT	t	3.2
OIL TANK CAPACITY	L	260
INTERNATIONAL DESIGNATION		950-280

Q & A:
Q1: How long can it be delivered after the order is placed?
If all the ordered goods are in stock, they can be delivered within 10 days after the order is placed;
In case of no inventory of the order goods, the goods can be delivered within 50-120 days after the order is placed.
Q2: What should I do if I find quality problems in the process of using my product?
If you need to replace the parts, we will provide them to you in the first time through international express. You will get new parts in 10-15 days.
Q3: Can I choose to buy equipment through Made-In-China company?
We have a professional international trade team, can provide you with certificate, shipping, customs clearance services, please feel free to buy.
Q4: Does the machine have an English manual and warranty card?
Each machine has a professional English operation manual and warranty card.
In addition, we can provide electronic version of the English manual.
Q5: The delivery time of products without stock is too long for 45 days.
First of all, we will speed production to meet your needs.
In addition, we recommend that you have similar equipment in stock to meet your needs as soon as possible.
Q6: What if I choose the wrong machine?
We have pre-sales engineers with rich professional knowledge. According to your products, we provide the most suitable machines and solutions.

Q7: Who is responsible for the installation and debugging of the machine I purchased?
We the seller are fully responsible to send our engineers within two weeks from the date of the containers arrival to the buyers factory to commissioning the machine and training the staff of the buyer, the buyer should be responsible for a round trip economy ticket, a hotel and any other necessary accommodations for the seller''s engineers, and engineer cost USD 80.00 per day.
Q8: Do you have an aftermarket warranty for your products?
Warranty: General one year for whole injection molding machines.
General one year for other types of whole machines.
All customers that have bought SHENZHOU injection molding machines would be provided with a lifetime repair service of the machines.

---
