Low Frequency Pure Sine Wave on/off Grid Hybrid Solar Power Inverter System 1kw - 12kw Inveters Inbuilt MPPT Controller and Isolation Trasnformer

Product Description

Product Description Low Frequency Solar Power Inverter 1Kw - 12Kw inbuilt Mppt Controller and isolation trasnformer
1: Pure sine wave output (THD< 3%)
2: Build in MPPT solar charge controller 30A - 100A
3: Inbuilt isolation trnsformer and 3 times surge power
4: Can work with air conditioner, microwave, refrigerator and other inductive loads

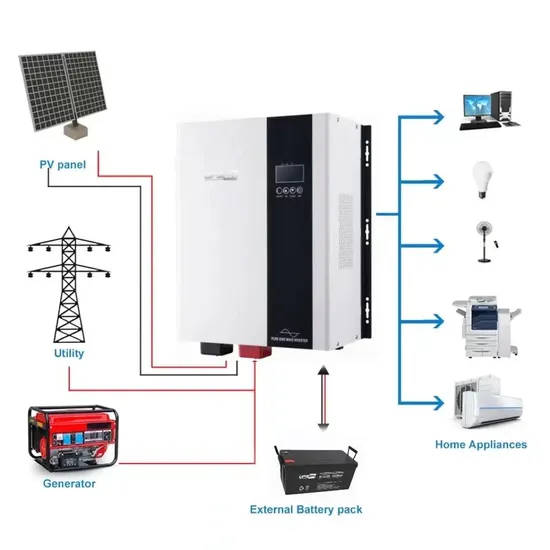

Key Features AC Charging current 0-35A Can choose different types of batteries High-low voltage protection Against overload, short-circuit Protection Over voltage, battery reverse connection(optional) Under-voltage and over-temperature protection Selectable battery priority or utility priority Have UPS function and AC charger function AC Grid priority&battery priority working mode are selectable AC Grid mode: AC Bypass supplies load when AC is normal, battery invert AC Supplies load when AC is Off Battery priority: Battery invert supplies load when battery get full-charged; AC Bypass supplies load When battery low and at the meantime battery get charged from solar controller. It transfers back to Battery invert mode when battery gel full charged. It males full use of solar energy and saves electricity.

Model		W1000 So	W1500 So	W2000 So	W3000 So	W4000 So	W5000 So	W6000 So	W8K So	W10K So	W12K So
Input	Rated capacity	1000W	1500W	2000W	3000W	4000W	5000W	6000W	8KW	10KW	12KW
	peak power	3000W	4500W	6000W	9000W	12000W	15000W	18000W	24KW	30KW	36KW
	Commercial Power range(VAC)	110VAC:73~137 120VAC:80~150
		220VAC:145~275 230VAC:152~288 240VAC:158~300
	Mains input frequency range	45-65HZ
Battery	DC Voltage	12 VDC / 24VDC / 48VDC				48VDC	48VDC / 96VDC				96Vdc
	DC input voltage range	12VDC:10.5-15VDC 24VDC:21-30VDC 48VDC:42-60VDC 96VDC:84-120VDC
Charger	AC charging	0A-35A (set on LCD Panel)
Output	Capable of starting electric motor	0.5HP		1HP	1.5HP	2HP			3HP
	AVR voltage range (VAC)	110 / 120 / 220 / 230 / 240±10%(Auto-sensing)
	Battery over voltage protection	12VDC:16.7VDC 24VDC:33.4V 48VDC:66.8V 96VDC:134V
	Battery over voltage alarm	12VDC:15VDC 24VDC:30V 48VDC:60V 96VDC:120V
	Battery under voltage protection	12VDC:10.5VDC 24VDC:21V 48VDC:42V 96VDC:84V
	Battery low voltage protection	12VDC:10VDC 24VDC:20V 48VDC:40V 96VDC:80V
	Transfer time	Typical:5ms(Including detection time)
	Temperature protection	≥85ºC alarm ≥90ºC machine shut off
	overload	IPS automatically shut down if overload exceeds 120% of normal value for 10 seconds, IPS automatically resume work if overload comes to rated load.
	Waveform	Pure sine wave
	Frequency	Commercial power supply: shared frequency with the commercial inversion state:60/50±0.5
	Output frequency range	Tracking automatically
	(electric supply mode)
Solar MPPT Controller	MPPT Controller	30A			60A				60A or 100A		100A
	Max PV Input Power	360W / 720W / 1440W			48Vdc: 2880W / 96Vdc: 5760W				48Vdc:2880W / 4800W		9600W
									/96Vdc:5760W / 9600W
	Max PV Input Open Circuit Voltage (Voc)	12/24/48Vdc Max: 190Vdc; 96Vdc Max 230Vdc
	Mppt Working Voltage Range	12V: 20-80Vdc, 24: 37-105Vdc, 48V: 72-160Vdc, 96V: 144-230Vdc
Temperature	Operating Temperature	0ºC~70ºC
	Thermal method	Cooling fan in intelligent control≤42ºC fan rotates slowly to ≥45ºC fan rotates fast
Appearance	External Size(mm) (L*W*H)	460*230*200mm				650*270*200mm			763*315*248mm
	Gross Size(mm) (L*W*H)	530*330*255mm				740*350*275mm			840*405*320mm
	Net weight(kg)	17	21	22	29	37	39	43	60	63	65
	Gross weight(kg)	19	22	24	31	40	32	45	64	66	68
*Specification is subject to change without prior notice.

Detailed Photos
Company Profile Shenzhen UPSEN Electronic CO., Ltd. locates in south of China, Shenzhen City, close to Pearl of the Orient HK, with beautiful environment and convenient transport.
We are a private high-tech enterprise integrating researching & development, production & operation and technical services as a whole, which is specialized in Electric, Electronic and Energy fields for a long time. Our main products are UPS Power, Inverter Power, Battery Power, Solar&Wind Power. We are dedicated to offer quality power and power solution for Data-center,Telecom, Bank, Hospital, Transportation, Industry, Security, and civil & office area etc. Moreover, we have mastered the core technology of power products through our independent research, we are one of few domestic enterprises which can meet the customers' customized requirements, and provide professional power solutions.
We already past ISO9001 international quality system certification, and established a complete quality system ranging from material source, process, assembling to testing. All our products are with CE Certificate, which exported to more than 30 countries and areas, like Australia, Europe, Africa, North America, South America, the Middle East, central Asia, southeast Asia etc.
We will always offer excellent quality and products to customers. Hope to make Integrity and Double-Win business with you, and to be your professional power supplier and solve your any power problems.We are sure UPSEN can achieve more successes with our efforts and your support.
Our Advantages 1: High working efficiency and production, to be sure compeitive price
2: Strict material quality control, to be sure all materials meet CE standards
3: Independent test equipment suitable for most international standard tests

4:Each process been tested before assembling which can assure low fault rate, and improve shortages
5: Professional R&D Engineers with average bachelor degree
6: Products average upgrading every 1.5~2 years
7: 1% free unit or 2% free parts for timely warranty service
8: Free technical support before and after sales
FAQ Q1. What is packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
We can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 7-20 days after receiving your advance payment.
The specific delivery time depends on the items and the quantity of your order.
Q5. Can you OEM and ODM Service?
A: Yes, we can provide free OEM Service, and ODM Service is available for volume order too.
Q6. Do you test all your goods before delivery?
A: Yes, all our products have more than 6~8 hours for againg, and strict test before dispatch
Q7. Do you have any MOQ limit?
A: Low MOQ, 5 pieces for sample checking is available.
Q8. Can I have a sample order?
A: Yes, sample order is acceptable to test and check quality for the first cooperation
Q9. How to proceed with an order?
A: Initially, let us know your requirements or application. Besides, We quote according to your requirements or our suggestions. Thirdly, customers confirm the samples and places deposit for formal order. Finally, We arrange production.

---
