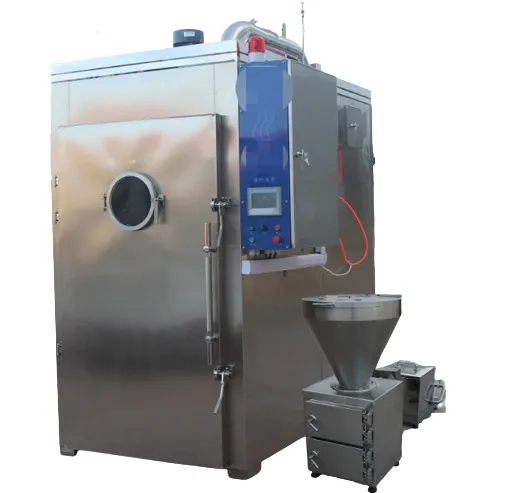

Industrial Smoker Oven Meat Sausage Smokehouse Smoke Oven

Product Description

Meat Smoking Machine/ Smokehouse / Sausage Making Machine/Fish Smoke Machine/ food machine smoker

Product Description
SMOKEHOUSE Equipment introduction:
1. Functions: cooking, drying (drying), smoking, cleaning and safety protection.
2. Heating methods: electric heating and steam heating.
3. Box type: channel type, parallel type (single-door bicycle, double-door double-car, double-door multi-car, etc.).
smoker Computer automatically controls the large screen man-machine interface, and displays various parameters on one screen in order to monitor the running state; It can realize remote control and print formula, temperature and humidity curves; It can store 100 process recipes.
smoker Computer automatically controls the large screen man-machine interface, and displays various parameters on one screen in order to monitor the running state; It can realize remote control and print formula, temperature and humidity curves; It can store 100 process recipes.
The Sausage meat smoking machine 's material and the structure of the heat preservation box body take the bicycle as a unit, which can be assembled into different combinations.Food Smoker Made of high quality SUS304 stainless steel wire drawing plate. The thermal insulation layer is made of imported polyurethane thermal insulation material, which can resist high temperature and high pressure casting, and has excellent thermal insulation performance. Can be equipped with an efficient online cleaning system. The design of door lock, hinge and sealing strip is unique, with tight bees and convenient operation. The BBQ smoker doors of raw and cooked areas are interlocked and isolated, meeting HACCP requirements.
Detailed Photos

The smoker oven smoking generation system of split sugar stove can smoke traditional Chinese products, produce special smoke flavor, and the color can be controlled, and the deepest one can be purplish red. The simultaneous use of two smoking systems can produce unique smoke aroma and color. The wood particle smoke generation system on the door adopts the world's advanced internal circulation smoke generation technology, which can generate smoke in low oxygen state, shorten the length of flue, reduce energy consumption and reduce the occupied area of equipment.
The unique air circulation system effectively ensures the consistency of temperature and humidity in the process of baking, cooking, drying and smoking, thus ensuring the uniform coloring and beautiful color of the product. Smoke system The external smoke system of wood particles and sawdust not only makes the products produce fruit and wood aroma, but also makes the products smoke into golden color from shallow to deep.
Product Parameters

Specifications	smoker Model
	ZX-250	ZX-500	ZX-500 (DualChannel)	ZX-1000
Capacity (kg/Time)	250	500	500	1000
Power (KW)	7.5	13.5	13.5	27
HP Steam Pressure (Mpa)	0.4~0.6	0.4~0.6	0.4~0.6	0.4~0.6
LP Steam Pressure (Mpa)	0.25~0.28	0.25~0.28	0.25~0.28	0.25~0.28
LP/HP Temperature (ºC)	110	110	110	110
Rated Voltage (V)	380	380	380	380
Skip-car Dimensions (mm)	1000*980*1880	1000*980*1880	1000*980*1880	1000*980*1880
Weight (Kg)	2000	2100	2100	3400
Dimensions (mm)	1680*2165*3280	2500*2300*3280	2500*2300*3280	5000*2300*3280

Certifications
WorkShop
FAQ
our Services
1)Design and manufacture the equipment
2)inspect and running all machine before dispatch.
3)Engineers avaliable to service machinery overseas.
4)one year quality guarantee.
5)24 hours technical support by e-mail.
6)English or need language software,user manual.
7)whether you need one machine or a complete line,we design and build machinery that delivers the most
reliable and effcient performance for your products.
FAQ:
1)Question :what is the choice of installation mode for foreign customers?
Answer:we can provinde the video and user manual of the installation mode,
if your need us to send someone to install it,we can provide it .
2)Do your supply factory visits?
Answer:We welcome the customer to visit us,your can make an appointment with us in advance.
3)Question:our the comapny is a direct manufacturer or trading company.
Answer:our company is a direct manufacturer,No middleman make the difference.we can provide your with
best quality product at the right price.
4)What is the payment term?
Answer:we support T/T,L/C.
5)Question:How do we choose the right model for us?
Answer:When you tell me your demand,we will help yourr to choose the right model.
