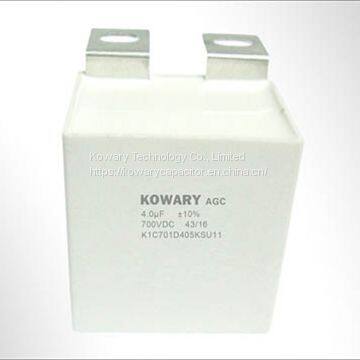

Product Details
Product Description
Product Description
■GENERAL TECHNICAL CHARACTERISTICS
Reference standards IEC 61071
Dielectric Polypropylene film
Construction Dry construction, Non-inductive type
Construction Extended metallized film with internal series connection and metallized film
Case Solvent resistant plastic case. Flammability class UL94 V-0.
Leads Tinned copper lugs for screw fixing or soldering on PCBS
Dissipation factor ≤1.4×10-3 Measured at 1000 Hz and 20±5℃
Life expectancy 100,000 hours at UNDC and 70 ℃(Hot-spot temperature)
Dielectric strength 2×UNDC applied to 10s at 20±5 ℃
Test voltage terminal to case 3KVAC/50Hz for 60s
Insulation resistance(IR*CN) ≥ 5000s but need not exceed 30GΩ, after 1 minute of electrification at 100Vdc (20±5℃)
■ELECTRICAL SPECIFICATION Unit: mm
Part
Number
| Cap
(μF)
| Dimension
| Du/dt
(v/μs)
| Ipeak
(A)
| Imax @ 60℃ @10KHz (A)
| ESR @100KHz (mΩ)
|
L
| B
| H
|
UNDC 330Vdc, Urms 200Vac, Us 500Vdc
|
K1C331D685KS##***
| 6.8
| 42.5
| 24.5
| 27.5
| 30
| 204
| 16.5
| 2.8
|
K1C331D489KS##***
| 15
| 42.5
| 33.5
| 35.5
| 30
| 450
| 24.0
| 2.0
|
K1C331D206KS##***
| 20
| 42.5
| 33.0
| 45.0
| 30
| 600
| 27.0
| 1.8
|
K1C331D226KS##***
| 22
| 42.5
| 33.0
| 45.0
| 30
| 660
| 27.5
| 1.7
|
K1C331D256KS##***
| 25
| 57.5
| 30.0
| 45.0
| 17
| 425
| 23.5
| 2.8
|
K1C331D306KS##***
| 30
| 57.5
| 30.0
| 45.0
| 17
| 510
| 25.0
| 2.6
|
K1C331D356KS##***
| 35
| 57.5
| 35.0
| 50.0
| 17
| 595
| 30.0
| 2.3
|
K1C331D406KS##***
| 40
| 57.5
| 35.0
| 50.0
| 17
| 680
| 32.0
| 2.1
|
UNDC 400Vdc, Urms 250Vac, Us 600Vdc
|
K1C41D405KS##***
| 4.0
| 42.5
| 24.5
| 27.5
| 40
| 160
| 15.5
| 3.2
|
K1C401D505KS##***
| 5.0
| 42.5
| 24.5
| 27.5
| 40
| 200
| 17.0
| 2.8
|
K1C401D685KS##***
| 6.8
| 42.5
| 33.5
| 35.5
| 40
| 272
| 22.0
| 2.4
|
K1C401D106KS##***
| 10
| 42.5
| 33.5
| 35.5
| 40
| 400
| 24.0
| 2.0
|
K1C401D1255KS##***
| 12.5
| 42.5
| 33.0
| 45.0
| 40
| 500
| 27.0
| 1.9
|
K1C401D156KS##***
| 15
| 42.5
| 33.0
| 45.0
| 40
| 600
| 28.0
| 1.8
|
K1C401D206KS##***
| 20
| 57.5
| 30.0
| 45.0
| 20
| 400
| 25.0
| 2.8
|
K1C401D226KS##***
| 22
| 57.5
| 35.0
| 50.0
| 20
| 440
| 26.5
| 2.7
|
K1C401D256KS##***
| 25
| 57.5
| 35.0
| 50.0
| 20
| 500
| 28.0
| 2.5
|
UNDC 600Vdc, Urms 330Vac, Us 800Vdc
|
K1C601D255KS##***
| 2.5
| 42.5
| 24.5
| 27.5
| 55
| 137
| 14.5
| 3.8
|
K1C601D305KS##***
| 3.0
| 42.5
| 24.5
| 27.5
| 55
| 165
| 15.0
| 3.4
|
K1C601D335KS##***
| 3.3
| 42.5
| 24.5
| 27.5
| 55
| 182
| 15.5
| 3.3
|
K1C601D405KS##***
| 4.0
| 42.5
| 33.5
| 35.5
| 55
| 220
| 21.0
| 2.6
|
K1C601D475KS##***
| 4.7
| 42.5
| 33.5
| 35.5
| 55
| 259
| 22.0
| 2.4
|
K1C601D505KS##***
| 5.0
| 42.5
| 33.5
| 35.5
| 55
| 275
| 22.5
| 2.4
|
K1C601D685KS##***
| 6.8
| 42.5
| 33.0
| 45.0
| 55
| 374
| 25.0
| 2.2
|
K1C601D905KS##***
| 9.0
| 42.5
| 33.0
| 45.0
| 55
| 495
| 27.0
| 1.9
|
K1C601D106KS##***
| 10
| 57.5
| 30.0
| 45.0
| 30
| 300
| 22.0
| 3.7
|
K1C601D1255KS##***
| 12.5
| 57.5
| 35.0
| 50.0
| 30
| 375
| 24.0
| 3.4
|
K1C601D156KS##***
| 15
| 57.5
| 35.0
| 50.0
| 30
| 450
| 25.5
| 3.0
|
UNDC 700Vdc, Urms 400Vac, Us 1000Vdc
|
K1C701D155KS##***
| 1.5
| 42.5
| 24.5
| 27.5
| 70
| 105
| 13.5
| 4.6
|
K1C701D205KS##***
| 2.0
| 42.5
| 24.5
| 27.5
| 70
| 140
| 14.5
| 3.8
|
K1C701D225KS##***
| 2.2
| 42.5
| 33.5
| 35.5
| 70
| 175
| 19.0
| 3.3
|
K1C701D305KS##***
| 3.0
| 42.5
| 33.5
| 35.5
| 70
| 210
| 20.0
| 3.0
|
K1C701D335KS##***
| 3.3
| 42.5
| 33.5
| 35.5
| 70
| 231
| 20.5
| 2.9
|
K1C701D405KS##***
| 4.0
| 42.5
| 33.0
| 45.0
| 70
| 280
| 23.5
| 2.5
|
K1C701D475KS##***
| 4.7
| 42.5
| 33.0
| 45.0
| 70
| 329
| 25.0
| 2.2
|
K1C701D505KS##***
| 5.0
| 42.5
| 33.0
| 45.0
| 70
| 350
| 25.5
| 2.9
|
K1C701D685KS##***
| 6.8
| 57.5
| 30.0
| 45.0
| 40
| 272
| 21.5
| 3.8
|
K1C701D805KS##***
| 8.0
| 57.5
| 35.0
| 50.0
| 40
| 320
| 24.0
| 3.5
|
K1C701D905KS##***
| 9.0
| 57.5
| 35.0
| 50.0
| 40
| 360
| 25.0
| 3.2
|
Remark: 1. ## Lug style and P2; *** Internal code.
2. Customization for special specification and requirement is available.
>>
