Basic Info.
Model NO.
DN(B)-100, DN(B)-160, DN(B)-200, DN(B)-250
Electrode Stroke
Vertical
Electric Current
DC Shock Wave
Conductive Way
Both-Sided
Welding Spot Number
Single
Rated Capacity
100-250kVA
Machine Type
Resistance Welding Machine
Function
Cooper Stripes Welding
Welding Material
Alloy Metal Aluminum Stainless Steel
After Warranty Service
Video Technical Support, Online Support and Spare
After-Sales Service Provided
Free Spare Parts, Field Installation, Commissionin
Production Capacity
100sets/Month
Packaging & Delivery
Package Size
150.00cm * 100.00cm * 230.00cm
Package Gross Weight
750.000kg
Product Description
ChengDu Xinwei is one of the leading welding equipment manufacturer in china, Specialized in manufacturing and provide customers with a complete set of welding solutions.Owning a R&D team of more than 20 engineers. and a 18000 sq.m factory , which guarantees that we can offer customers the most professional welding advice and after-sales service. And we have our own overseas technical service teams in many countries in Southeast Asia and South America to provide customers with on-site installation and maintenance services.(Please contact us to ask if there is a technical team in your country)

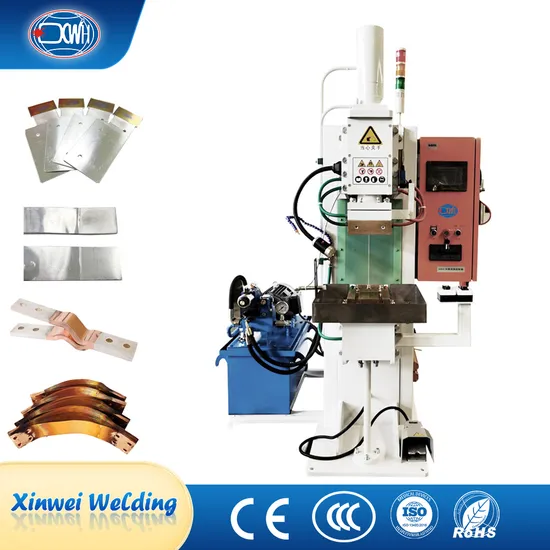

Product Description Diffusion welding machine is a kind of welding equipment that can closely fit the weldment under certain temperature and pressure for a period of time, so that the atoms between the contact surfaces can diffuse to form a connection. At present, it is mainly used for welding copper strip, copper foil soft connection, and aluminum strip, aluminum foil soft connection.
Product Parameters
| Items \ Models | DN(B)-100 | DN(B)-160 | DN(B)-200 | DN(B)-250 |
| Rated power (KVA) | 100 | 160 | 200 | 250 |
| Power input(V) | 3φAC 380V | 3φAC 380V | 3φAC 380V | 3φAC 380V |
| Max. short circuit current (KA) | 30 | 35 | 40 | 45 |
| Duty cycle(%) | 50 | 50 | 50 | 50 |
| Max. force(N) | 6000 | 6000 | 10000 | 15000 |
| Electrode length( MM) | 450 | 450 | 450 | 500 |
| Working stroke( MM) | 80 | 80 | 80 | 80 |
| Cooling consumption(L/min) | 20 | 20 | 20 | 20 |
| Max. welding capacity(MM) | 3.0+3.0 | 4.0+4.0 | 5.0+5.0 | 6.0+6.0 |
Main Features 1. Simple operation, no need for any form of flux, reduce operating costs
2. Long service life, high pressure, and strong stability performance
3. Fast welding speed, good welding effect, and sturdy and stable finished product quality
4. Applied to most metal materials, the welding effect will be better, especially in welding metals with high thermal conductivity such as aluminum, aluminum alloys, and copper, which have better results and more reliable quality. Detailed Photos
