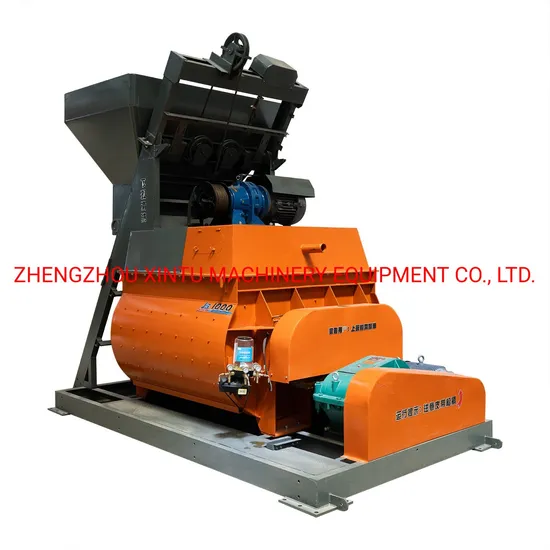

Twin Shaft Js1000 1m3 Volume Cement Mixer

Product Description

Brief Introduction of Twin Shaft Concrete Mixer:
This JS series twin shaft concrete mixer is compulsory type with main components of feeding system(skip hopper), mixing bowl, discharging system, water supply system and electrical system. It is widely used for small or medium scale concrete batching plant to produce commodity concrete.
Features & Benefits of Twin Shaft Concrete Mixer: 1.The high hardness Mn-steel makes the liner and blade have long working time.
2.With the new designed mixing system, it can work more steady and efficiency.
3. Easy for operating & maintaining, saving more cost.
4. Discharge height can us special designed.
parameters of bucket type twin shaft Concrete Mixer:

Parameter Model		JS500	JS750	JS1000	JS1500
Item
Discharge volume		500L	750L	1000L	1500L
Charging volume		800L	1200L	1600L	2400L
Theoretical capacity		≥25m3	≥35m3	≥50m3	≥75m3
Aggregate sizes		≤60/80mm	≤60/80m	≤60/80mm	≤60/80mm
Working circle		60s	60s	60s	60s
Mixing blade	Speed	35r/min	30.5r/min	25.5r/min	23r/min
	Quantity	2×7	2×8	2×8	2×9
Mixing motor	Model	Y180M-4	Y200L-4	Y225S-4	Y225M-4
	Power	18.5 kw	30 kw	37 kw	45 kw
Lifting motor	Model	YEZ132S-4	YEZ132M-4	YEZ160L-4	YZE180M-4
	Power	5.5 kw	7.5 kw	11 kw	18.5 kw
Pump motor	Model	50DWB20-8A	65DWB35-5	KQW65-100	KQW65-100
	Power	0.75 kw	1.1 kw	3 kw	3 kw
Weight		1500kg	6150kg	9880kg	10960kg
Dimensions (L x W x H)		3030x2300x2680 mm	4550x2250x2450 mm	4640x2250x2250 mm	5058x2250x2440 mm

This efficient machine is widely applied in all kinds of large, middle, and prefabricated concrete plants, highways, bridge project, water conservancy, wharf, etc. It can work together with the tilting cart.

---
